Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP storage compartment. Refer to Storage Compartment Replacement - IP  .
  2. Disconnect the lever rod (2) from the handle.
  3. Remove the clip (3) that secures the IP compartment handle to the door.
  4. Remove the handle assembly from the door.

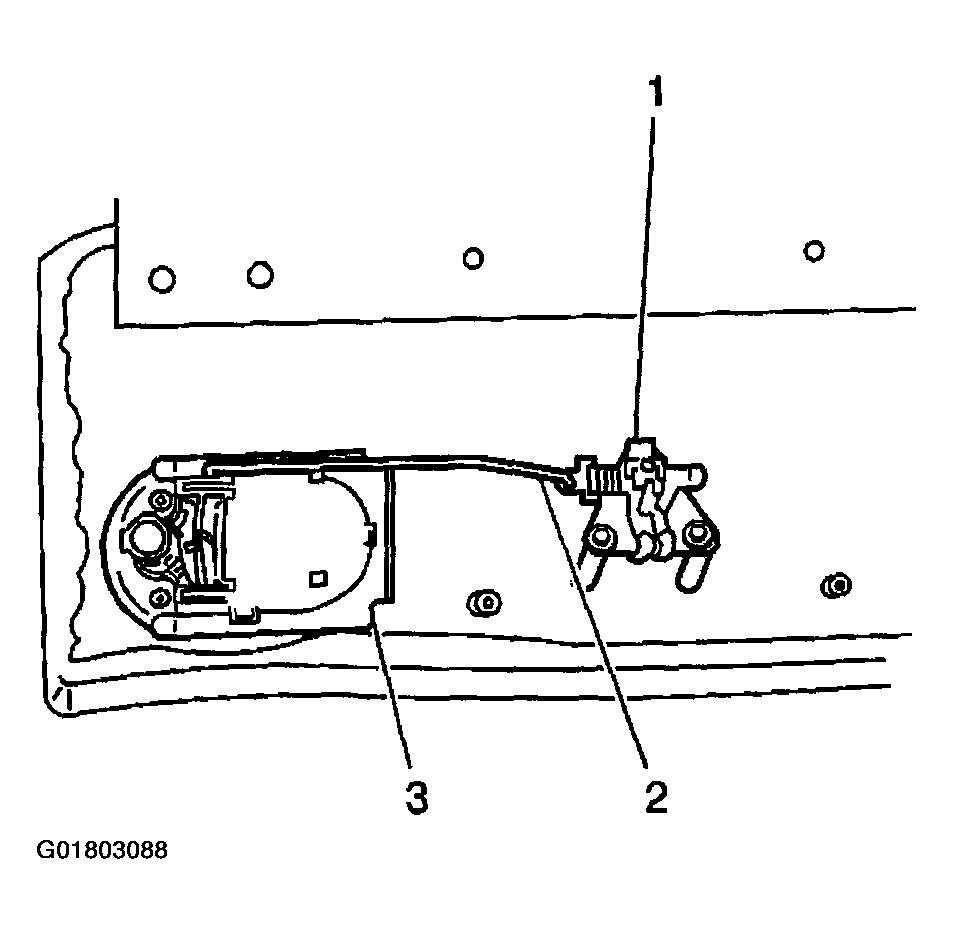

    Fig 1: Removing IP Compartment Handle
    G01803088Courtesy of GENERAL MOTORS CORP.
