Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the IP compartment handle and insert the clip (3).
  2. Install the lever rod (2) to the handle.
  3. Install the IP storage compartment. Refer to Storage Compartment Replacement - IP  .

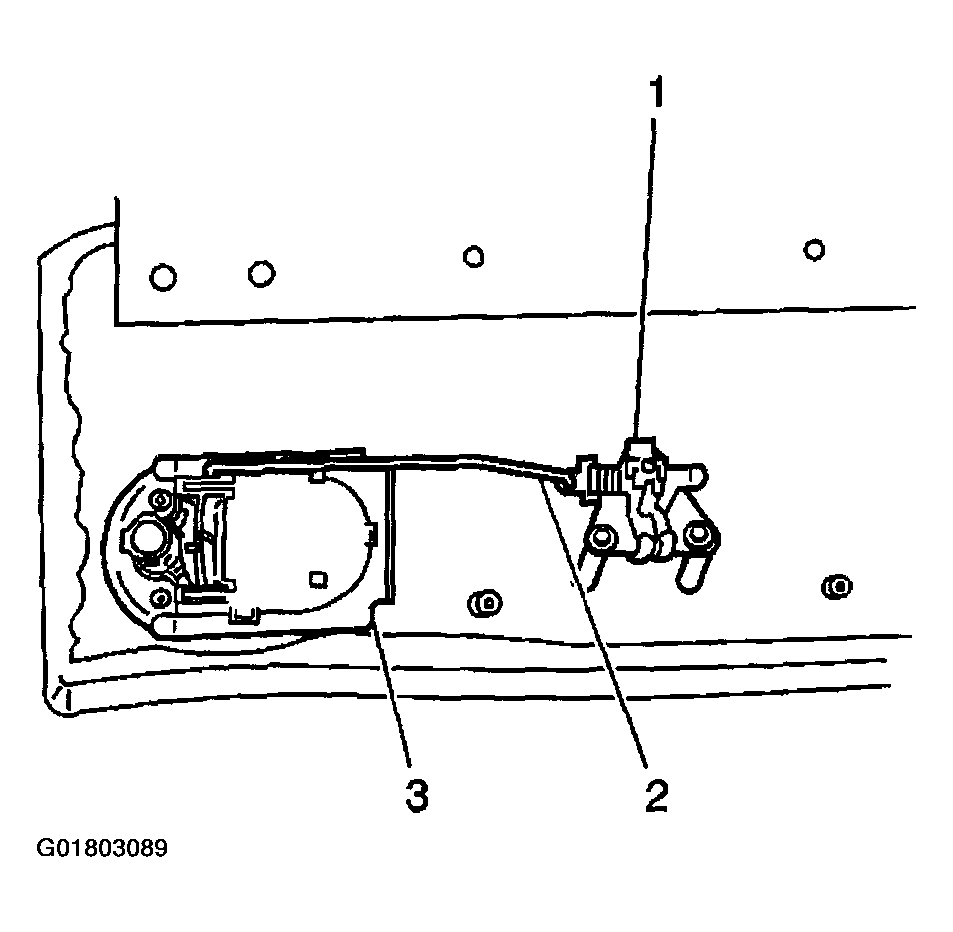

    Fig 1: Installing IP Compartment Handle
    G01803089Courtesy of GENERAL MOTORS CORP.
