Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Line up the clips on the DIC to the holes in the IP and press forward to engage.
  2. Install the IP trim plate bezel. Refer to Trim Plate Bezel Replacement - IP Cluster  .

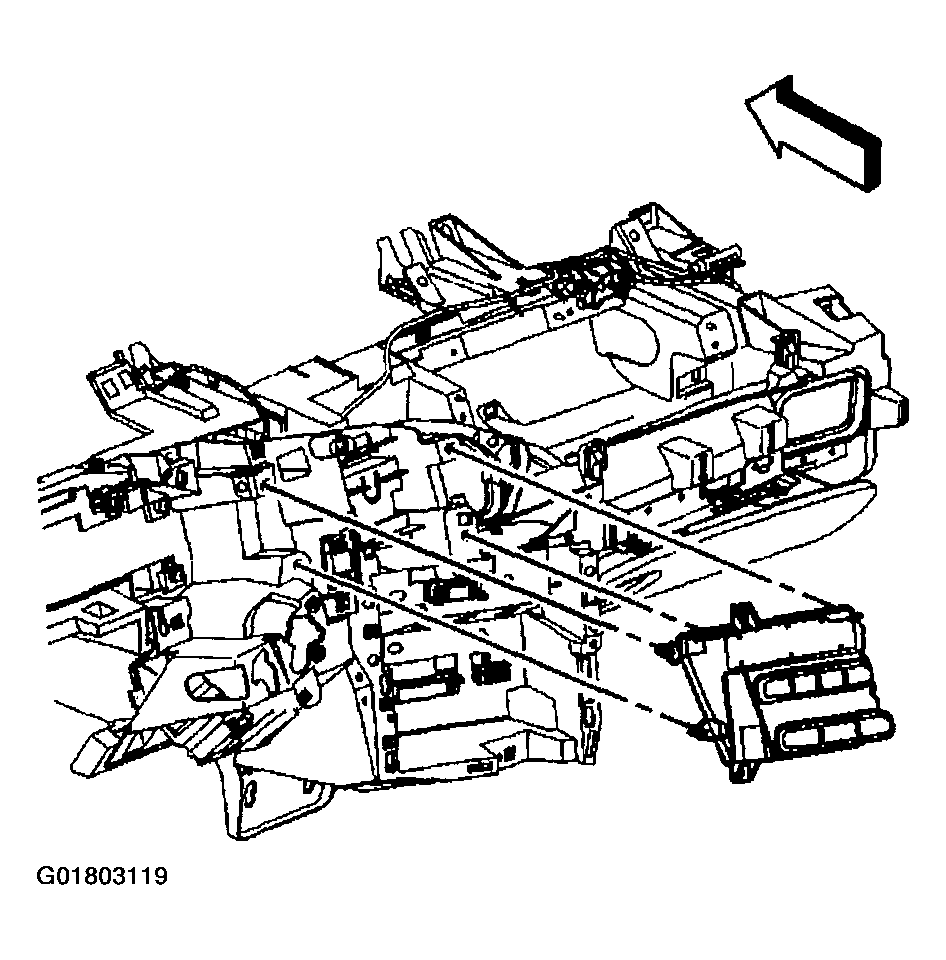

    Fig 1: Installing Driver Information Center
    G01803119Courtesy of GENERAL MOTORS CORP.
