Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the defroster grille (1) by carefully prying upward to release the retainers.
  2. Turn the sunload and twilight sentinel sensor (2) 1/4 turn clockwise in order to remove from the defroster grille.

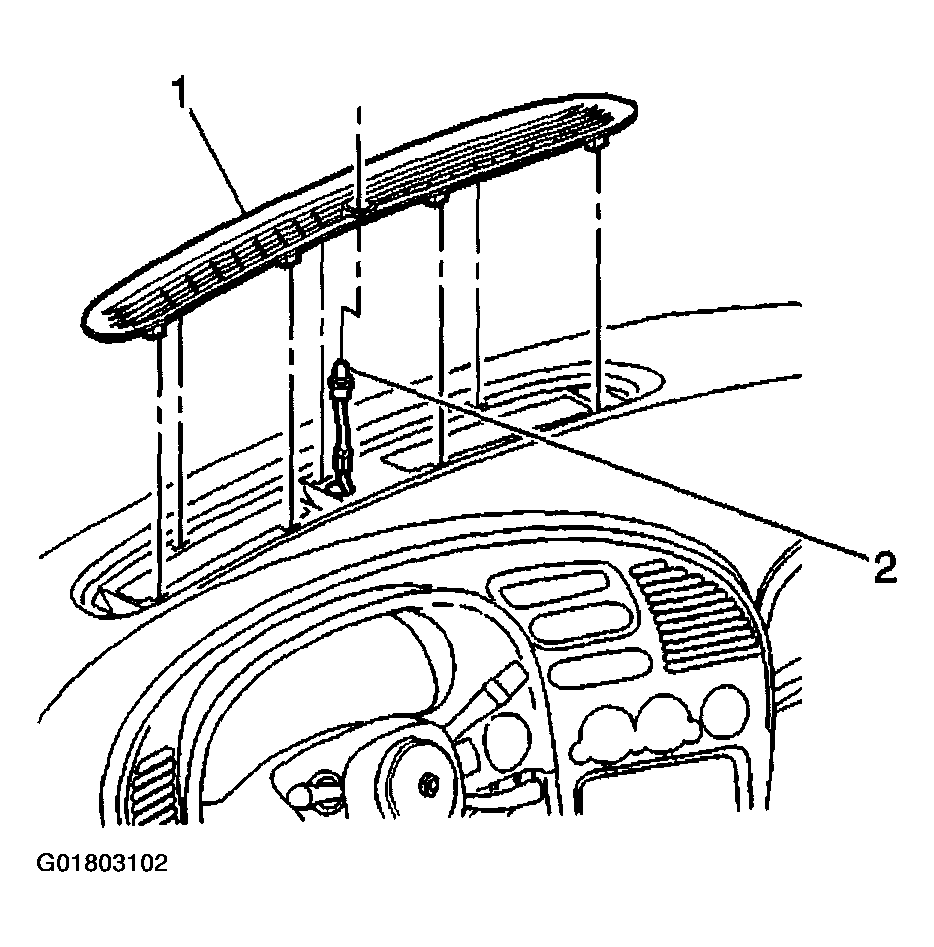

    Fig 1: Removing Defroster Grille
    G01803102Courtesy of GENERAL MOTORS CORP.
