Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the sunload and twilight sentinel sensor (2) to the defroster grille (1) by turning 1/4 turn counter clockwise.
  2. Position the defroster grille (1) with the opening in the IP trim pad.
  3. Install the defroster grille (1) to IP trim pad by pressing down until the retaining clips engage, securing the grille to the IP.

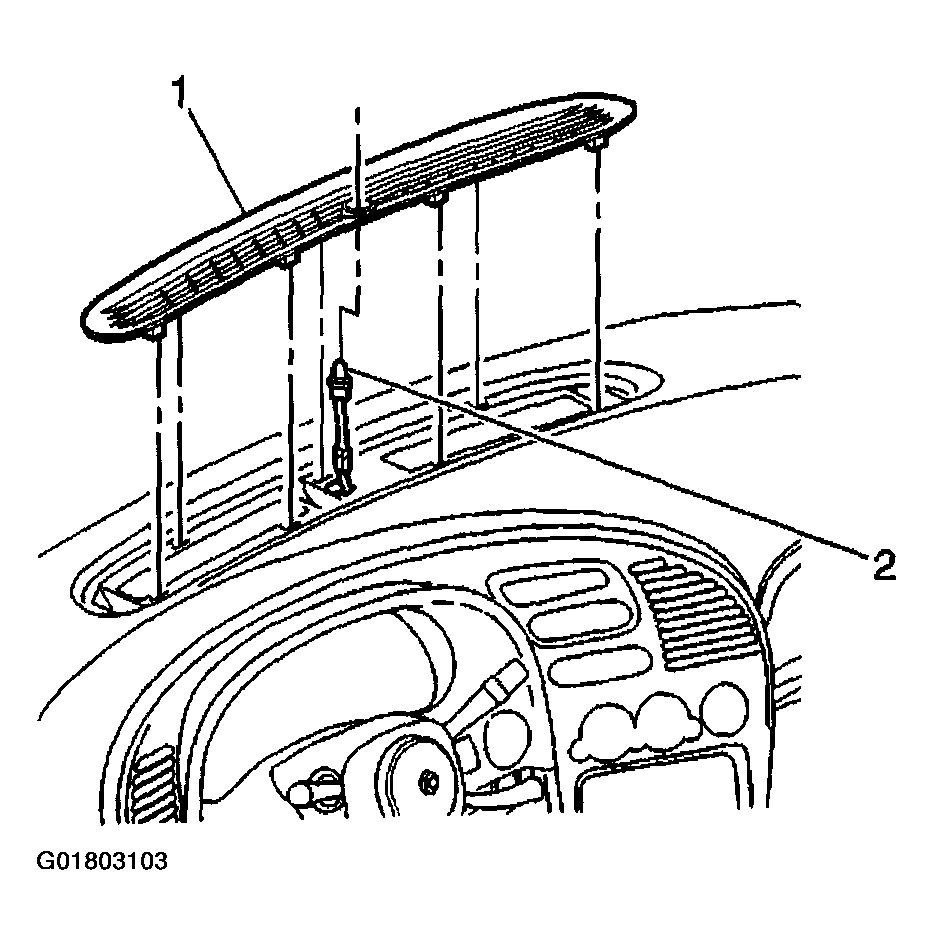

    Fig 1: Installing Defroster Grille
    G01803103Courtesy of GENERAL MOTORS CORP.
