Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right IP accessory trim panel. Refer to Trim Plate Replacement - IP Accessory Right  .

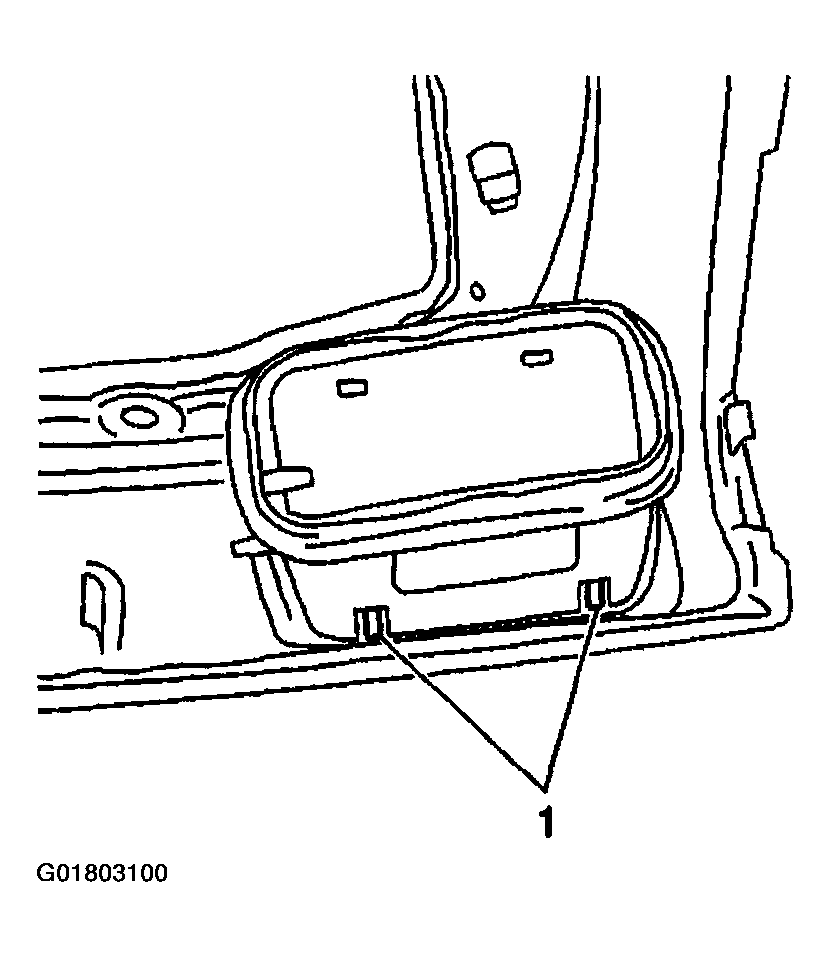

  2. Depress the retaining tabs (1) in order to remove the right air deflector.
    Fig 1: Removing Right Air Deflector
    G01803100Courtesy of GENERAL MOTORS CORP.
