Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air deflector until the retaining tabs (1) are seated into the trim panel.
  2. Install the right IP accessory trim panel. Refer to Trim Plate Replacement - IP Accessory Right  .

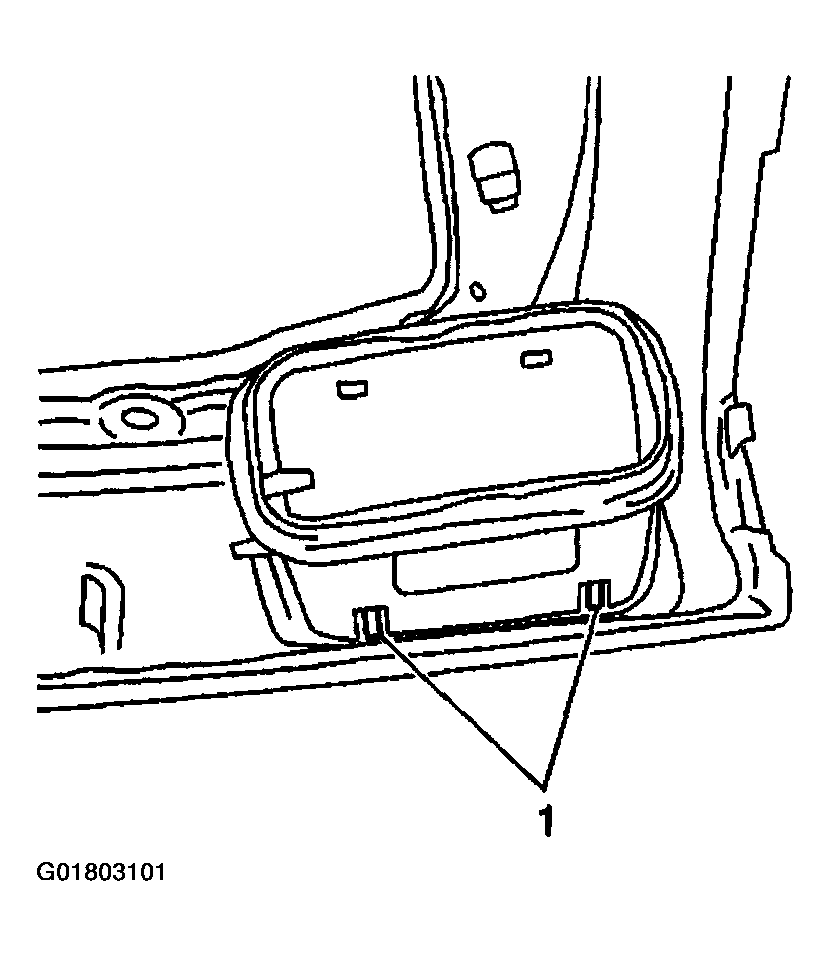

    Fig 1: Installing Right Air Deflector
    G01803101Courtesy of GENERAL MOTORS CORP.
