Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left IP outer trim cover. Refer to Instrument Panel (IP) Outer Trim Cover Replacement  .
  2. Remove the left air deflector by pushing from the rear and pulling out from the IP cluster trim plate.

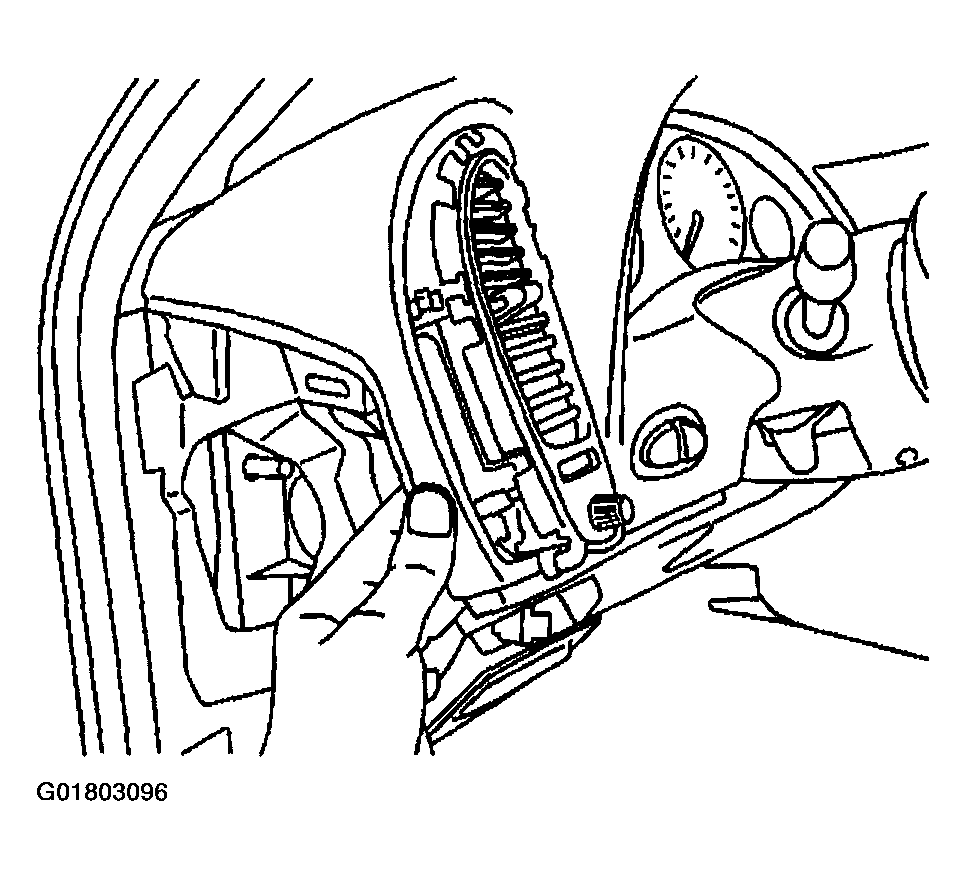

    Fig 1: Removing Left Air Deflector
    G01803096Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the dimmer switch.

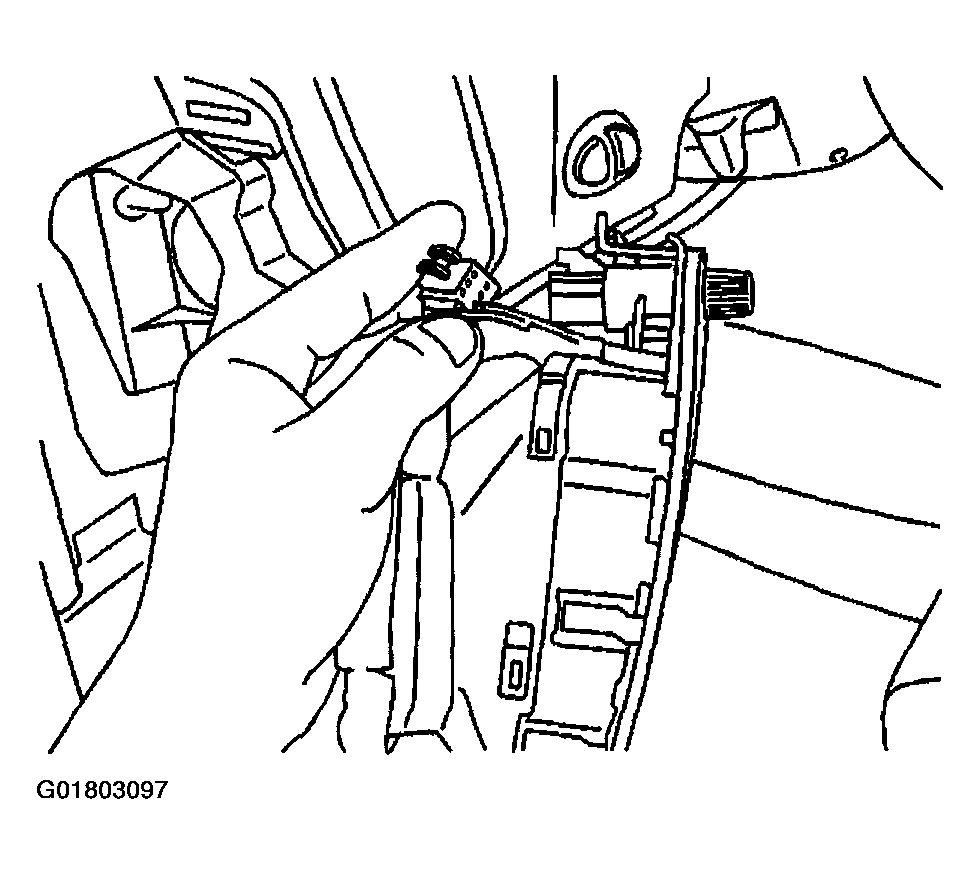

    Fig 2: Disconnecting Dimmer Switch Electrical Connector
    G01803097Courtesy of GENERAL MOTORS CORP.
