Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the cup holder and fasteners (1).

    Tighten

    Tighten the fasteners to 1.4 N.m (12 in lbs).

  2. Install the console trim plate. Refer to Trim Plate Replacement - Console  .

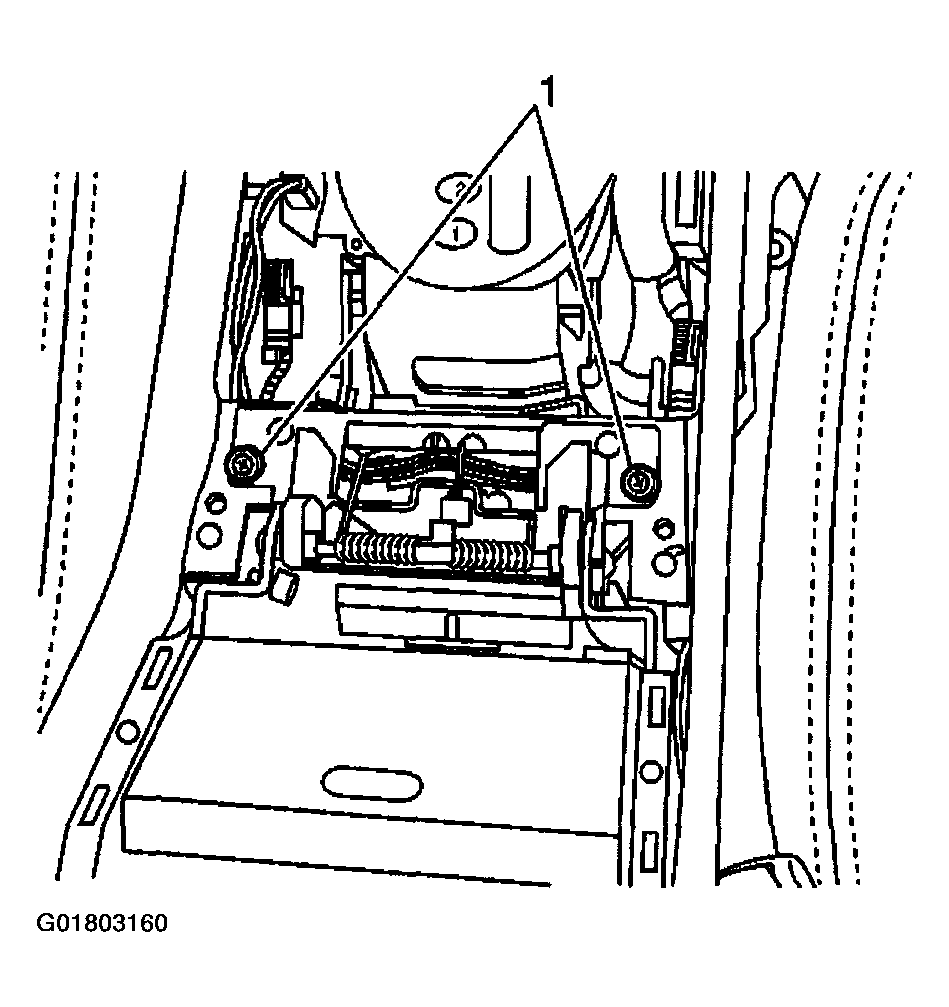

    Fig 1: Installing Cup Holder
    G01803160Courtesy of GENERAL MOTORS CORP.
