Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out at the rear of the panel in order to disengage the clip.
  2. Remove the panel by sliding rearward in vehicle.

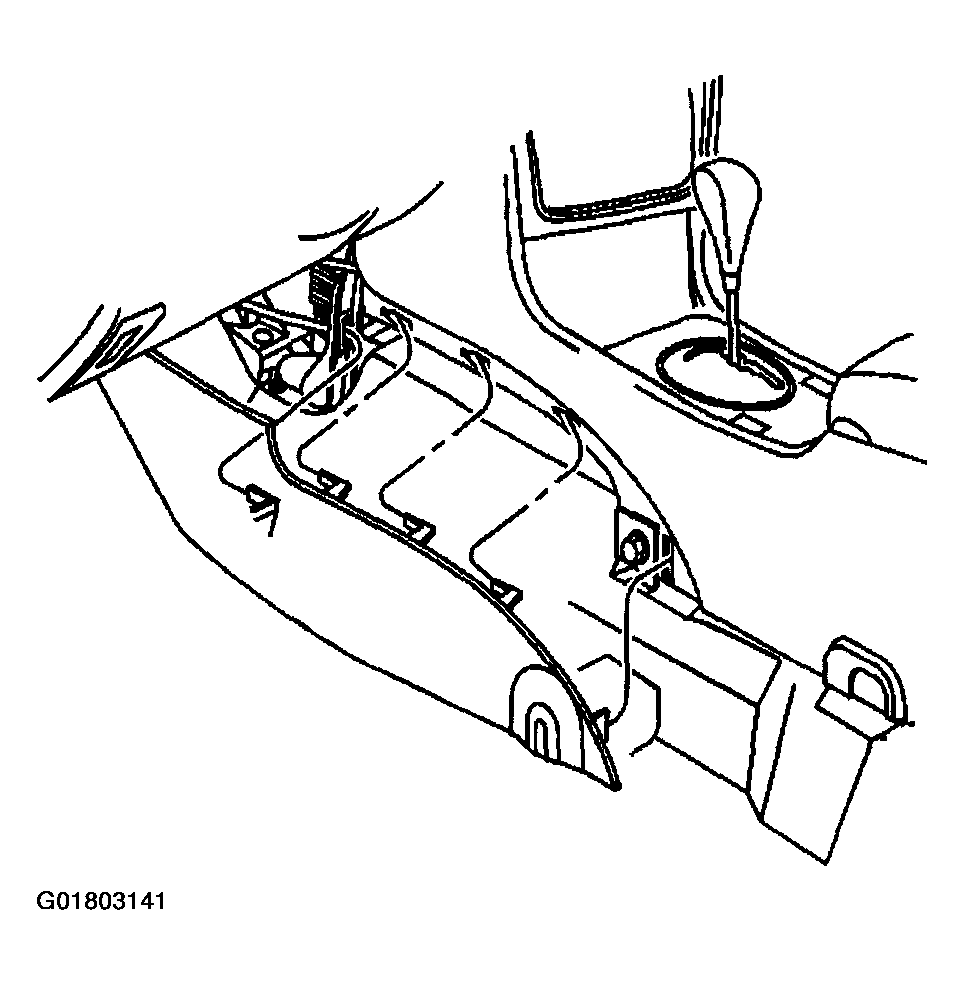

    Fig 1: Removing Left Console Trim Panel
    G01803141Courtesy of GENERAL MOTORS CORP.
