Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the cigar lighter.
  2. Install the compartment into the IP by sliding forward into the IP.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the compartment to IP fasteners.

    Tighten

    Tighten the fasteners to 1.4 N.m (12 in lbs).

  4. Install the console trim plate. Refer to Trim Plate Replacement - Console  .
  5. Install the IP center trim panel. Refer to Trim Panel Replacement - IP Center  .

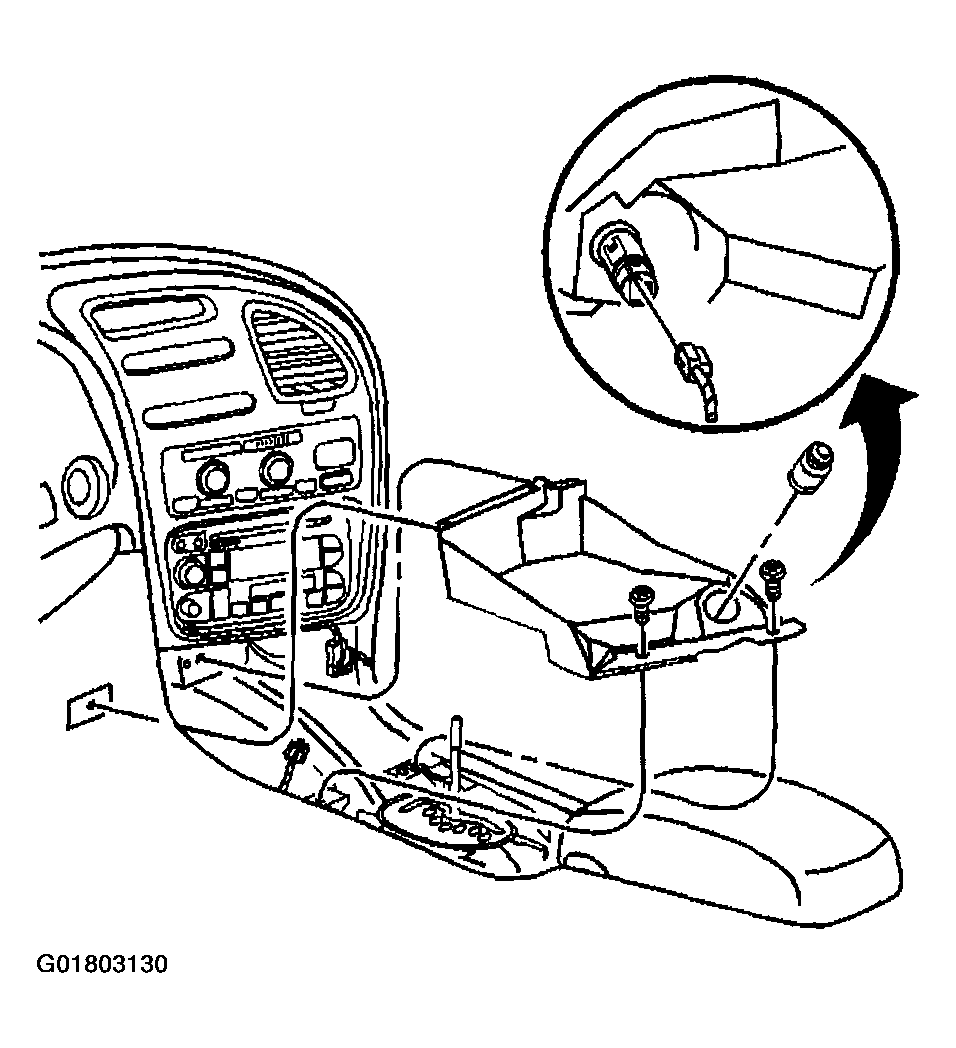

    Fig 1: Installing Console Tray Insert
    G01803130Courtesy of GENERAL MOTORS CORP.
