Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the storage bin into the console.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fasteners (1) to the storage bin.

    Tighten

    Tighten the fasteners to 1.4 N.m (12 in lbs).

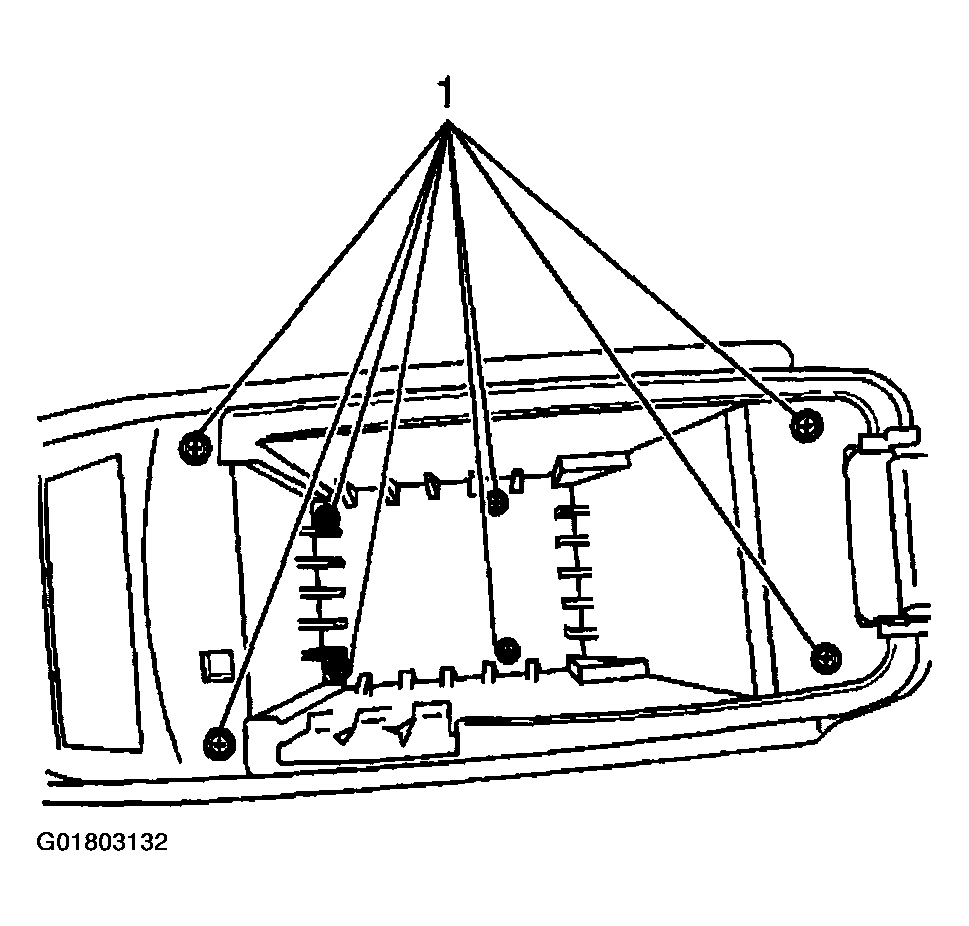

    Fig 1: Installing Console Storage Bin
    G01803132Courtesy of GENERAL MOTORS CORP.
