Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center IP trim plate. Refer to Trim Panel Replacement - IP Center .
Remove the console trim plate. Refer to Trim Plate Replacement - Console .
Remove the console tray insert. Refer to Console Tray Insert Replacement .
Remove the left console trim panel. Refer to Console Trim Panel Replacement - Left .
Remove the right console trim panel. Refer to Console Trim Panel Replacement - Right .
Remove the shifter cable.

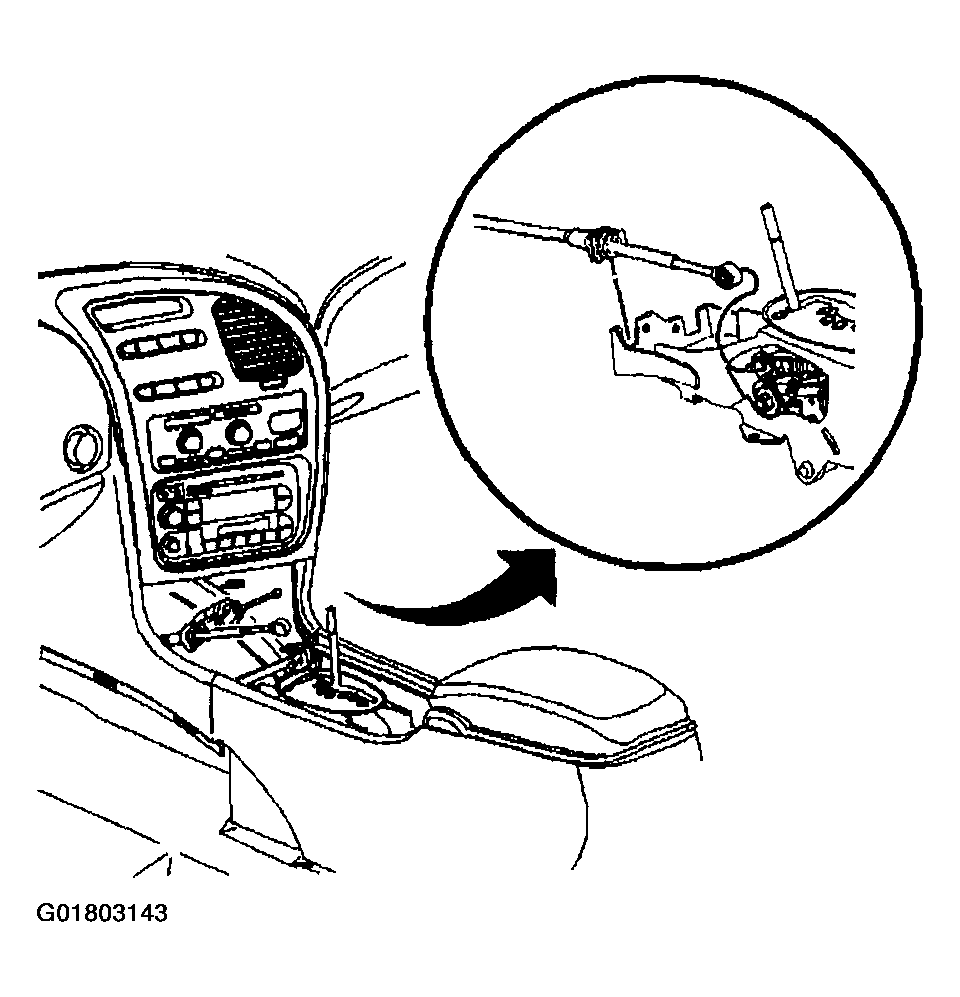

Fig 1: Removing Shifter Cable
Courtesy of GENERAL MOTORS CORP.
Remove the park/shift lock cable.

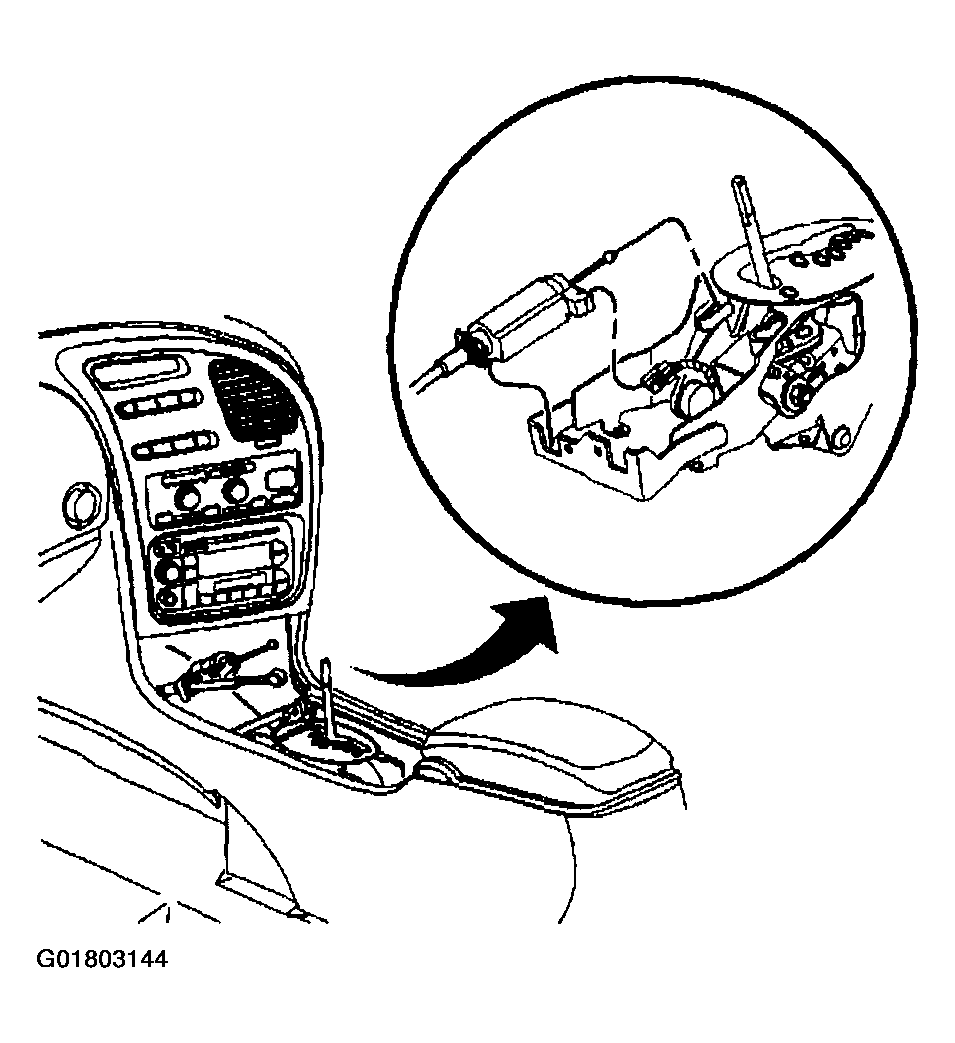

Fig 2: Removing Park/Shift Lock Cable
Courtesy of GENERAL MOTORS CORP.
Remove the console main wiring harness connector.

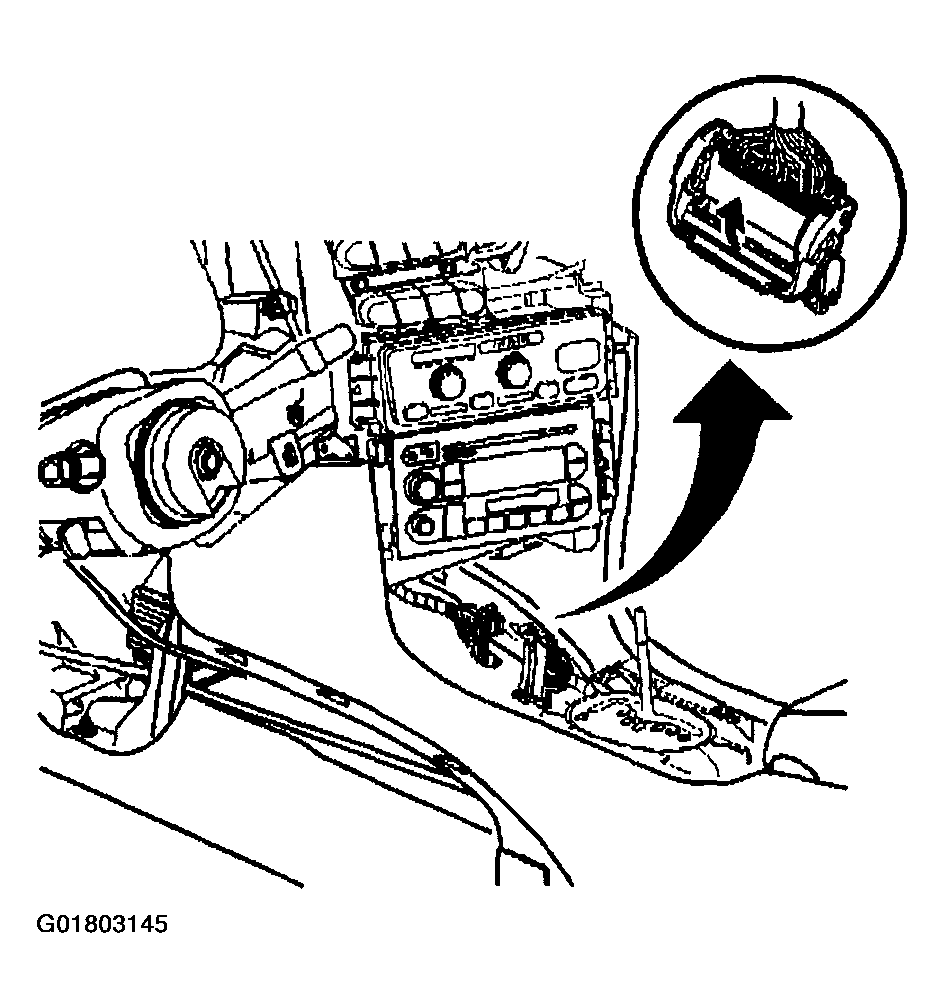

Fig 3: Removing Console Main Wiring Harness Connector
Courtesy of GENERAL MOTORS CORP.
Open the IP storage compartment door and remove the fastener (1).

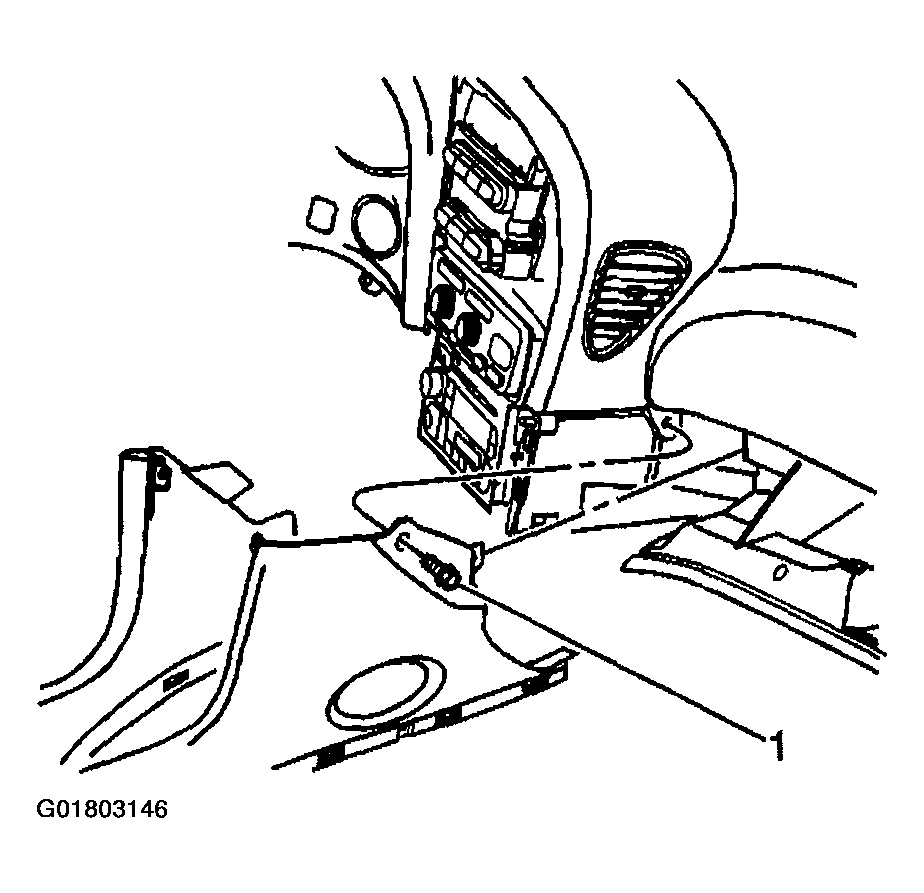

Fig 4: Removing IP Storage Compartment Door Fastener
Courtesy of GENERAL MOTORS CORP.
Remove the fasteners (1, 2) from the console to the IP.

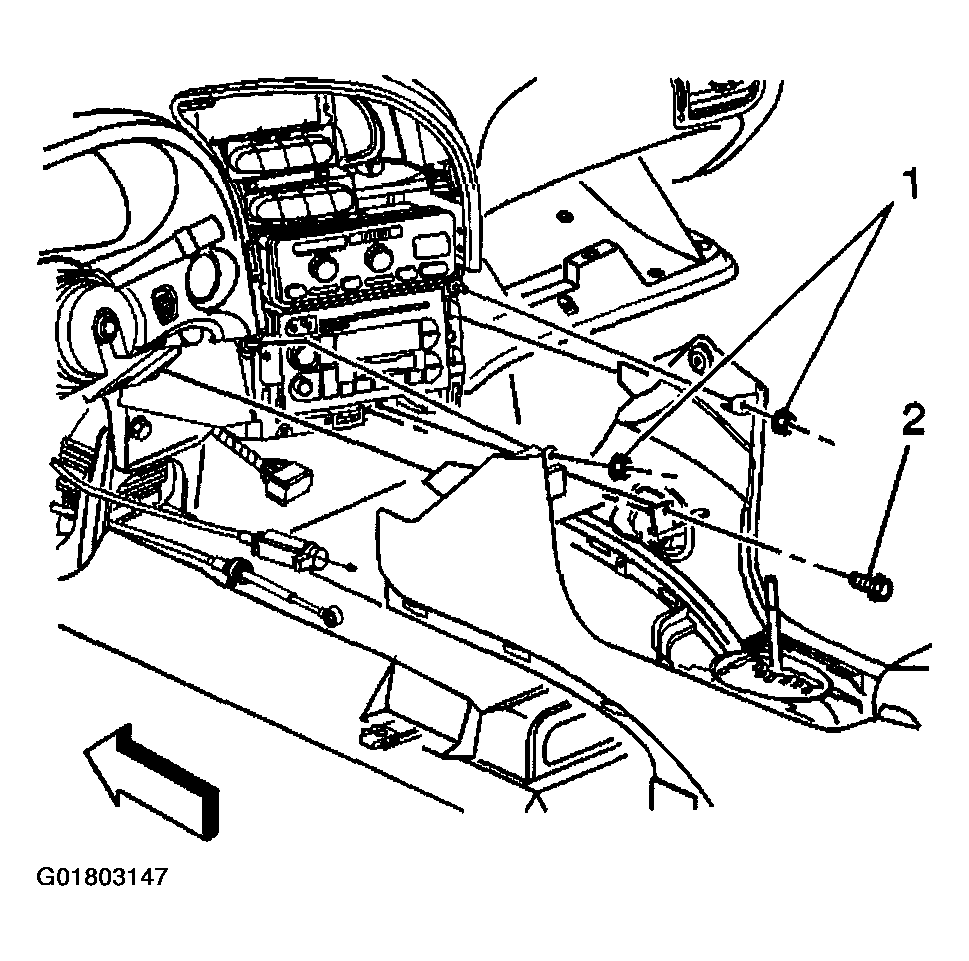

Fig 5: Removing Console To IP Fasteners
Courtesy of GENERAL MOTORS CORP.
Remove the fasteners (1) from the console to the floor.
Move the front seats to the full forward position.
Remove the fasteners (2) from the console to the floor. Move the front seats to the full rearward position.
Carefully, so as not to damage the seats, slide the console rearward and up to remove from the vehicle.

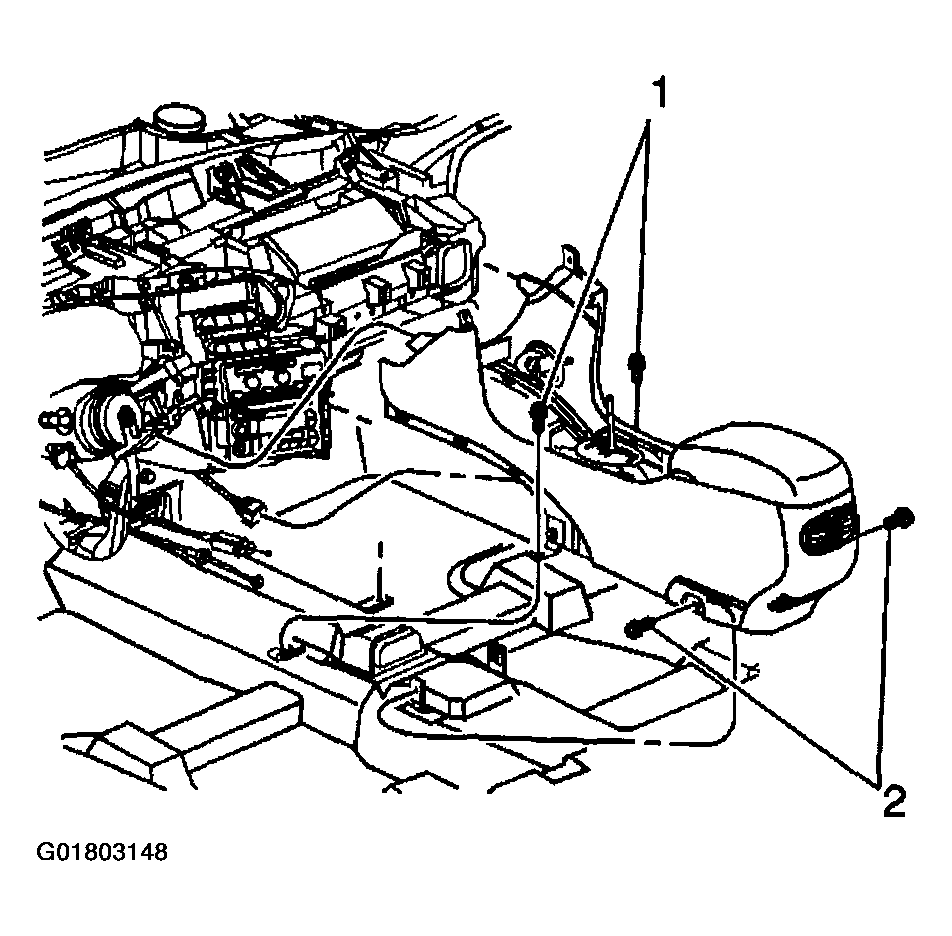

Fig 6: Removing Console
Courtesy of GENERAL MOTORS CORP.
