Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Carefully, so as not to damage the seats, install the console into the vehicle by sliding forward and fitting up to the IP.
CAUTION: Refer to FASTENER NOTICE .
Install the fasteners (1) from the console to the floor.
Tighten

Tighten the fasteners (1) to 9 N.m (80 in lbs).
Move the seat to the full forward position.
Install the fasteners (2) from the console to the floor.
Tighten

Tighten the fasteners (2) to 9 N.m (80 in lbs).

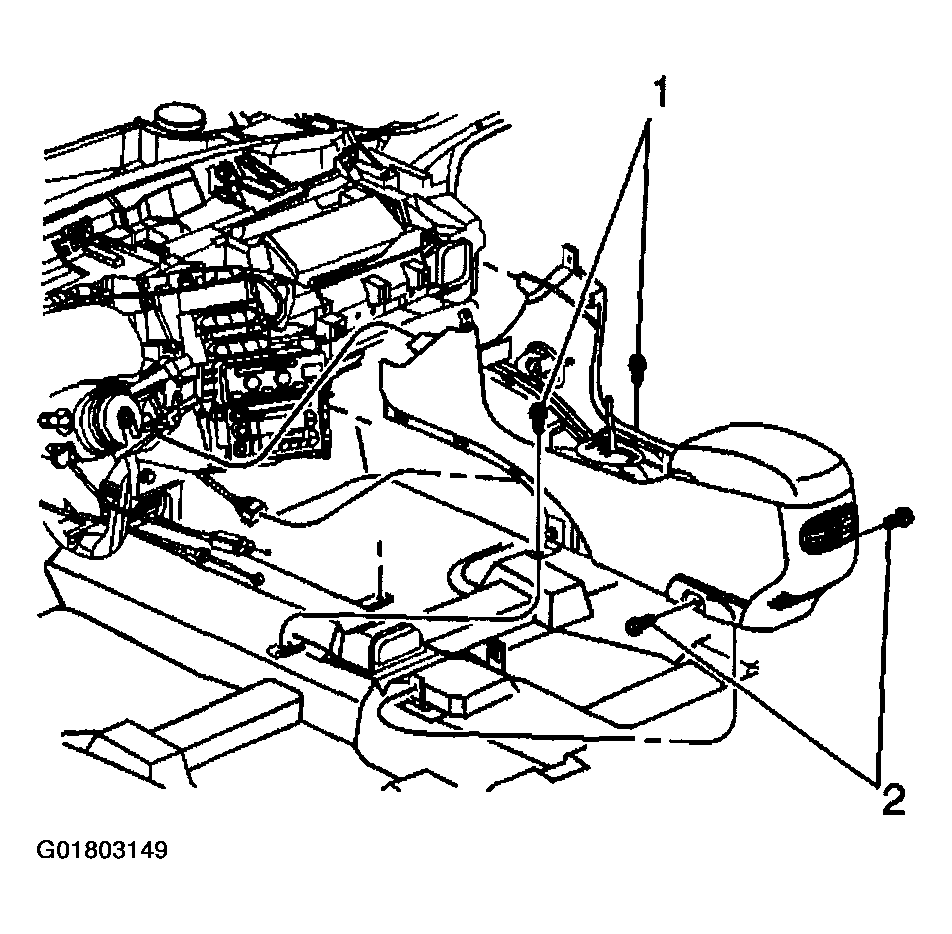

Fig 1: Installing Console
Courtesy of GENERAL MOTORS CORP.
Install the fasteners (1, 2) from the console to the IP.
Tighten

Tighten the fasteners (1) to 9 N.m (80 in lbs).

Tighten

Tighten the fastener (2) to 2 N.m (18 in lbs).

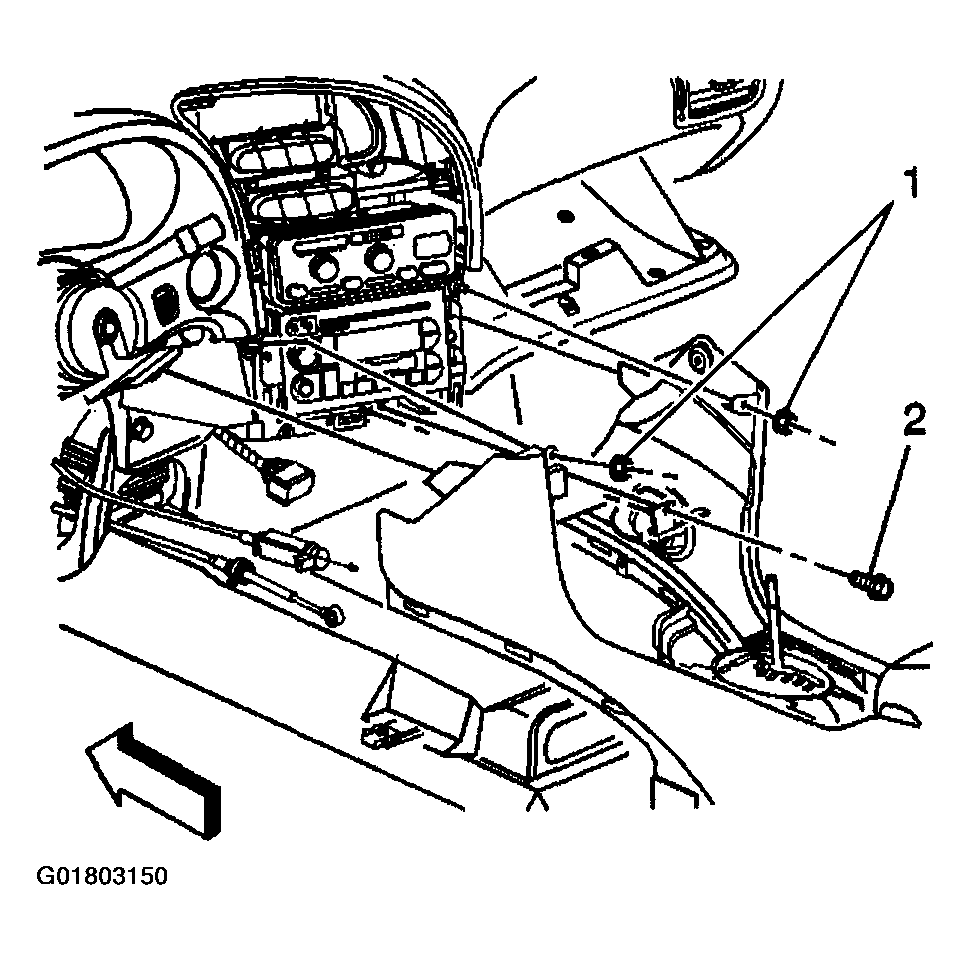

Fig 2: Installing Console To IP Fasteners
Courtesy of GENERAL MOTORS CORP.
Install the right side fastener (1).
Tighten

Tighten the fastener to 2 N.m (18 in lbs).

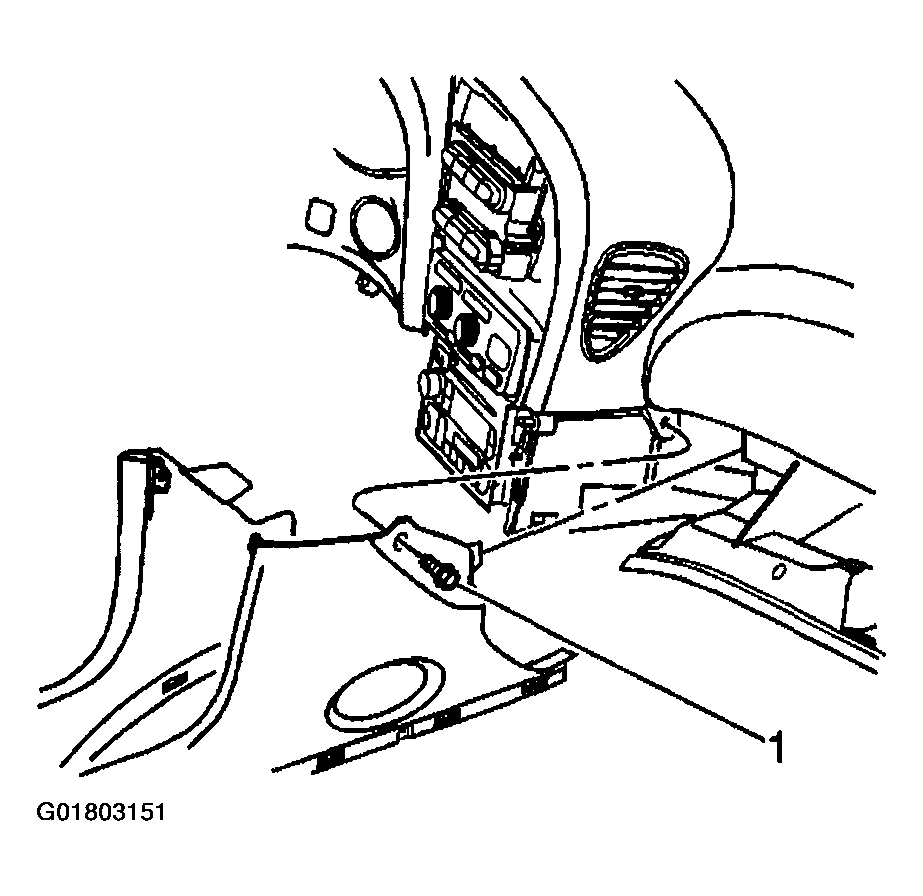

Fig 3: Installing Right Side Fastener
Courtesy of GENERAL MOTORS CORP.
Connect the main wiring harness connector.

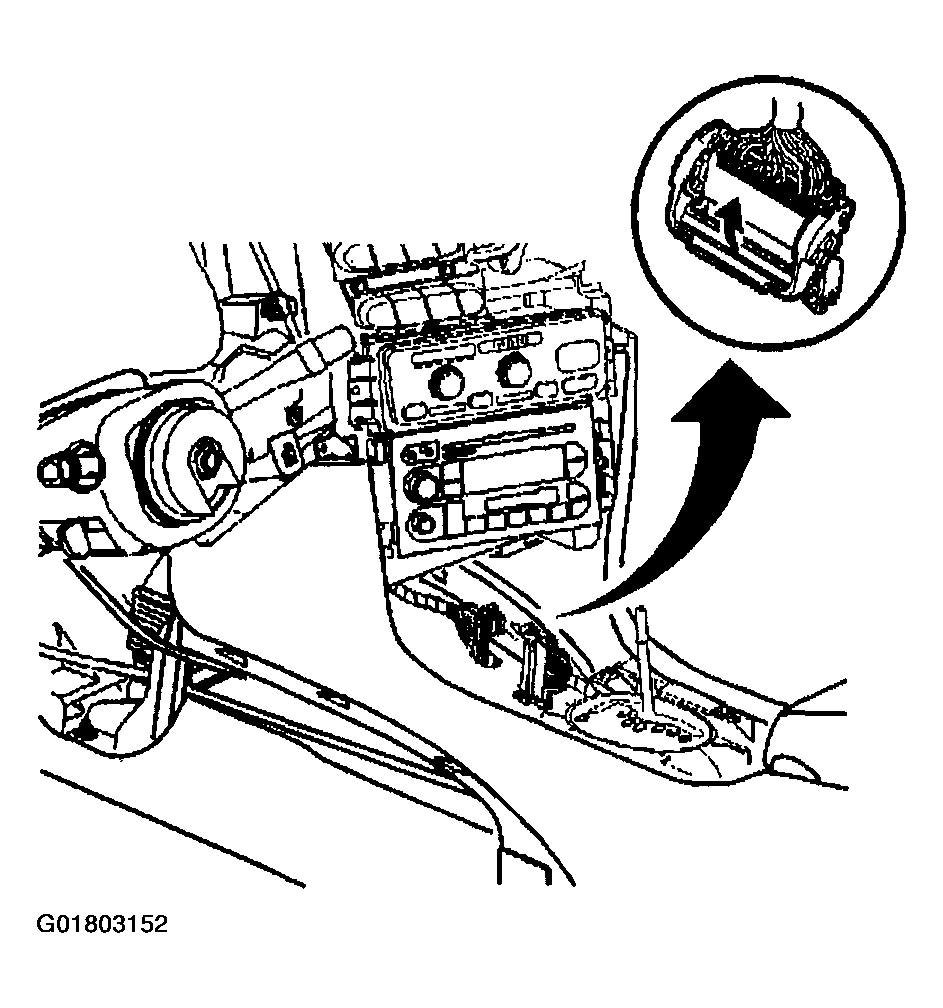

Fig 4: Connecting Main Wiring Harness Connector
Courtesy of GENERAL MOTORS CORP.
Install the park/shift lock cable.

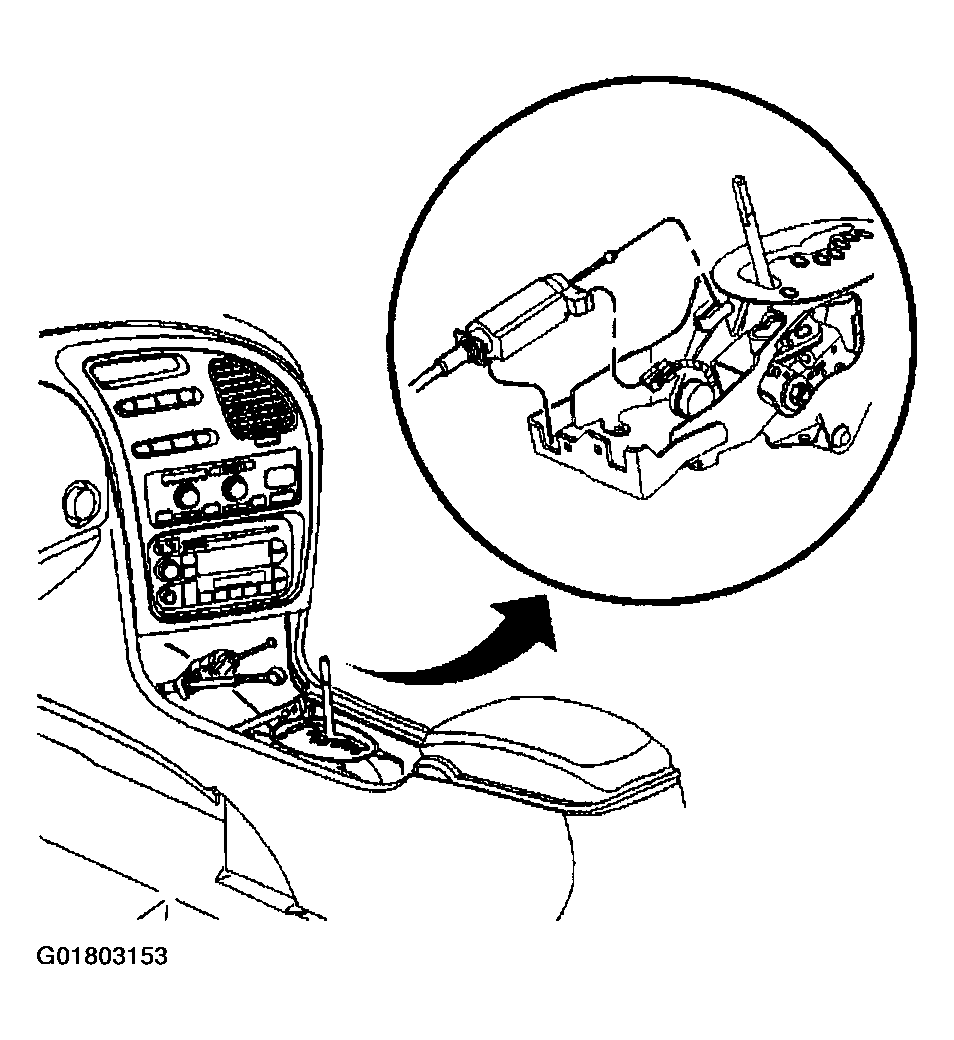

Fig 5: Installing Park/Shift Lock Cable
Courtesy of GENERAL MOTORS CORP.
Install the shifter cable.

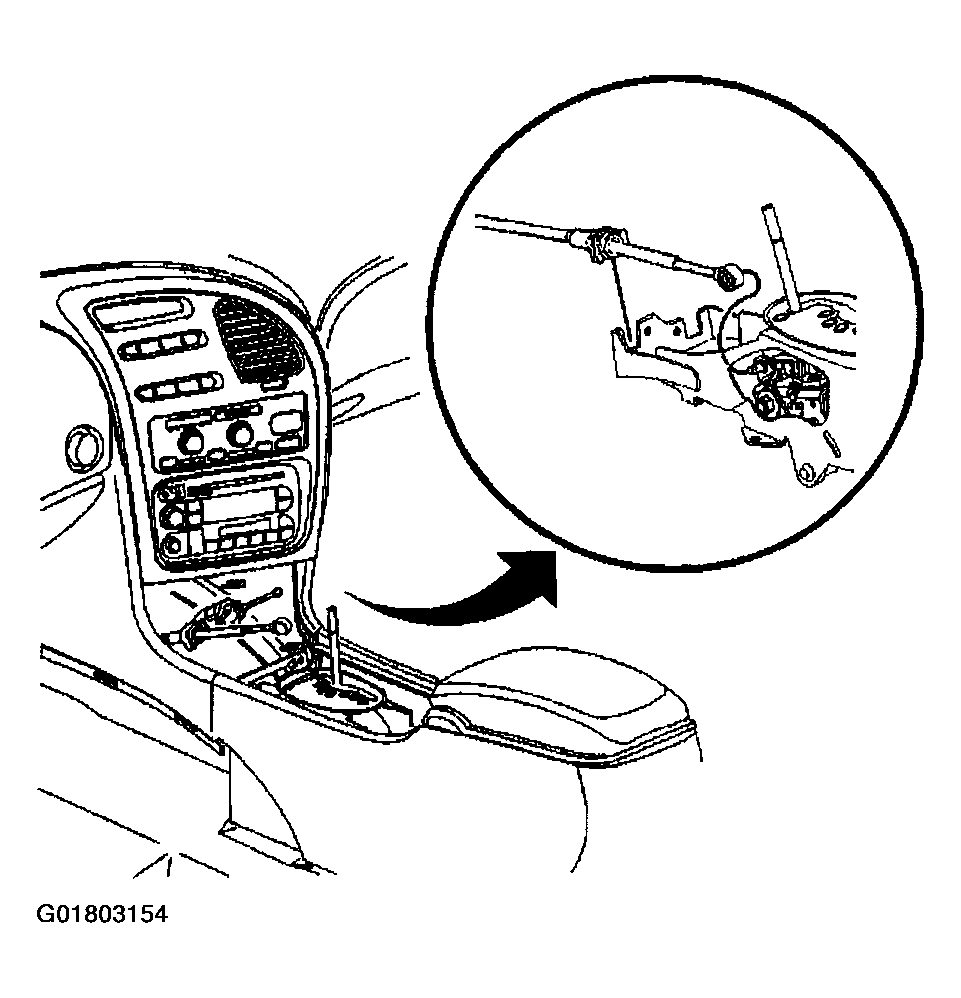

Fig 6: Installing Shifter Cable

Courtesy of GENERAL MOTORS CORP.

Install the console trim plate. Refer to Trim Plate Replacement - Console .
Install the right console trim panel. Refer to Console Trim Panel Replacement - Right .
Install the left console trim panel. Refer to Console Trim Panel Replacement - Left .
Install the tray assembly. Refer to Console Tray Insert Replacement .
Install the console trim plate. Refer to Trim Plate Replacement - Console .
Install the center IP trim plate. Refer to Trim Panel Replacement - IP Center .
