Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners securing the closeout insulator panel to the instrument panel retainer.
  2. Remove the heater temperature sensor from the closeout insulator panel by turning 1/4 turn counter clockwise.
  3. Disconnect electrical connector from the lower IP courtesy lamp.
  4. Slide the closeout insulator panel rearward in order to remove from the vehicle.

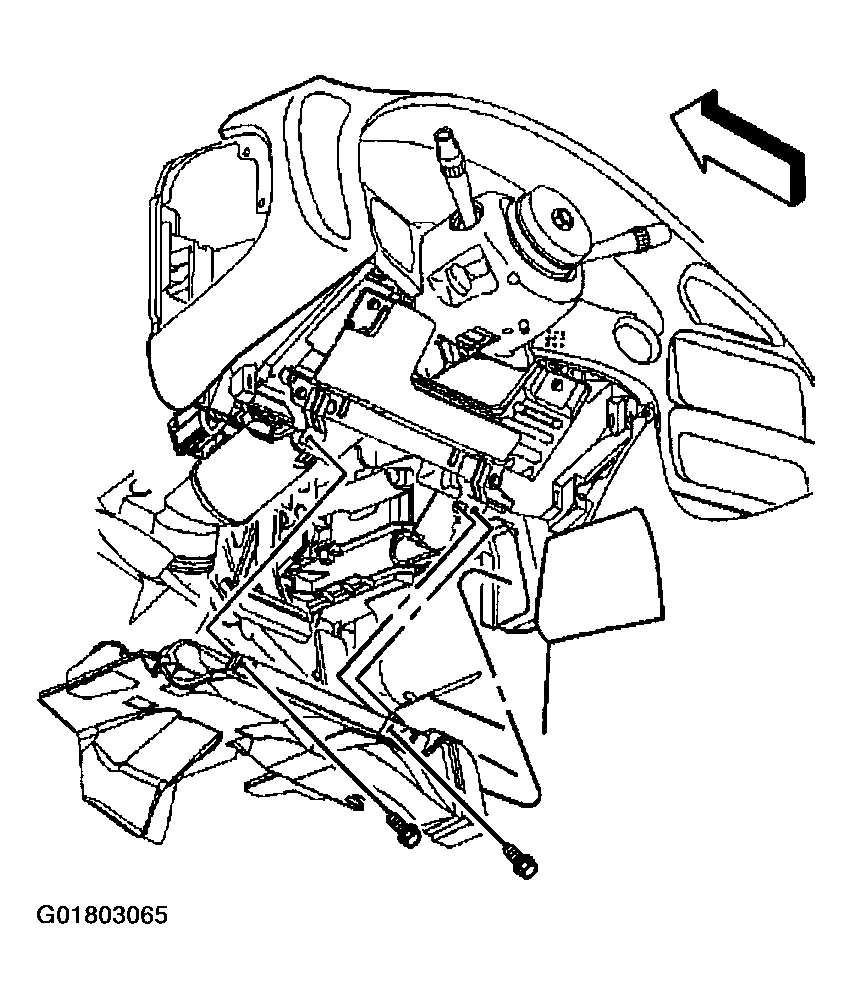

    Fig 1: Removing Left Closeout/Insulator Panel
    G01803065Courtesy of GENERAL MOTORS CORP.
