Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the forward edge of the closeout insulator panel onto the shelf of carpeting at the front of the vehicle.
  2. Connect the electrical connector to the lower IP courtesy lamp.
  3. Install the heater temperature sensor to the closeout insulator panel by turning 1/4 turn clockwise.
  4. Install fasteners into lower IP.
  5. Position the closeout insulator panel to the IP retainer.
    CAUTION: Refer to FASTENER NOTICE .
  6. Install the fasteners in order to secure the close out insulator panel to the IP retainer.

    Tighten

    Tighten the fasteners to 2 N.m (18 in lbs).

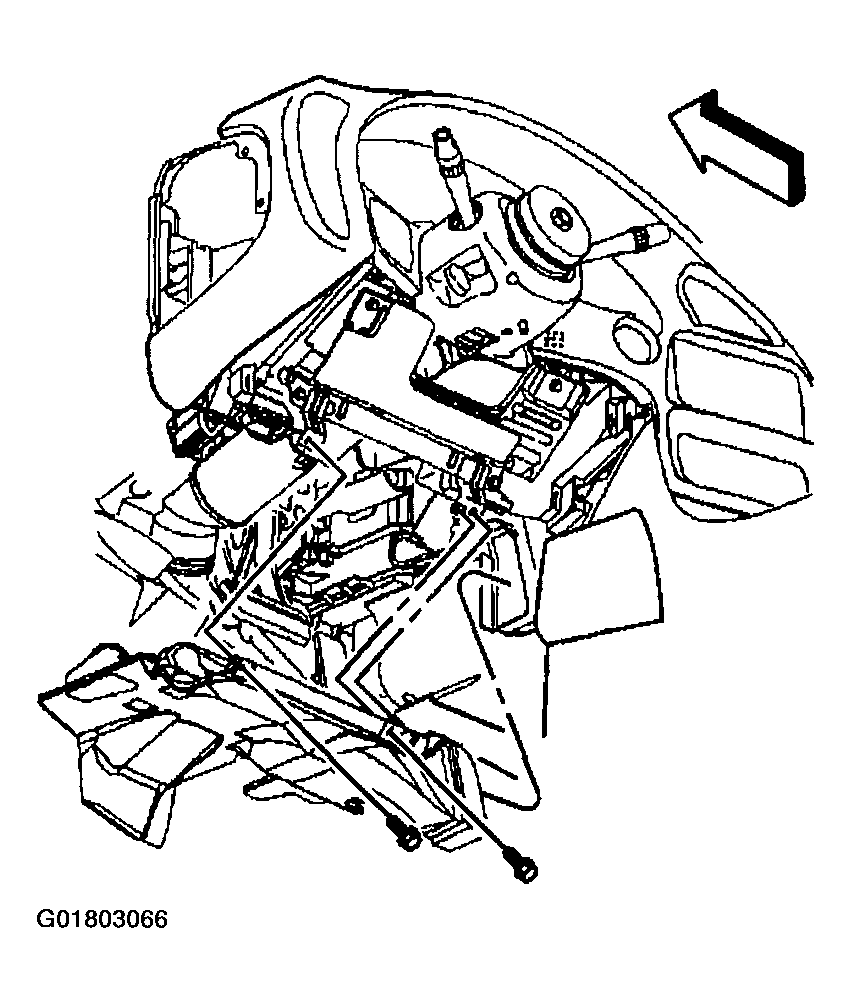

    Fig 1: Installing Left Closeout/Insulator Panel
    G01803066Courtesy of GENERAL MOTORS CORP.
