Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the steering column bracket to the IP carrier.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the steering column bracket fasteners.

    Tighten

    Tighten the fasteners to 9 N.m (80 in lbs).

  3. Install the knee bolster. Refer to Bracket Replacement - Knee Bolster  .

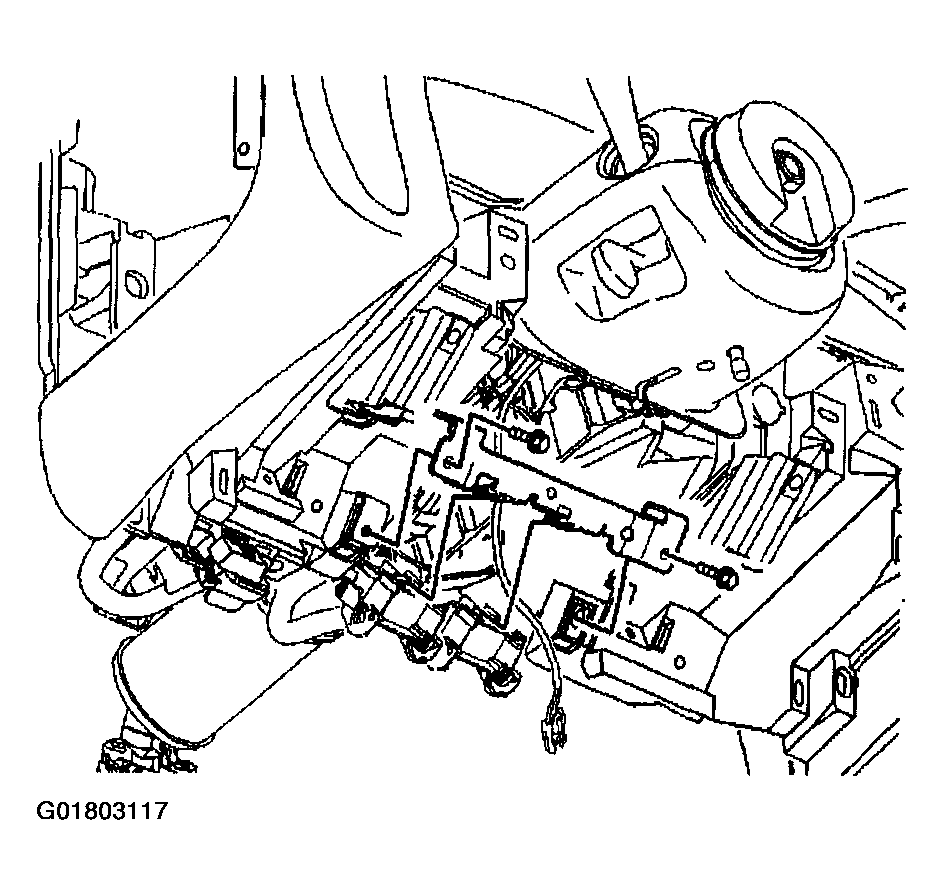

    Fig 1: Installing Steering Column Bracket
    G01803117Courtesy of GENERAL MOTORS CORP.
