Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the secondary knee bolster brackets to the carrier.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the secondary knee bolster bracket fasteners

    Tighten

    Tighten the fasteners to 10 N.m (89 in lbs).

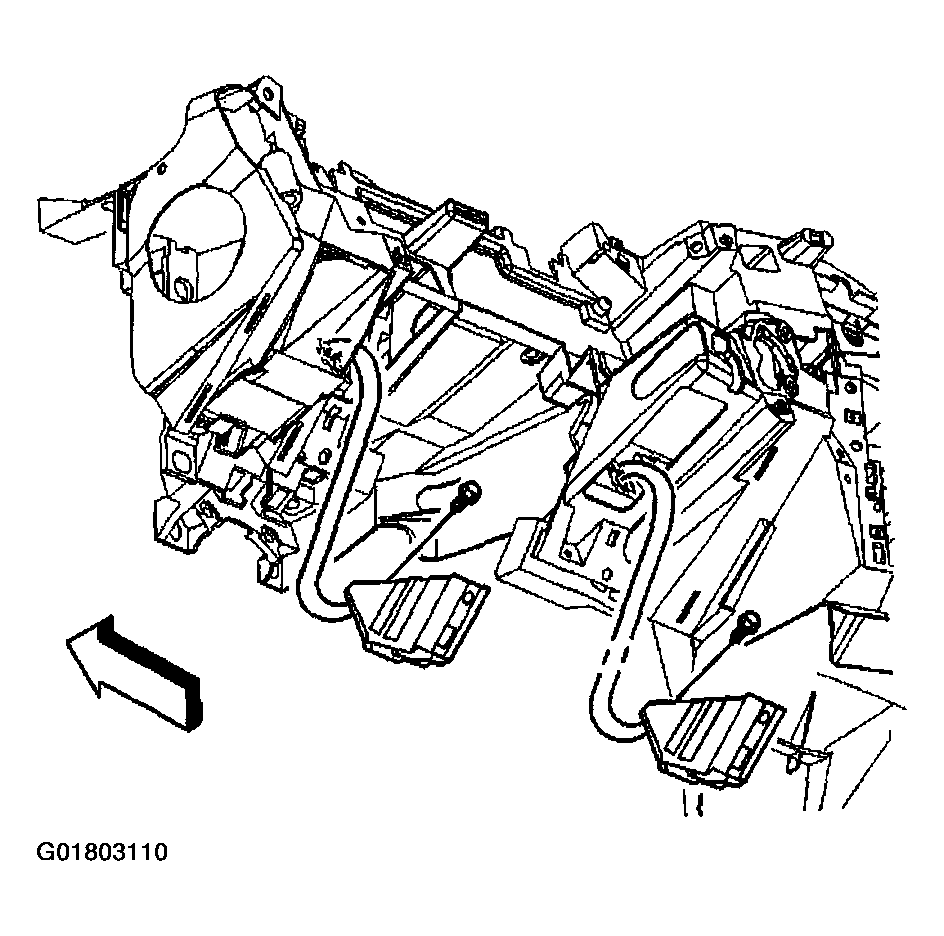

    Fig 1: Installing Secondary Knee Bolster Brackets
    G01803110Courtesy of GENERAL MOTORS CORP.
  3. Install the primary knee bolster bracket.
  4. Install the primary knee bolster bracket fasteners.

    Tighten

    Tighten the fasteners to 2 N.m (18 in lbs).

  5. Install the knee bolster. Refer to Knee Bolster Replacement  .
  6. Install the left closeout insulator panel. Refer to Closeout/Insulator Panel Replacement - Left  .

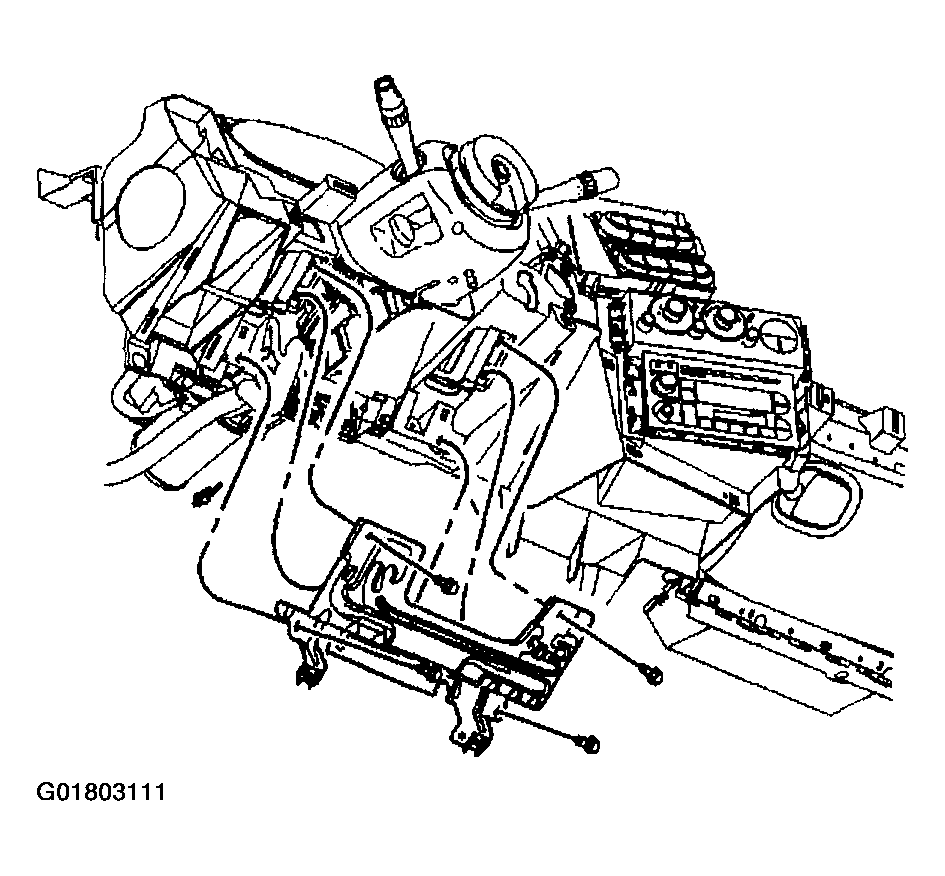

    Fig 2: Installing Primary Knee Bolster Bracket
    G01803111Courtesy of GENERAL MOTORS CORP.
