Scan Tool Data List

The scan tool data lists contain all of the instrument panel, gages, and console related parameters that are available on the scan tool. The Parameters in the list are arranged in alphabetical order. The data list column indicates the location of the parameter within the scan tool menu selections.

Use the scan tool data list(s) as directed by a diagnostic table or in order to supplement the diagnostic procedures.

Begin all of the diagnostic procedures with one of the following:

• Diagnostic System Check - Instrument Cluster
• Diagnostic System Check - Driver Information Systems
• Diagnostic System Check - Audible Warnings

The typical data values are obtained from a properly operating vehicle under the conditions specified in the first row of the scan tool data list table. Comparison of the parameter values from the suspect vehicle with the typical data values may reveal the source of the customer concern.

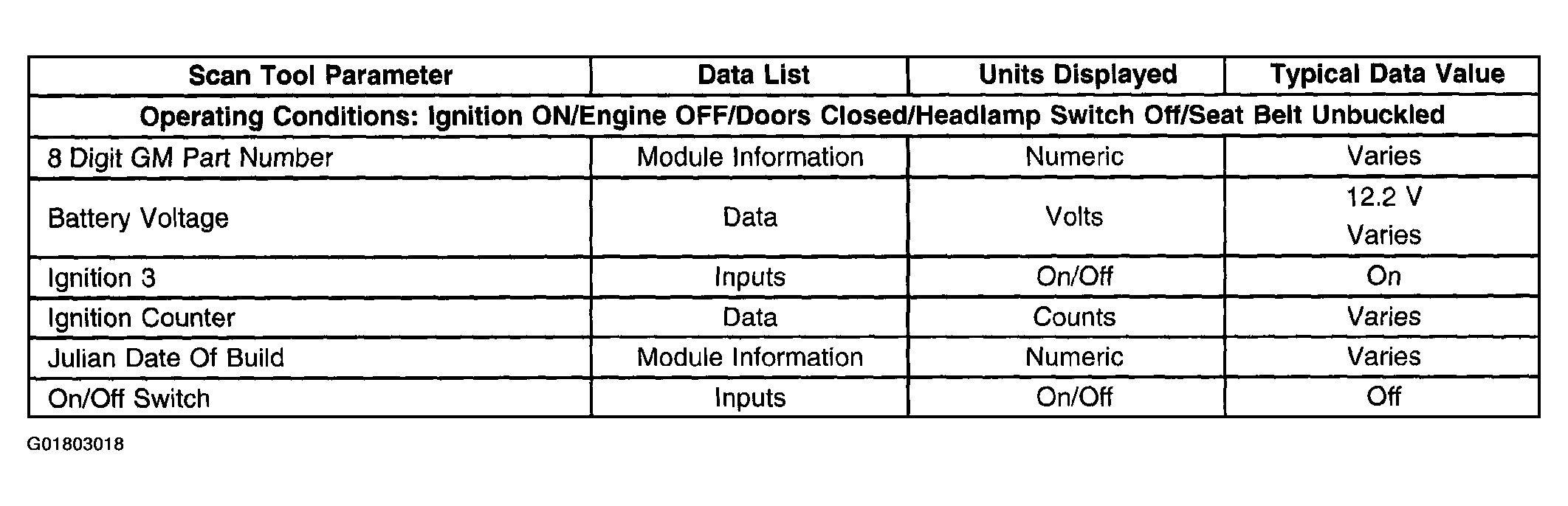

Fig 1: Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.

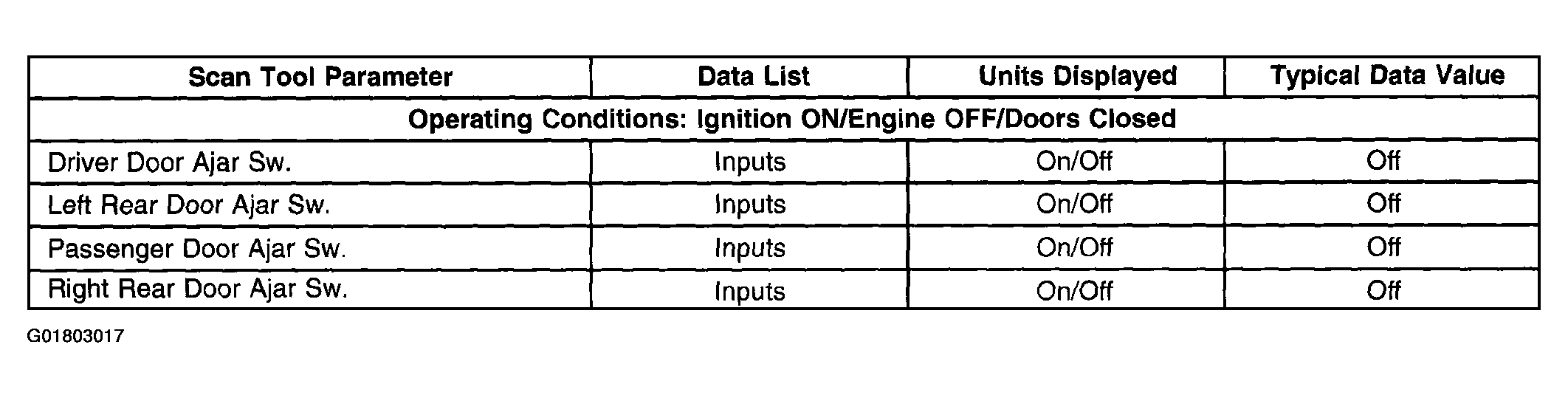

Fig 2: Driver Door Module (DDM)

Courtesy of GENERAL MOTORS CORP.

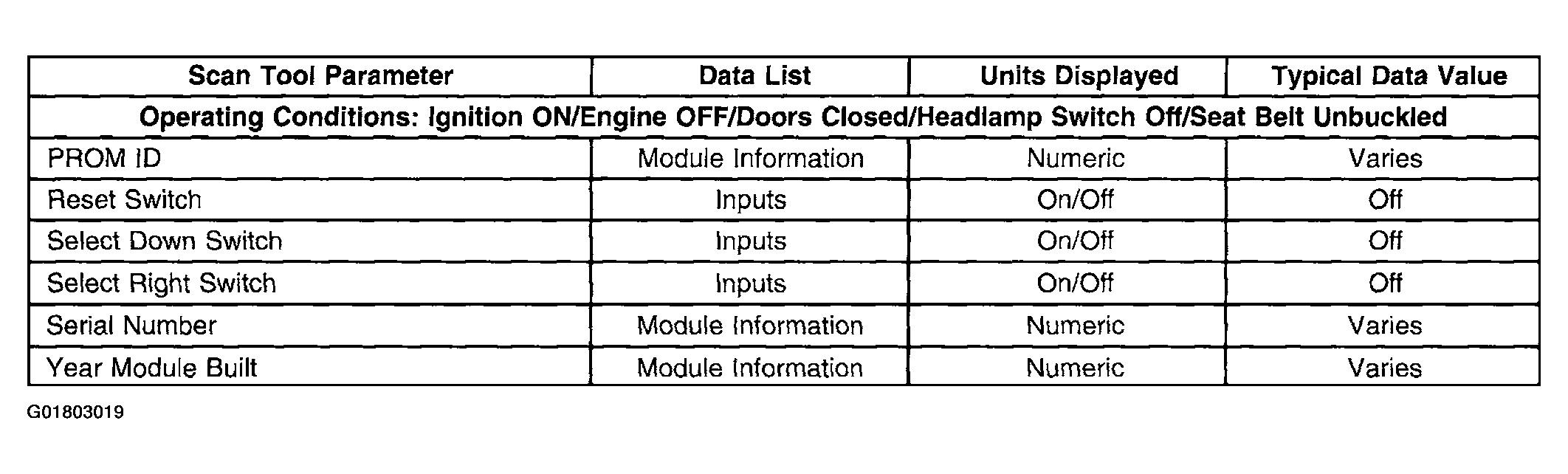

Fig 3: Driver Information Center (DIC) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Driver Information Center (DIC) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

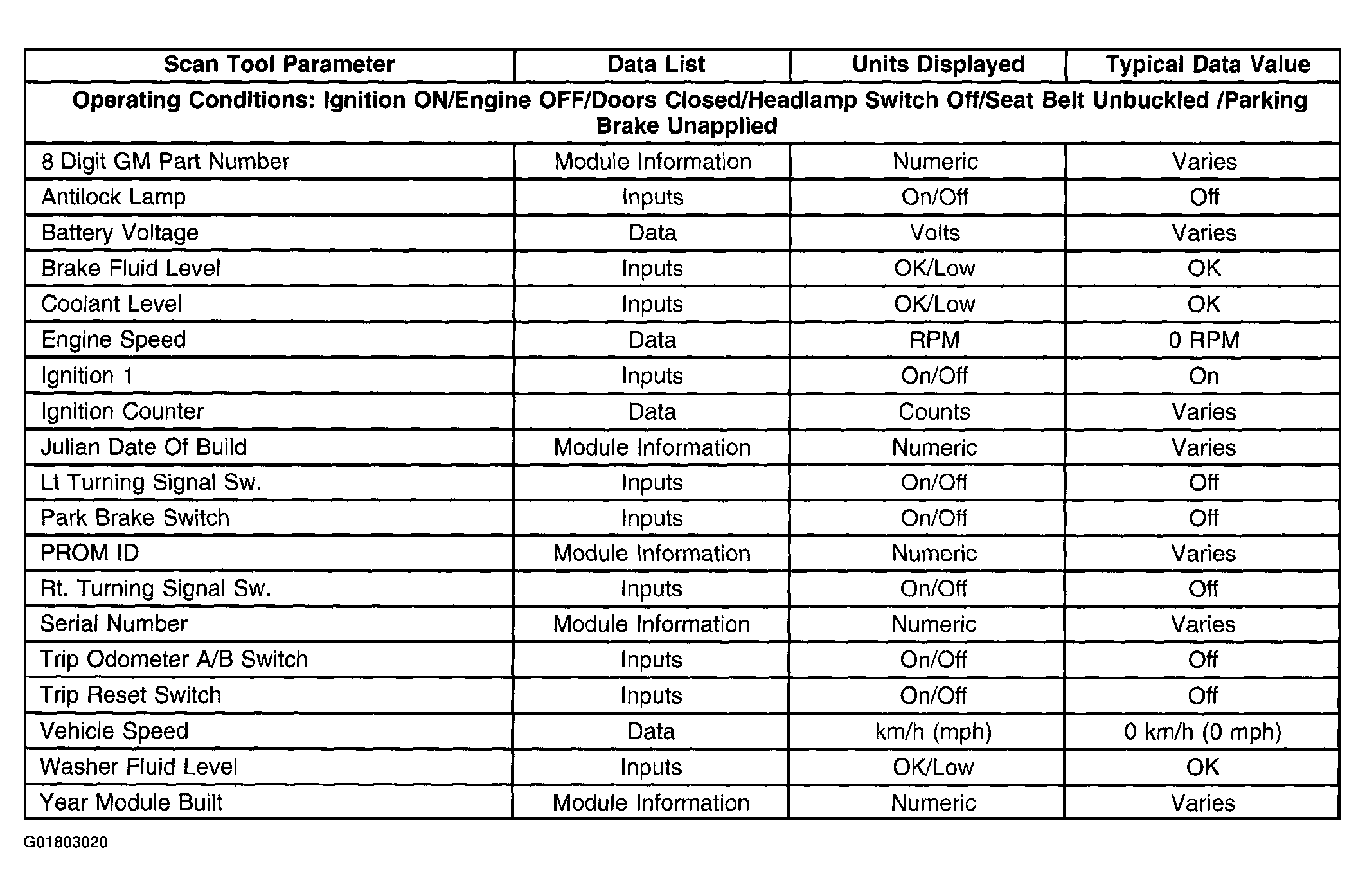

Fig 5: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Instrument Panel Module (IPM)

Courtesy of GENERAL MOTORS CORP.

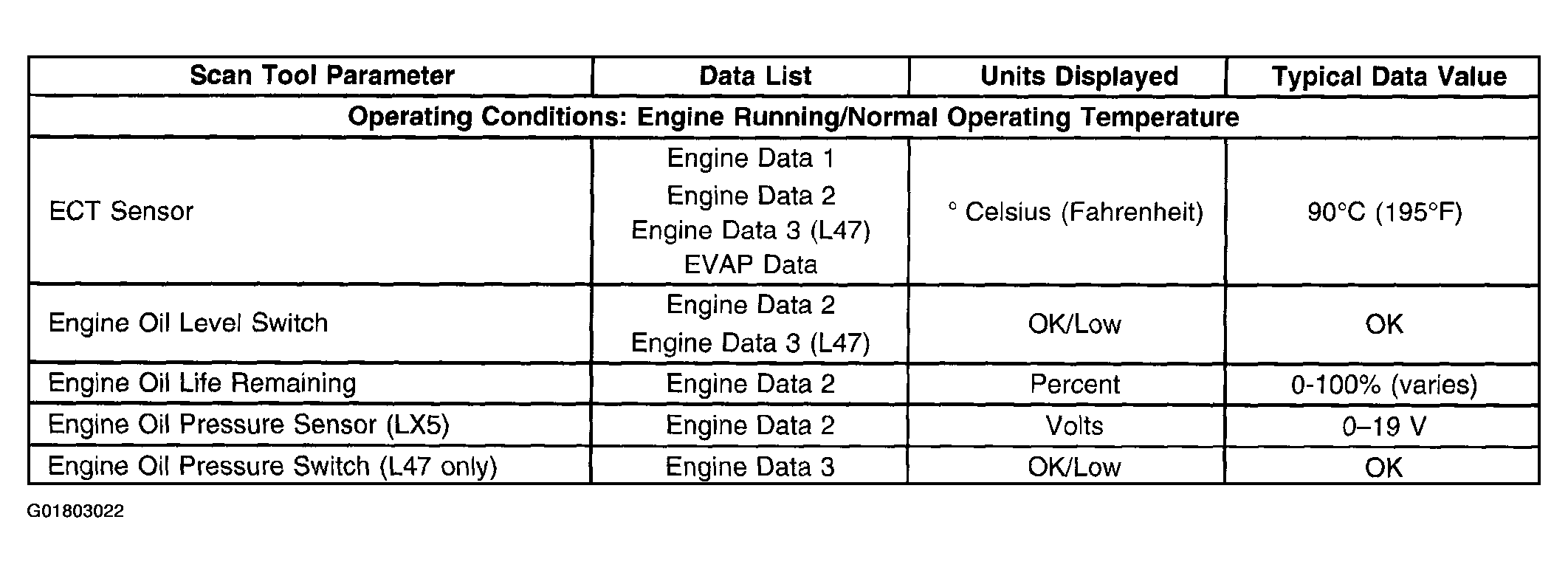

Fig 7: Powertrain Control Module (PCM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

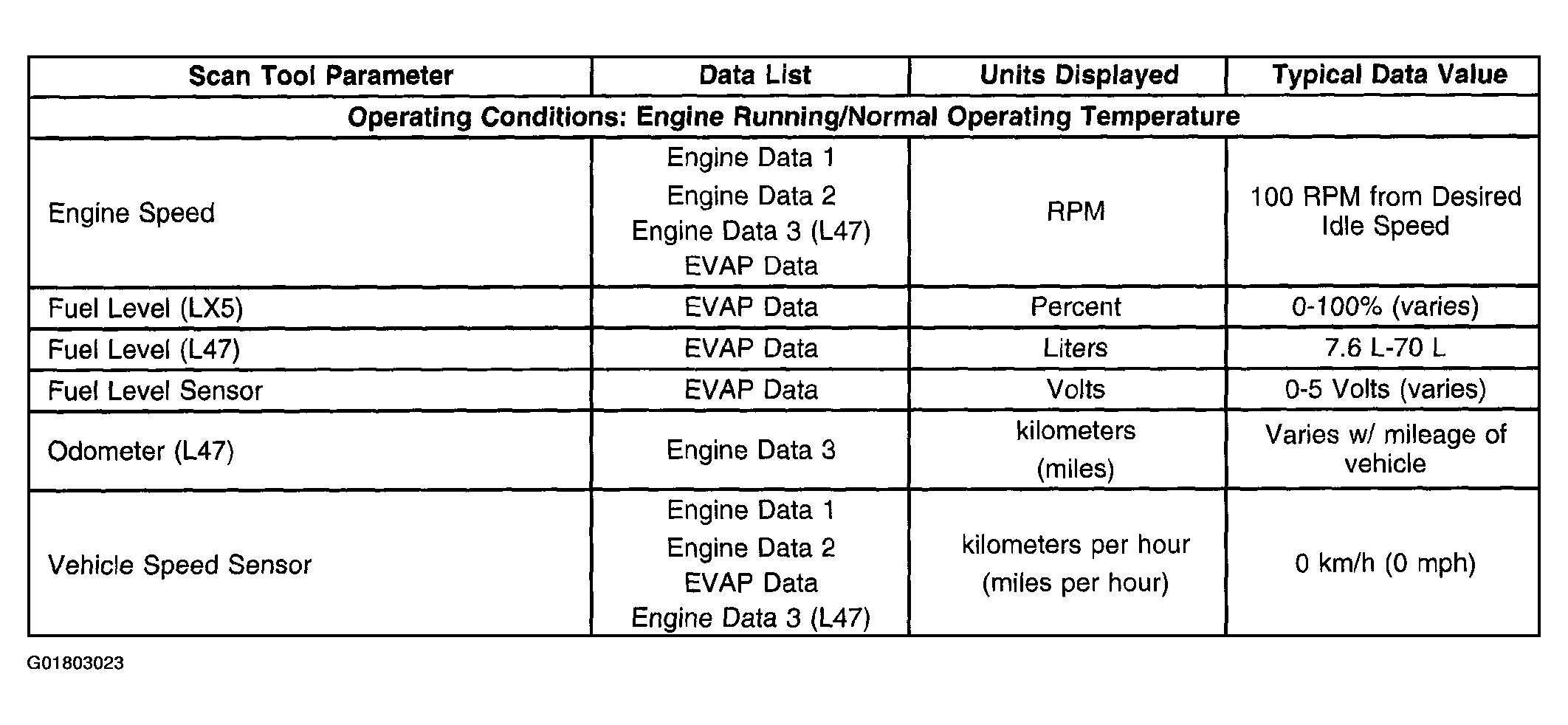

Fig 8: Powertrain Control Module (PCM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
