Indicator/Warning Message Description and Operation: Notes

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

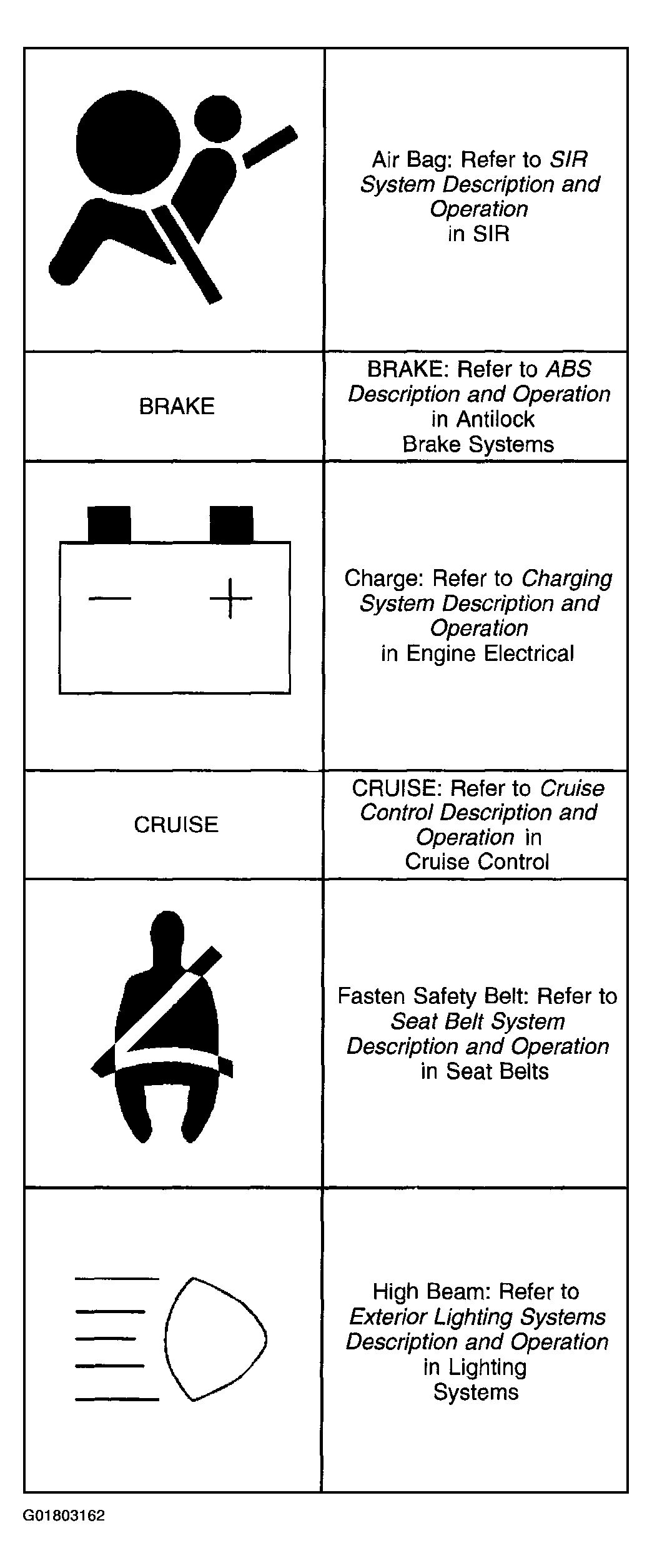

Fig 1: Indicators (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

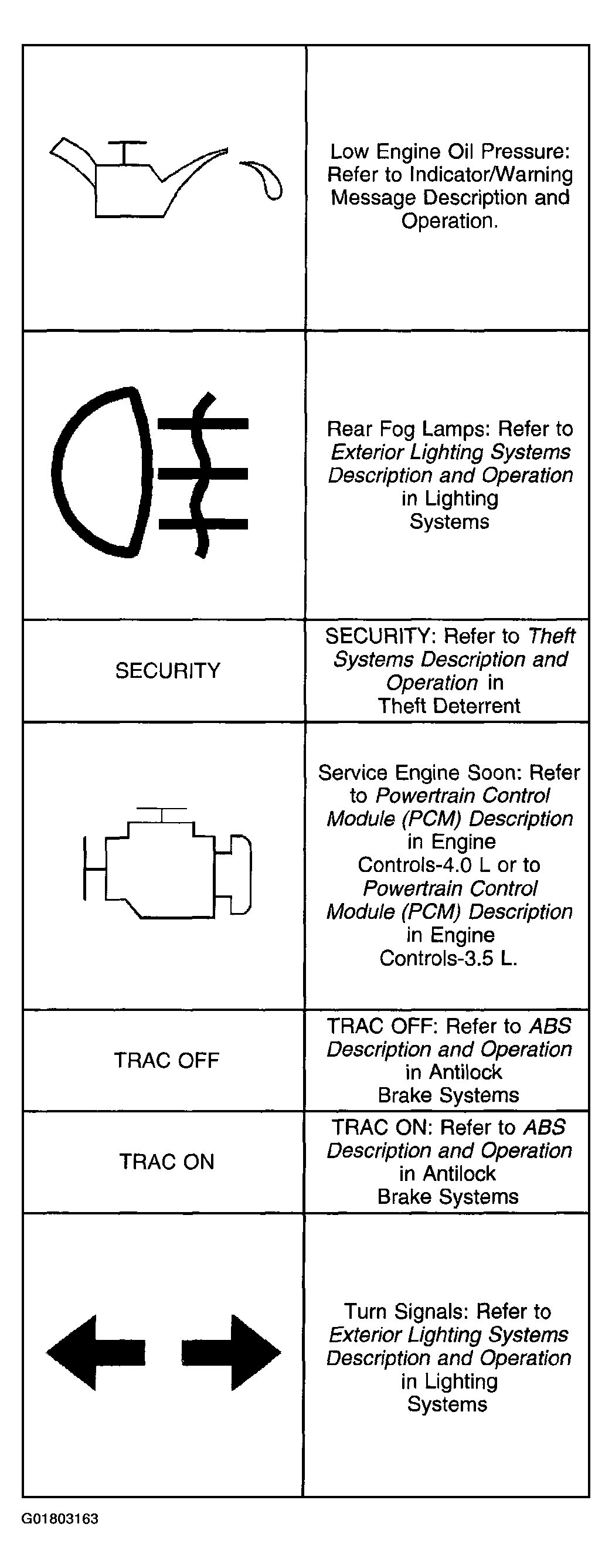

Fig 2: Indicators (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Indicators (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

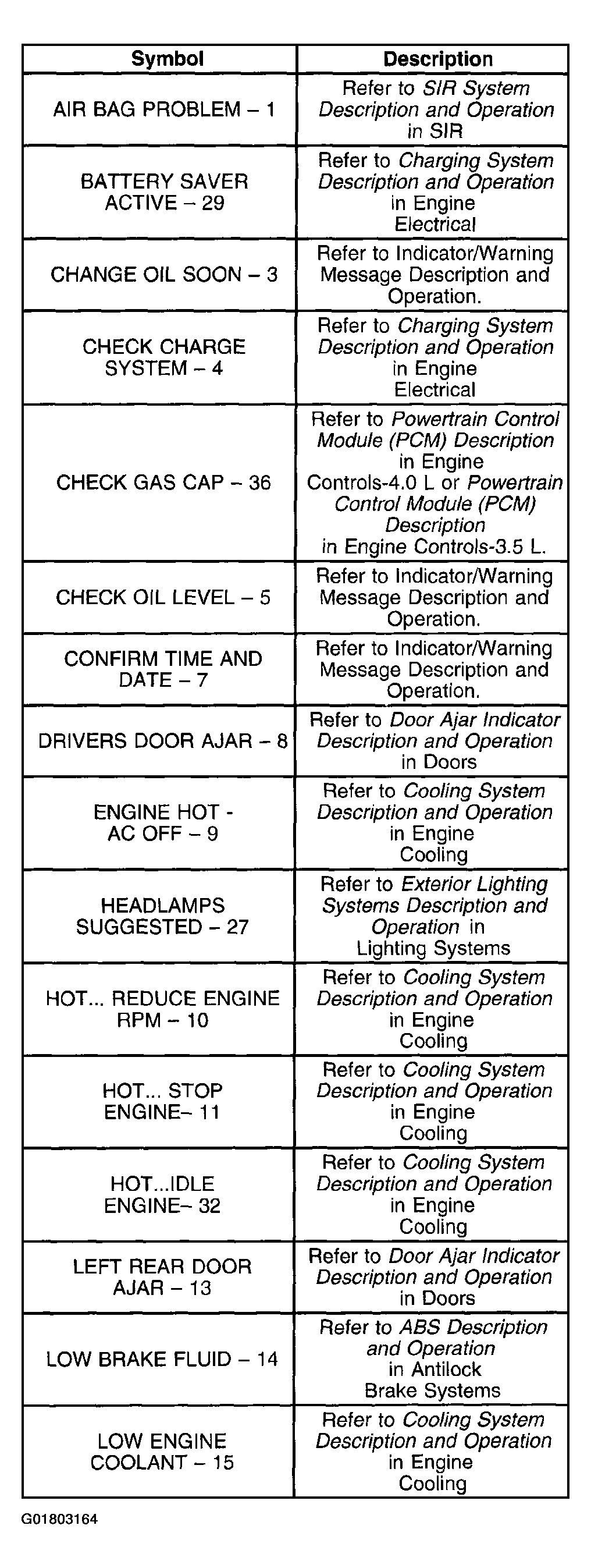

Fig 4: DIC Warning Messages (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

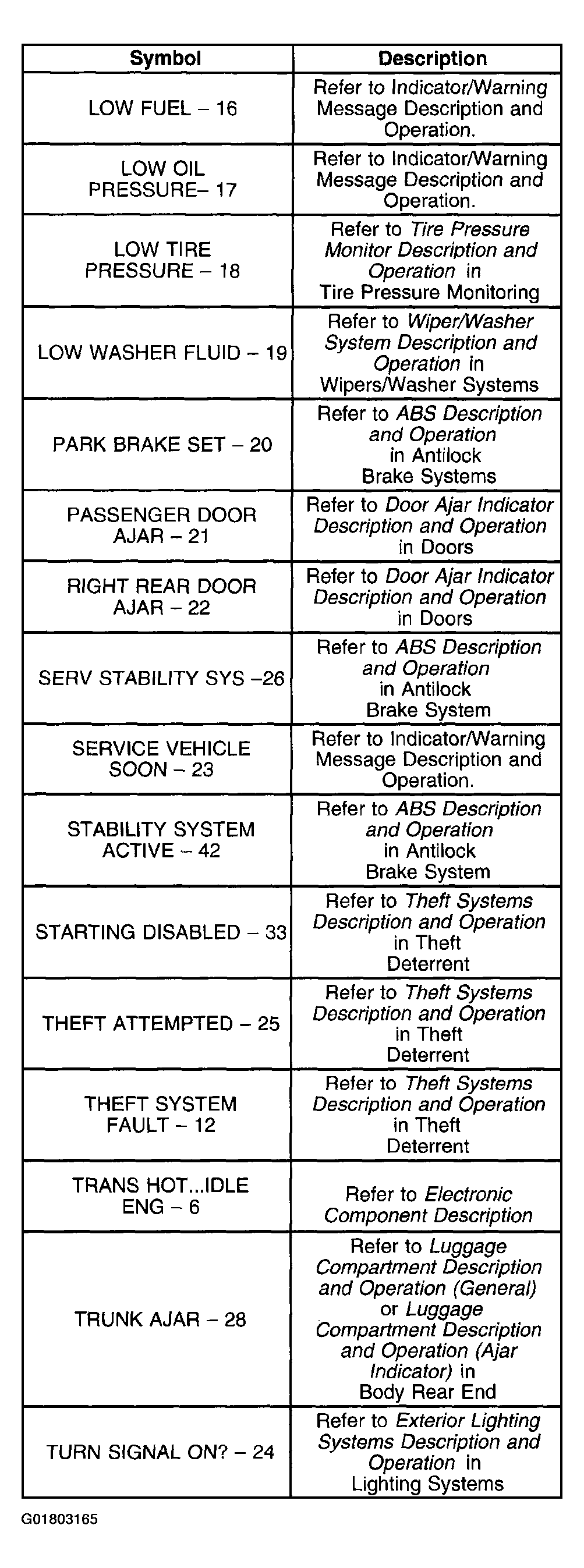

Fig 5: DIC Warning Messages (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
