Instrument Panel, Gages, and Console Component Views
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

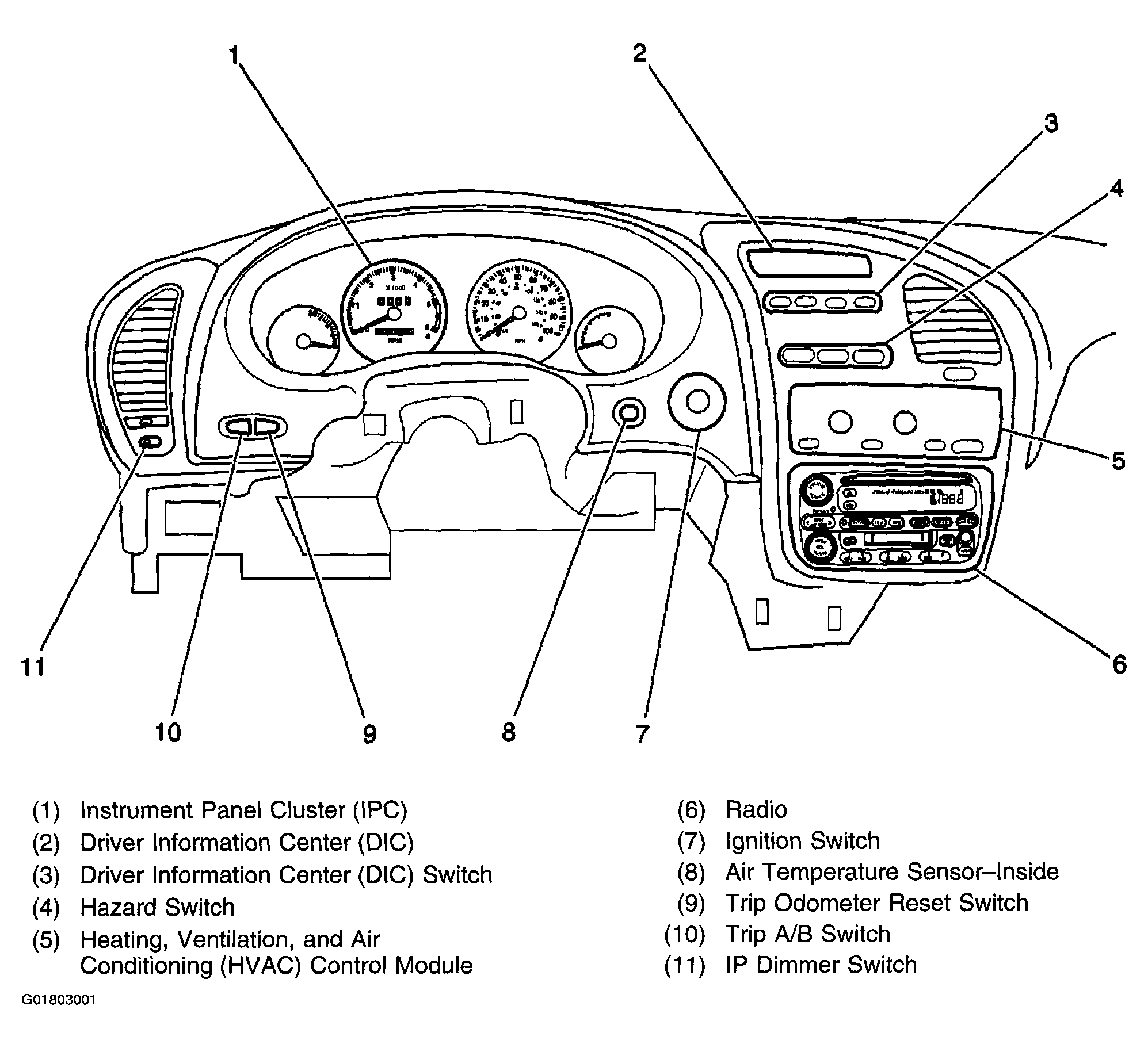

Fig 1: Instrument Panel Cluster (IPC)
Courtesy of GENERAL MOTORS CORP.

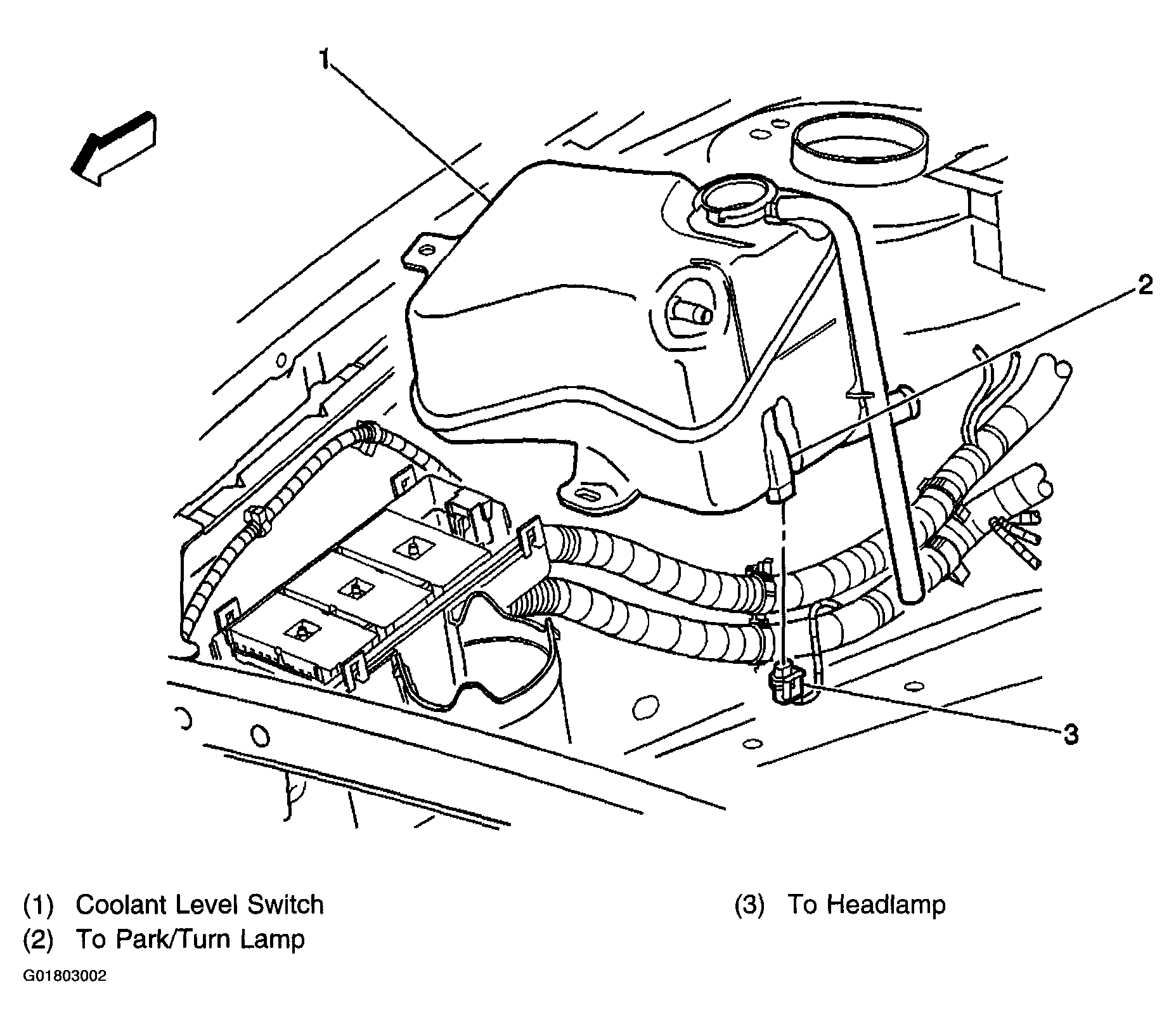

Fig 2: Left Side of Radiator
Courtesy of GENERAL MOTORS CORP.

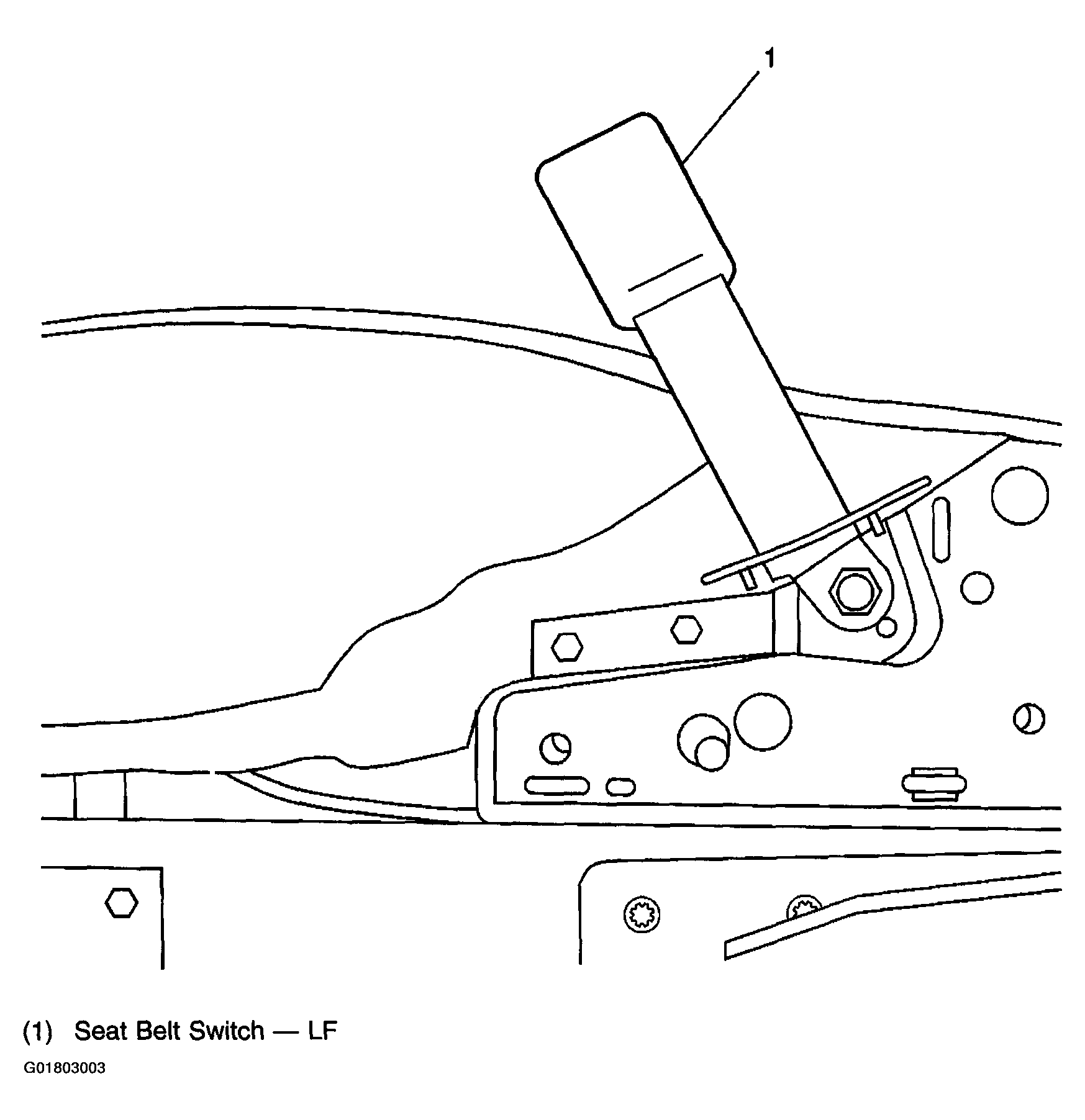

Fig 3: Left Front of the Passenger Compartment, Side of the Seat
