Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
  3. Remove the push fasteners at the front of the rear window trim panel.
  4. Remove the outer shoulder belts (2) from the trim panel (1).
  5. If equipped with center shoulder belt, remove the escutcheon from the trim panel.
  6. Feed the center shoulder belt and escutcheon through the hole in the trim panel.
  7. Remove the rear window trim panel (1) from the vehicle.

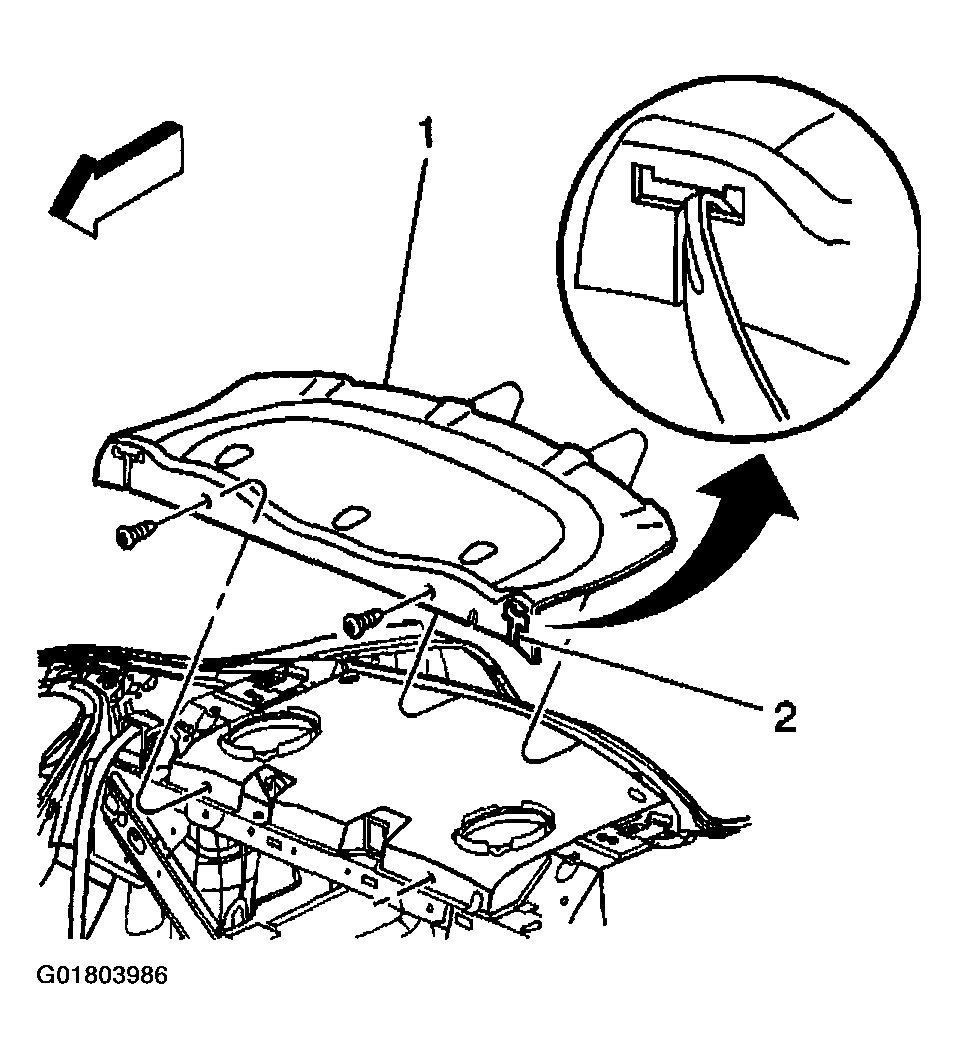

    Fig 1: Removing Rear Window Trip Panel
    G01803986Courtesy of GENERAL MOTORS CORP.
