Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf  .
  2. Remove the fasteners securing the carrier.
  3. Disconnect the electrical connector.
  4. Remove the rear shelf trim panel carrier from the vehicle.

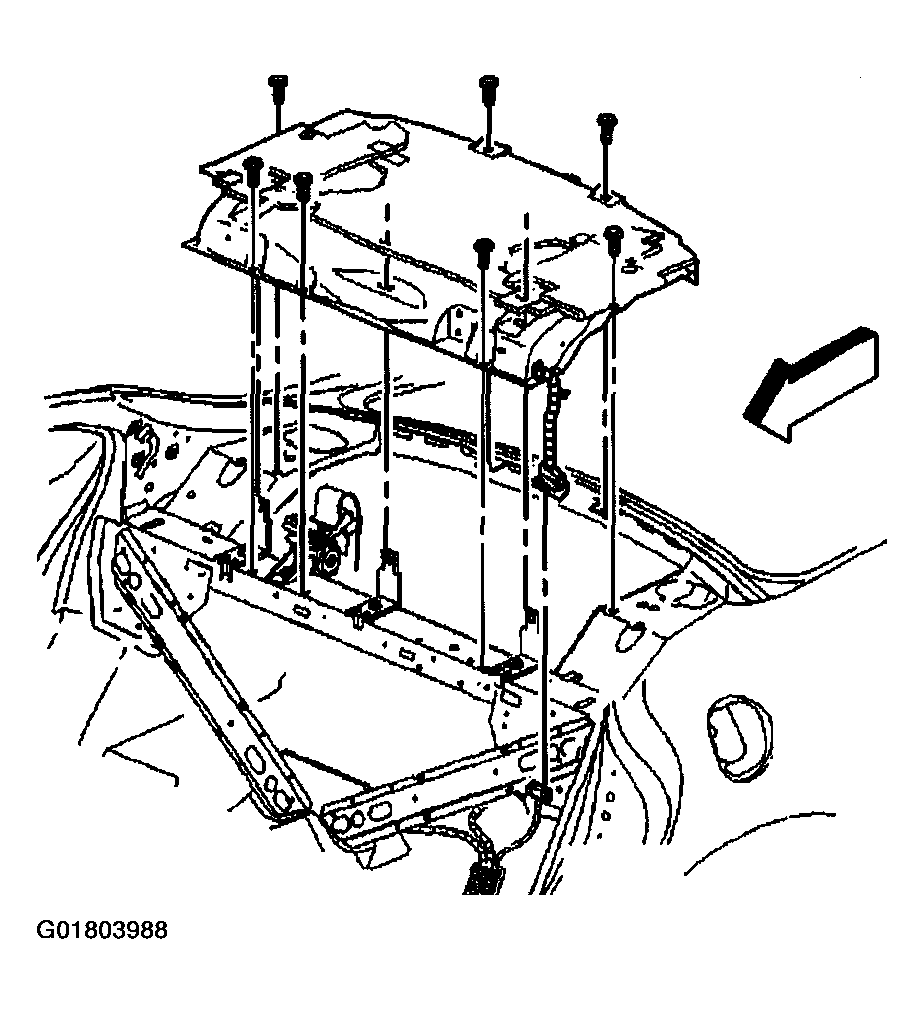

    Fig 1: Removing Rear Shelf Trip Panel Carrier
    G01803988Courtesy of GENERAL MOTORS CORP.
