Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear shelf trim panel carrier into the vehicle.
  2. Connect the electrical connector.
  3. Install the fasteners in order to secure the carrier.
    CAUTION: Refer to FASTENER NOTICE .

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  4. Install the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf  .

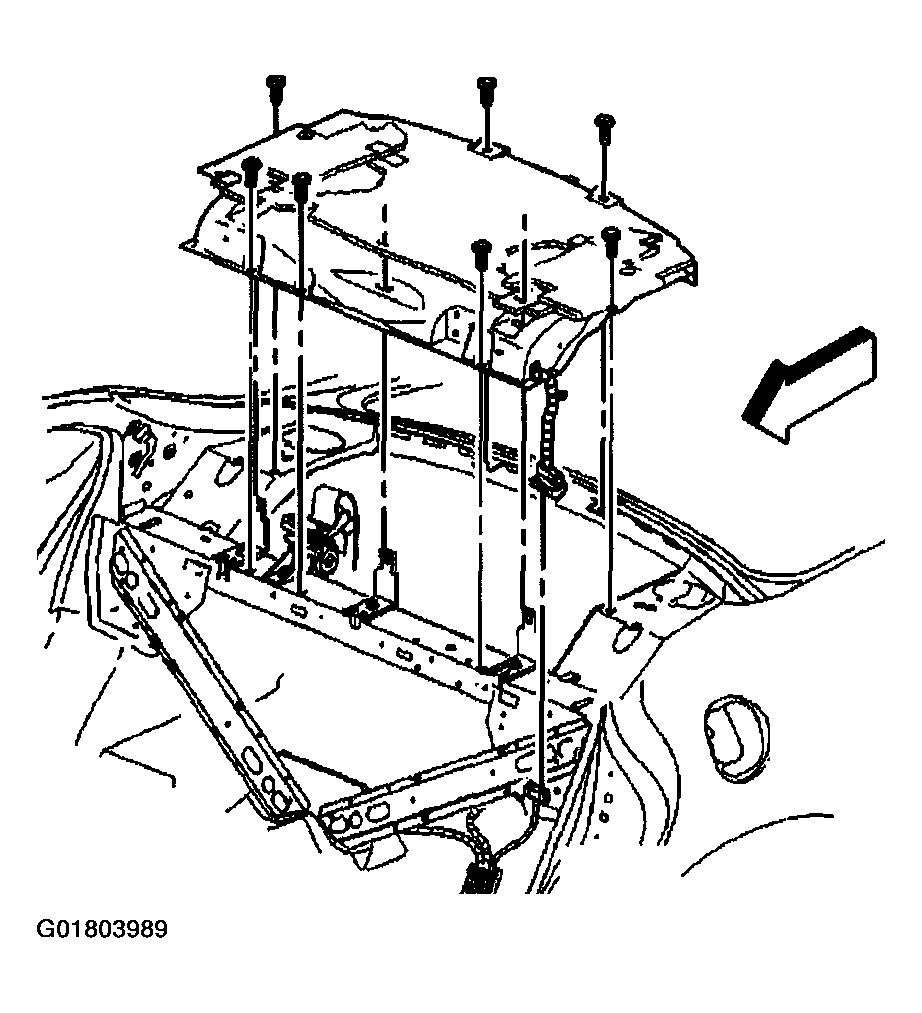

    Fig 1: Installing Rear Shelf Trip Panel Carrier
    G01803989Courtesy of GENERAL MOTORS CORP.
