Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
  3. Remove the rear window shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf  .
  4. Remove the fasteners securing the sound barrier.
  5. Remove the sound barrier from the vehicle.

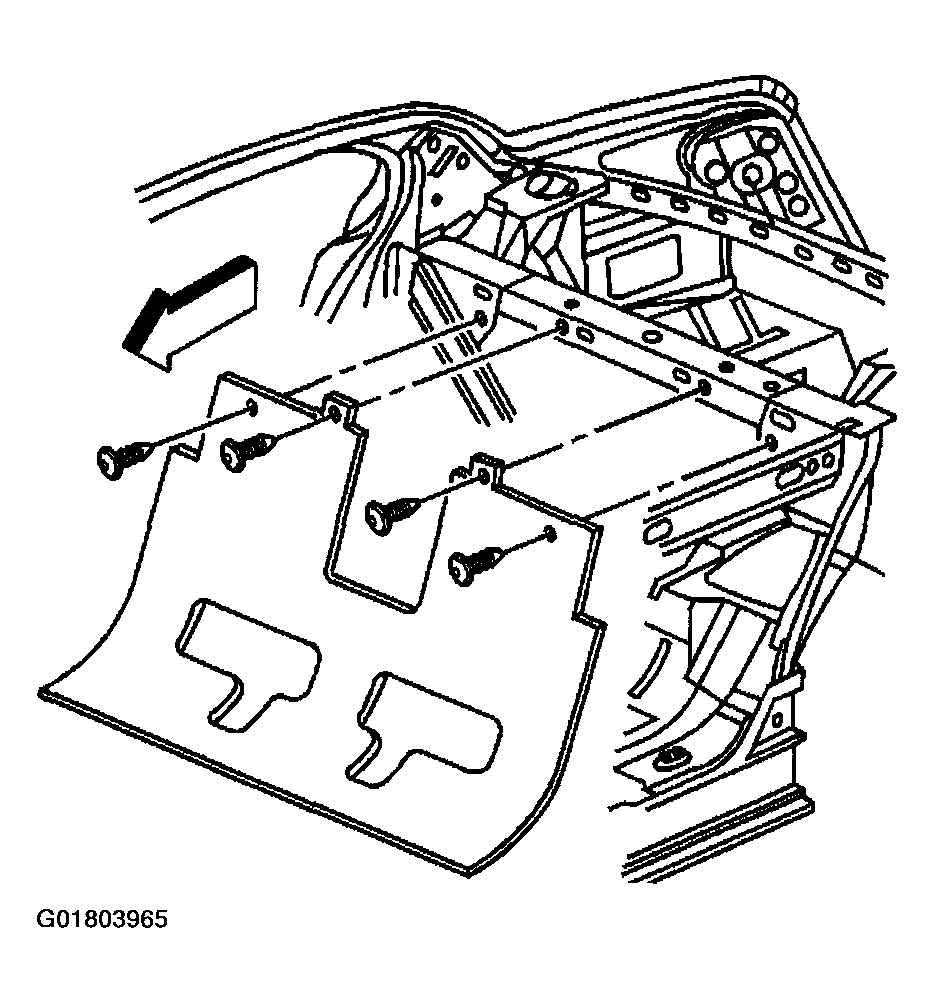

    Fig 1: Removing Rear Seat Back Sound Barrier
    G01803965Courtesy of GENERAL MOTORS CORP.
