Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sound barrier to the vehicle.
  2. Install the push in the fasteners in order to secure the sound barrier.

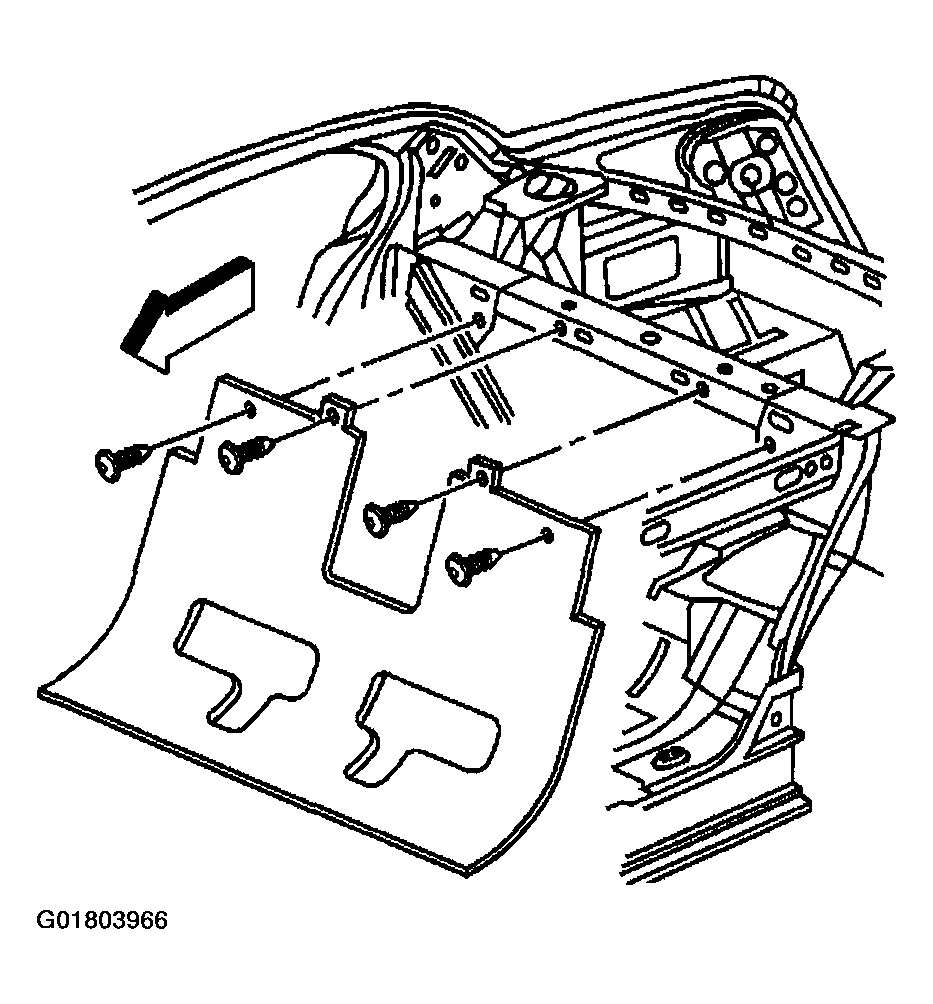

    3. Fig 1: Installing Rear Seat Back Sound Barrier
    G01803966Courtesy of GENERAL MOTORS CORP.
  3. Install the rear window shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf  .
  4. Install the rear seat back. Refer SEAT BACK REPLACEMENT -- REAR .
  5. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
