Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the windshield pillar garnish molding away from the windshield pillar to disengage the retainer clips.
  2. Remove the windshield pillar garnish molding.

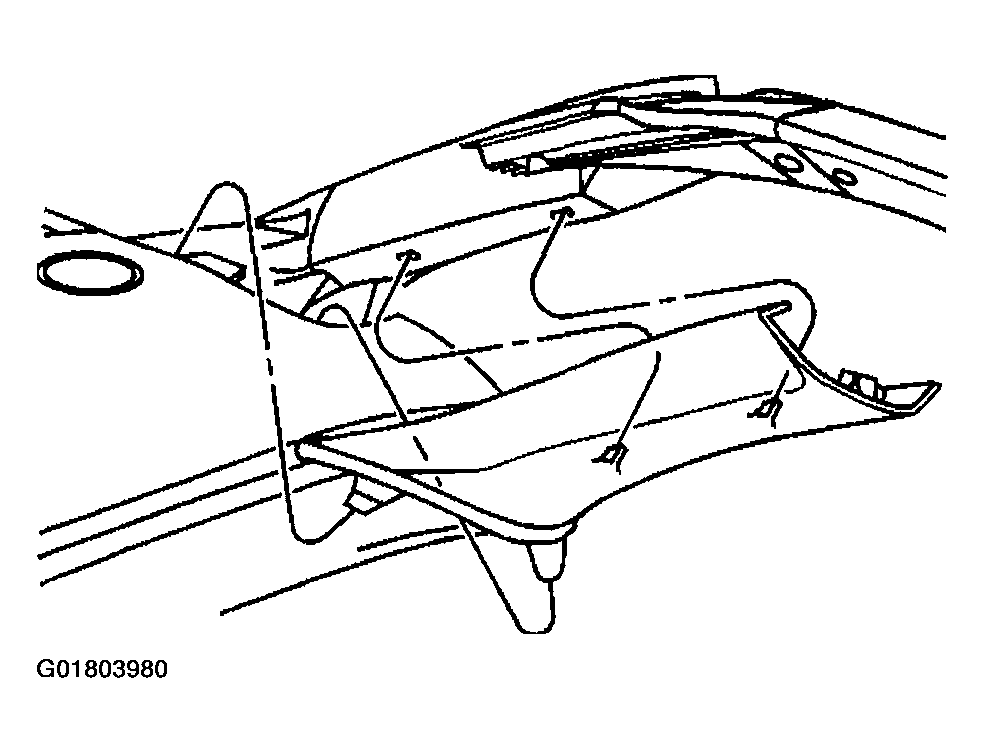

    Fig 1: Removing Windshield Pillar Garnish Molding
    G01803980Courtesy of GENERAL MOTORS CORP.
