Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the front seats. Refer to SEAT REPLACEMENT -- BUCKET .
  3. Remove the center console, if equipped. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR .
  4. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  5. Remove the center pillar garnish moldings. Refer to Garnish Molding Replacement - Center Pillar  .
  6. Remove the rear carpet retainer. Refer to Carpet Retainer Replacement  .
  7. Remove the rear carpet (2) from the vehicle.

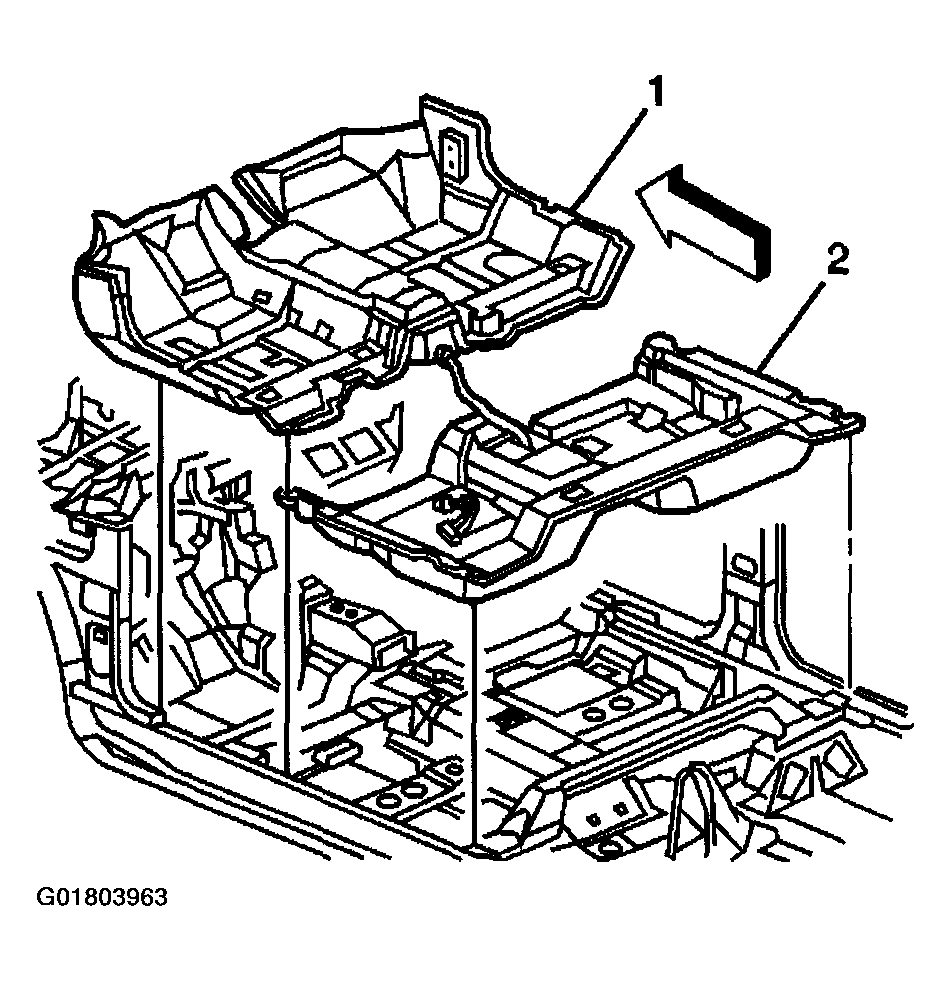

    8. Fig 1: Removing Rear Carpet
    G01803963Courtesy of GENERAL MOTORS CORP.
