Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stud plate (1) into the rear bumper impact bar bracket.
  2. Install the rear bumper impact bar to the body.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the fasteners to secure the rear bumper impact bar to the body.

    Tighten

    Tighten the fasteners to 25 N.m (18 ft lbs).

  4. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - Rear Bumper .
  5. Lower the vehicle.

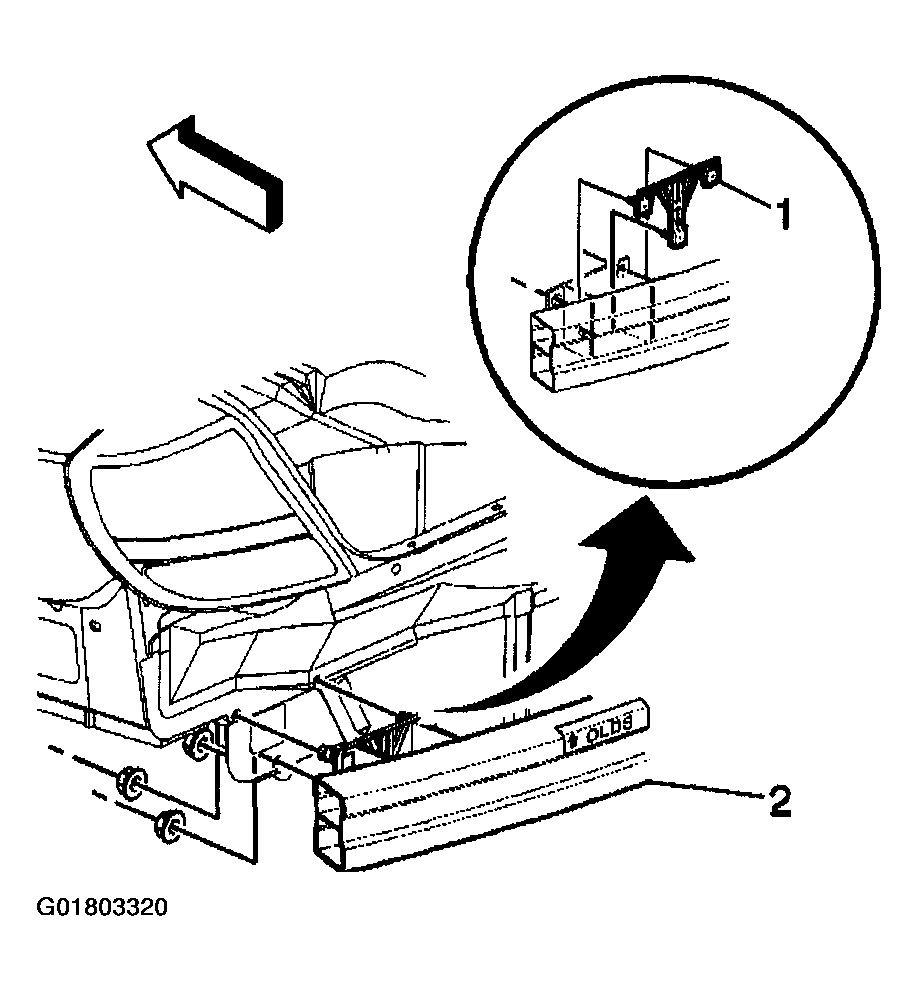

    Fig 1: Installing Rear Bumper Impact Bar
    G01803320Courtesy of GENERAL MOTORS CORP.
