Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front bumper impact bar to the front bumper brackets.
  2. Loose assemble bolt (4) through the bracket.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the bolts to secure the front bumper impact bar to the bracket.

    Tighten

    Tighten the bolts (3) first, then (4) to 25 N.m (18 ft lbs).

  4. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - Front Bumper . .
  5. Lower the vehicle.
  6. Close the hood.

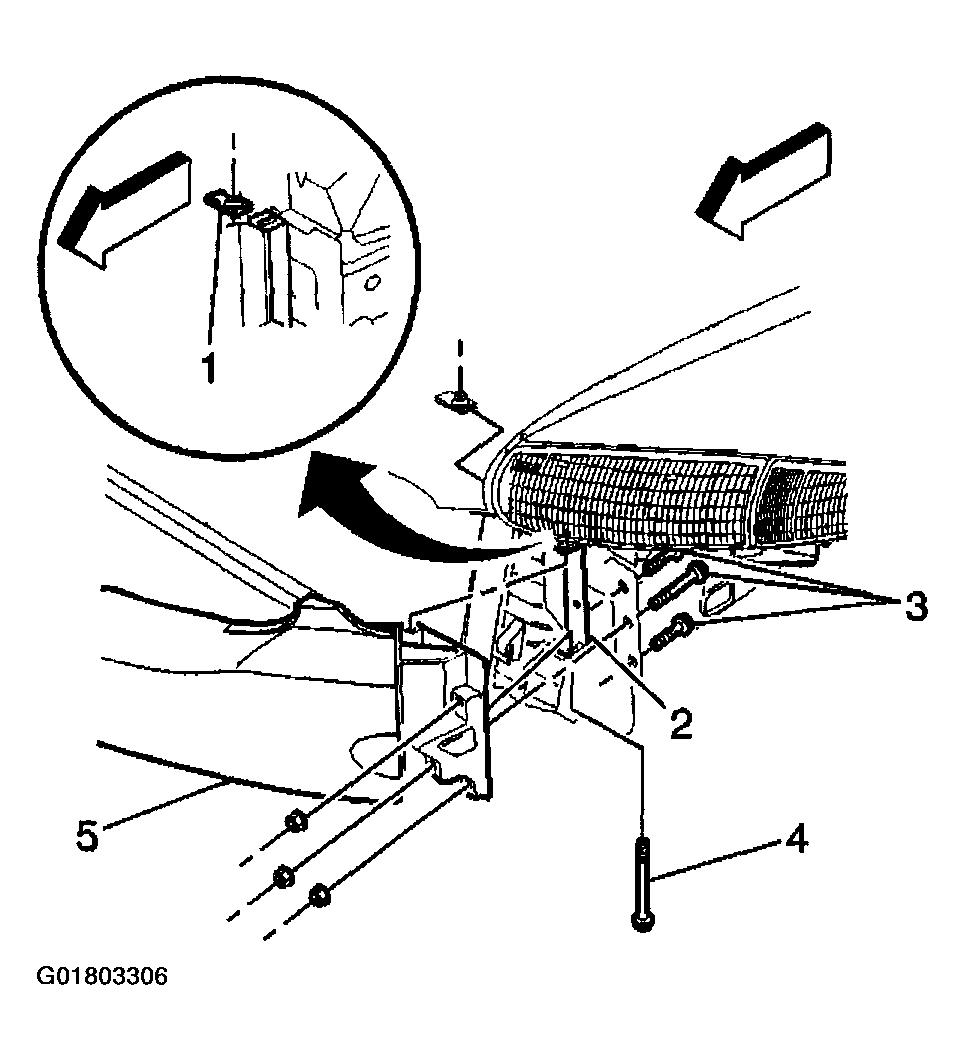

    Fig 1: Installing Font Bumper Impact Bar
    G01803306Courtesy of GENERAL MOTORS CORP.
