Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the tab on the grille into the slot in the fascia (2).
  2. Install the outboard edge of the grille to the fascia (2).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the bolt (1) to secure the grille to the fascia.

    Tighten

    Tighten the bolt, (1) to 4 N.m (35 in lbs).

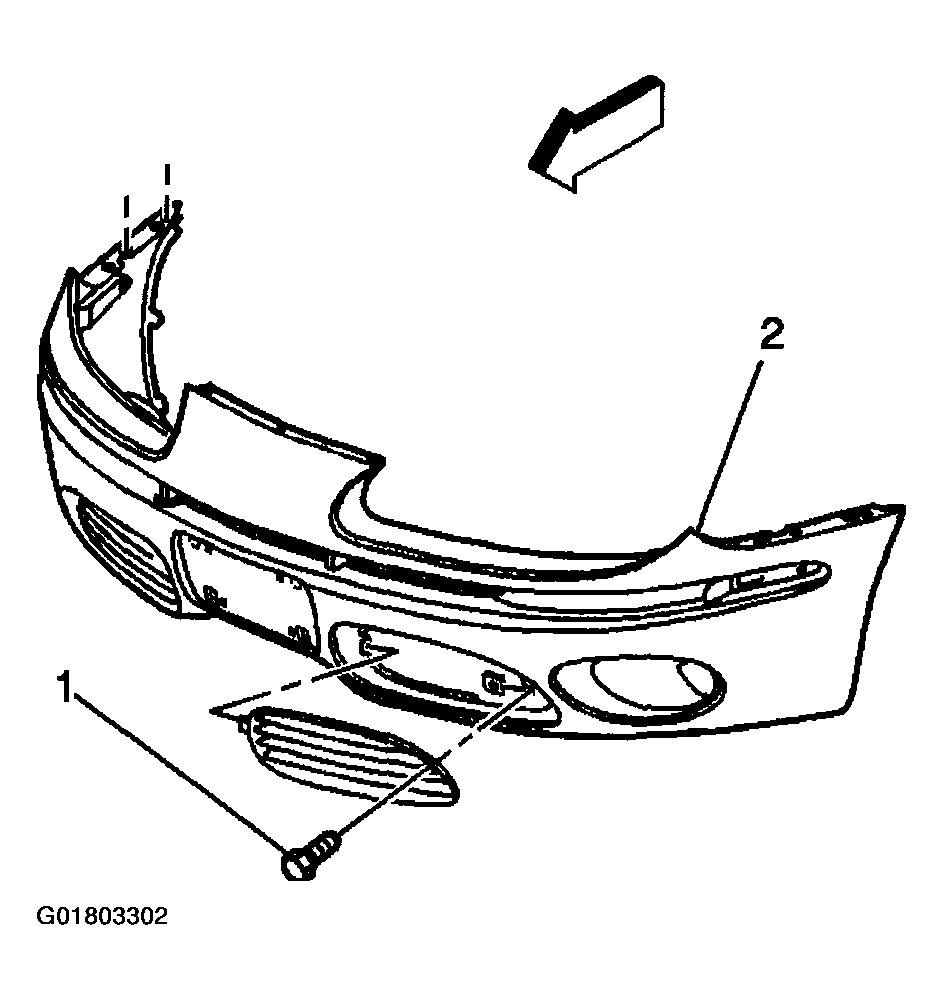

    Fig 1: Installing Fascia Grille - Front
    G01803302Courtesy of GENERAL MOTORS CORP.
