Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners securing the rear fascia extension to the vehicle.
  2. Remove the push in retainers securing the rear fascia extension to the rear fascia.
  3. Remove the rear fascia extension from the vehicle.

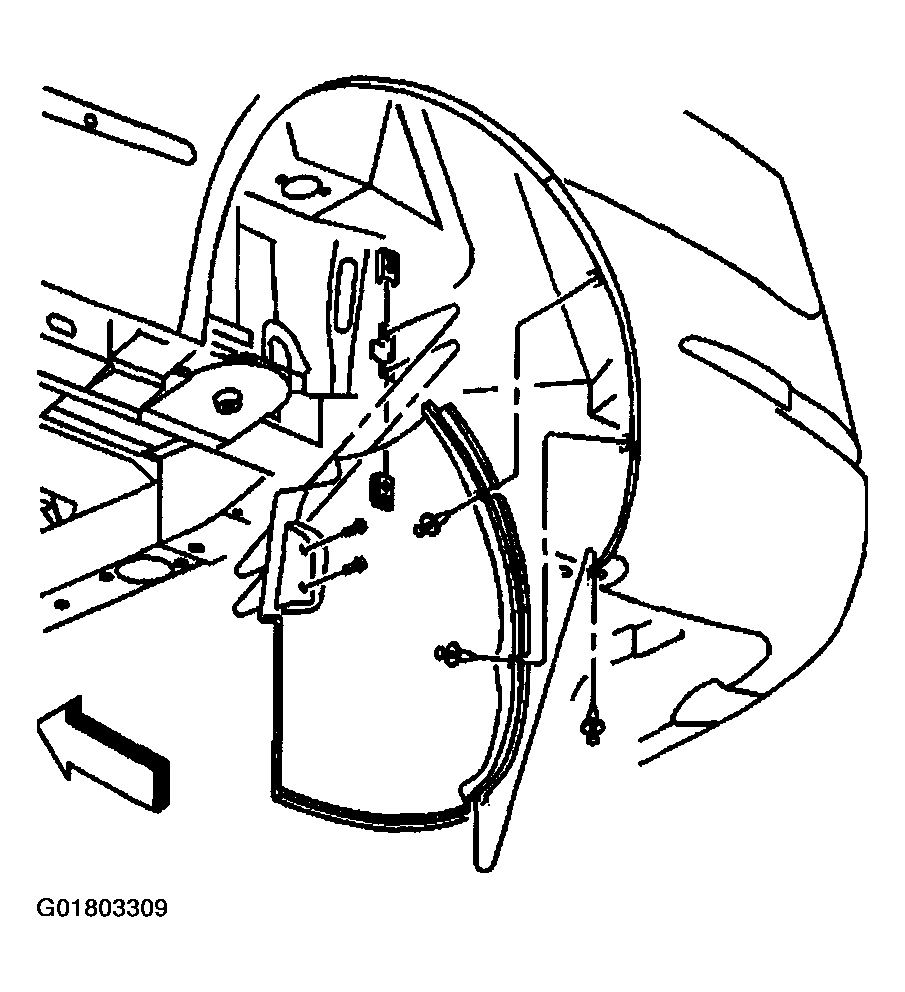

    Fig 1: Removing Rear Fascia Extension
    G01803309Courtesy of GENERAL MOTORS CORP.
