Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear fascia extension to the vehicle.
  2. Install the push in retainers in order to secure the rear fascia extension to the rear fascia.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the fascia extension fasteners to the vehicle.

    Tighten

    Tighten the fascia extension fasteners to 2 N.m (18 in lbs).

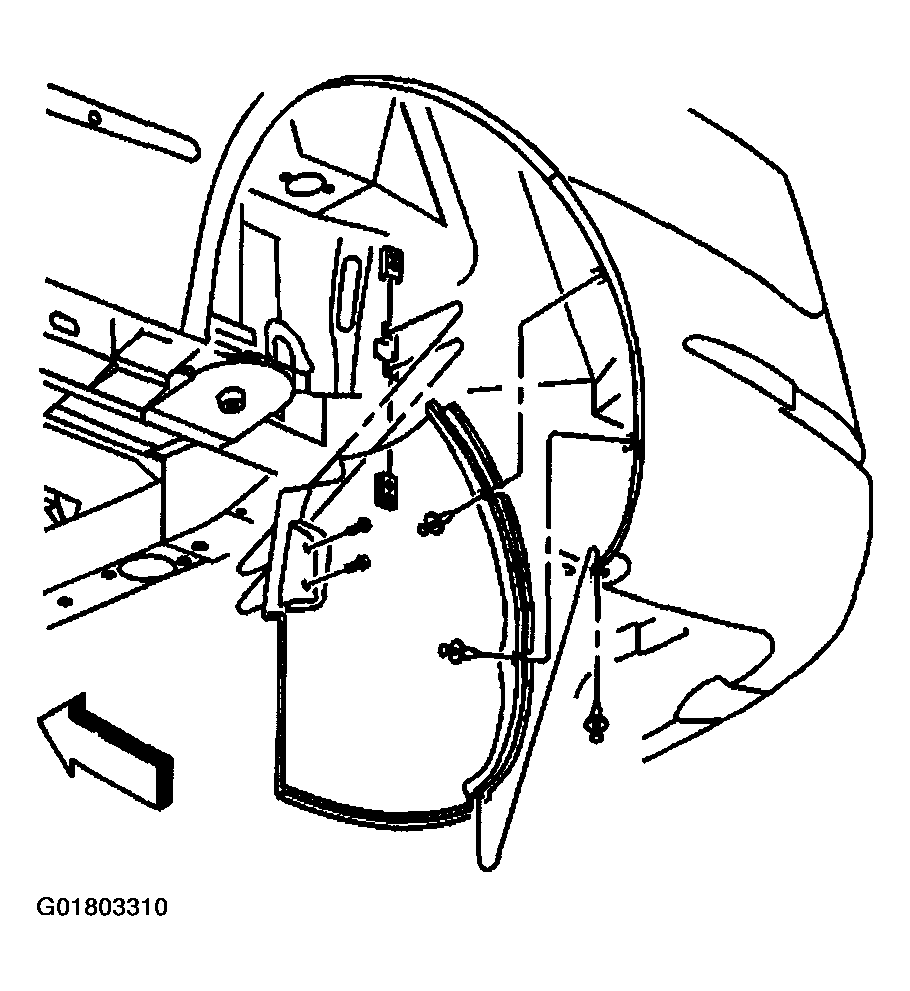

    Fig 1: Installing Rear Fascia Extension
    G01803310Courtesy of GENERAL MOTORS CORP.
