Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - Rear Bumper .
  2. Remove the fasteners (1), using a # 3 square drive bit.
  3. Remove the energy absorber from the fascia (2).

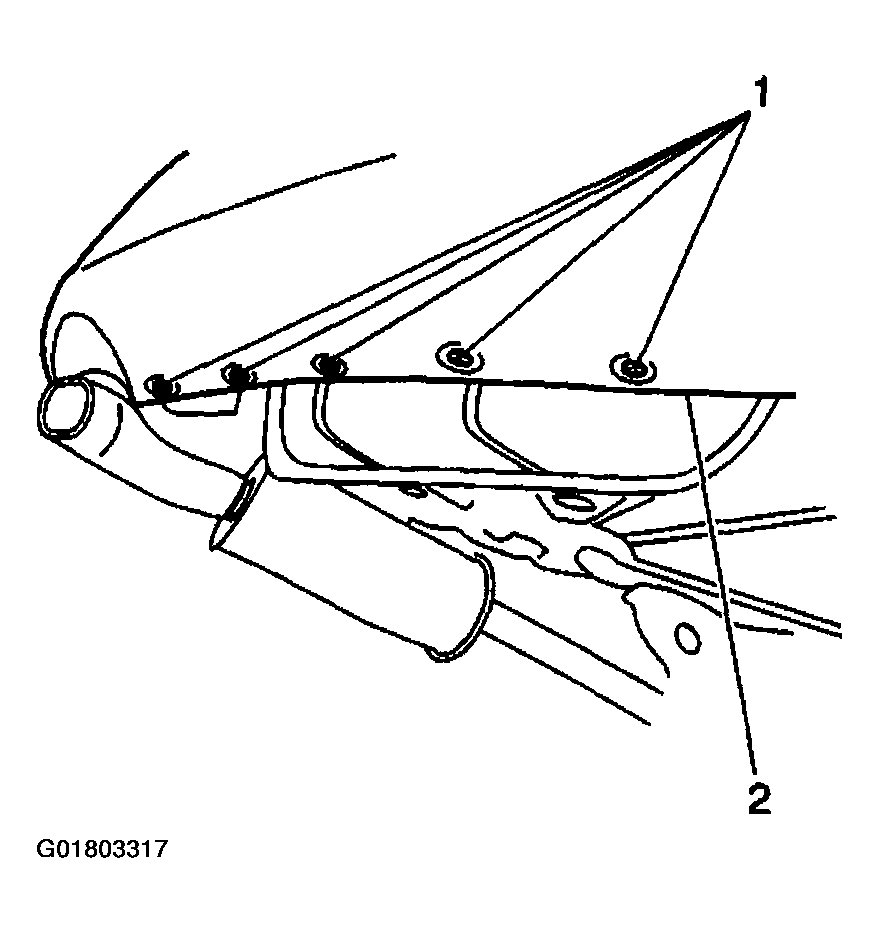

    Fig 1: Removing Rear Energy Absorber
    G01803317Courtesy of GENERAL MOTORS CORP.
