Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - Front Bumper . .
  2. Remove the screws (1) securing the energy absorber to the fascia, using a square drive bit.
  3. Remove the energy absorber from the fascia.

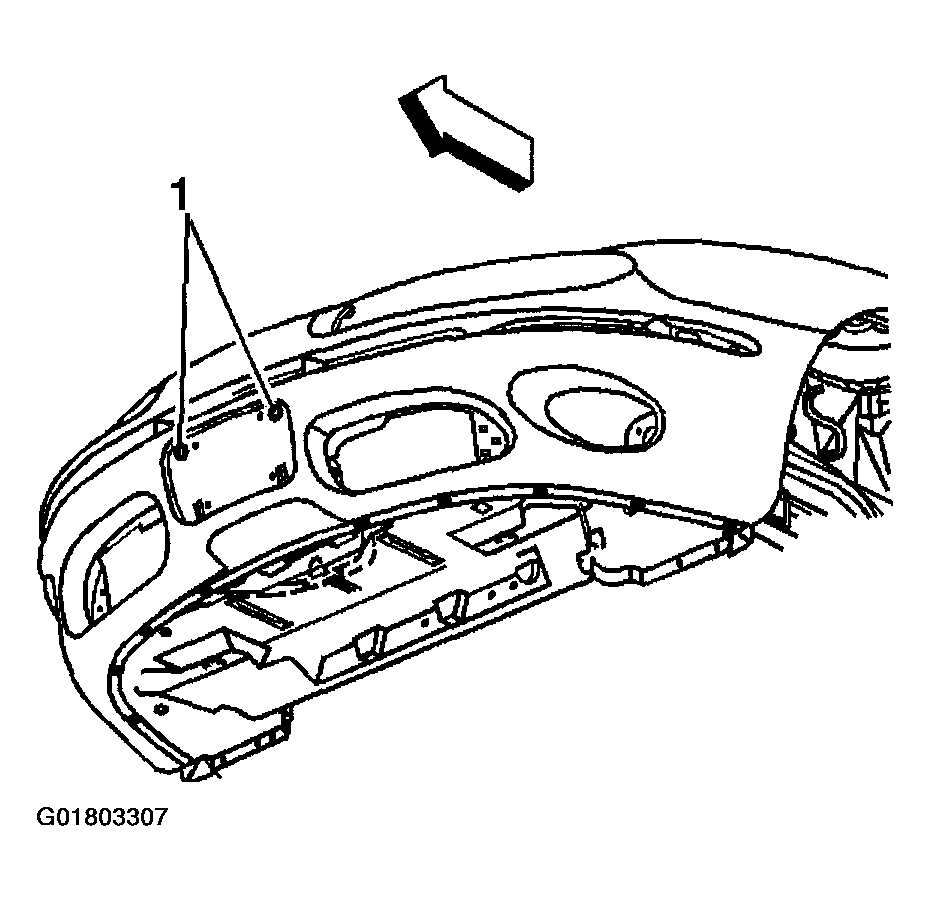

    Fig 1: Removing Front Energy Absorber
    G01803307Courtesy of GENERAL MOTORS CORP.
