Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - Front Bumper .
  2. Remove the front impact bar. Refer to IMPACT BAR REPLACEMENT - Front Bumper .
  3. Remove the fastener retaining the rear of the front bumper impact bar bracket.
  4. Remove the fasteners retaining the front of the front bumper impact bar bracket.
  5. Remove the front bumper impact bar bracket from the vehicle.

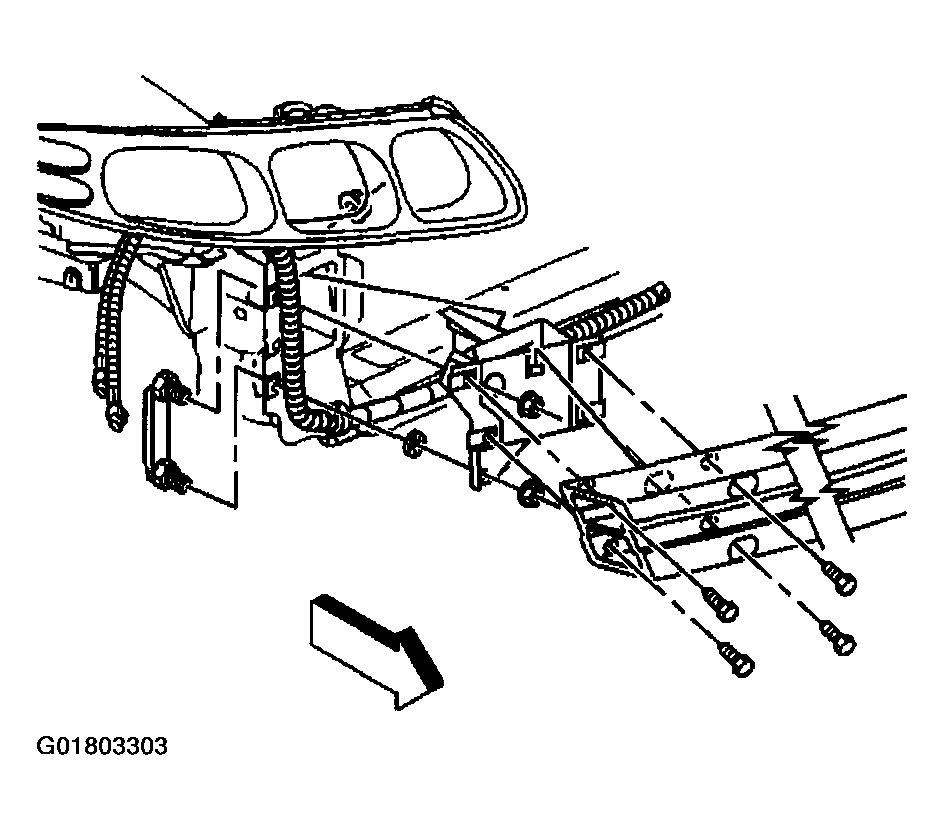

    Fig 1: Removing Front Bumper Bracket
    G01803303Courtesy of GENERAL MOTORS CORP.
