Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheelhouse liner (1).
  2. Install the wheelhouse liner push-in retainers (1).

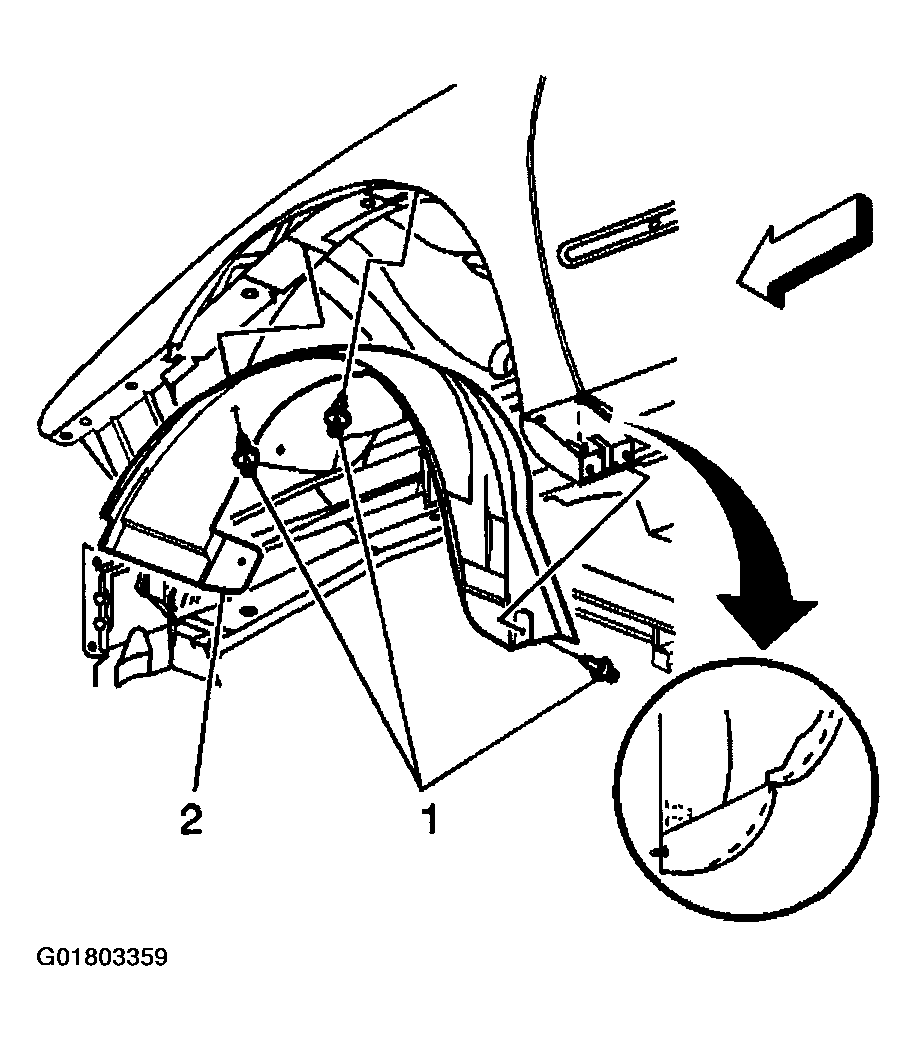

    Fig 1: Installing Wheelhouse Liner
    G01803359Courtesy of GENERAL MOTORS CORP.
