Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper tie bar (3) onto the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the upper tie bar fasteners (2).

    Tighten

    Tighten the upper tie bar fasteners to 10 N.m (89 in lbs).

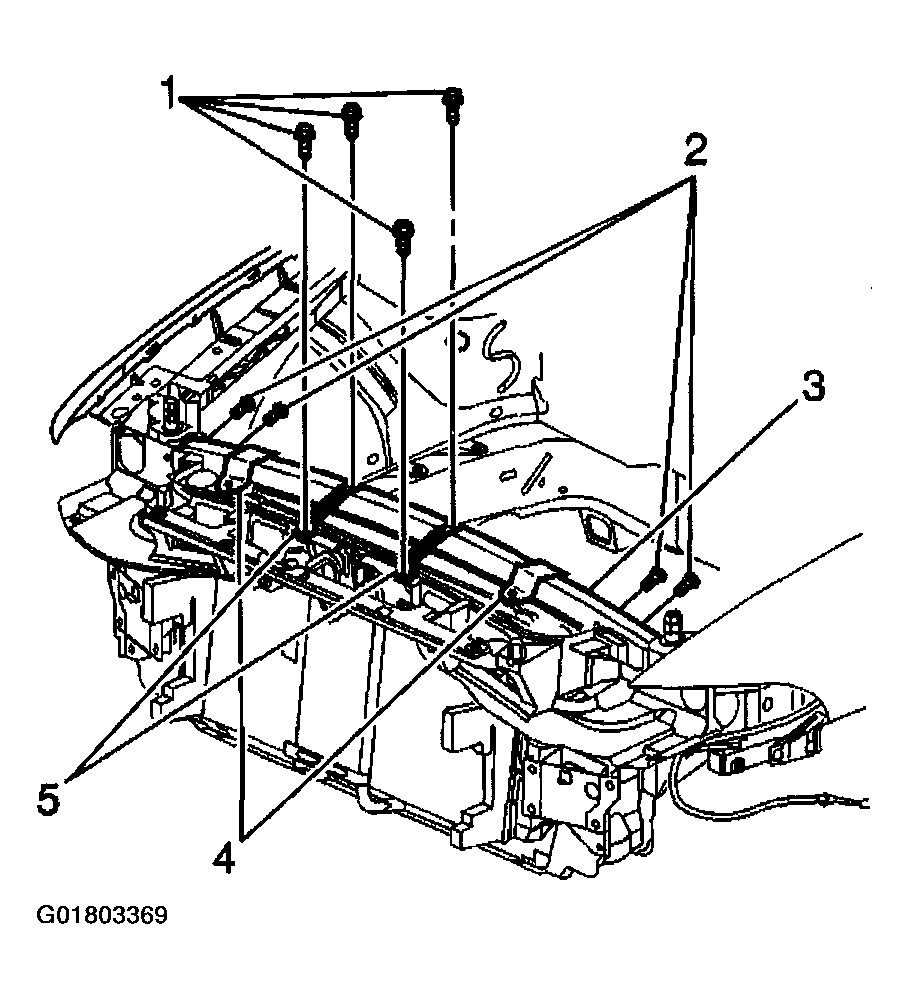

    3. Fig 1: Installing Tie Bar
    G01803369Courtesy of GENERAL MOTORS CORP.
  3. Reposition the PCM back to its original position.
  4. Install the air cleaner assembly.
  5. Install the radiator support brackets (4). Refer to Radiator Support Replacement  .
  6. Install the headlamp/fascia panel support brackets (5).
  7. Install the headlamp/fascia panel support bracket fasteners (1).

    Tighten

    Tighten the headlamp/fascia panel support bracket fasteners to 9 N.m (80 in lbs).
