Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-in retainers securing the outer rear hood seal to the body.
  2. Remove the outer rear hood seal from the vehicle.

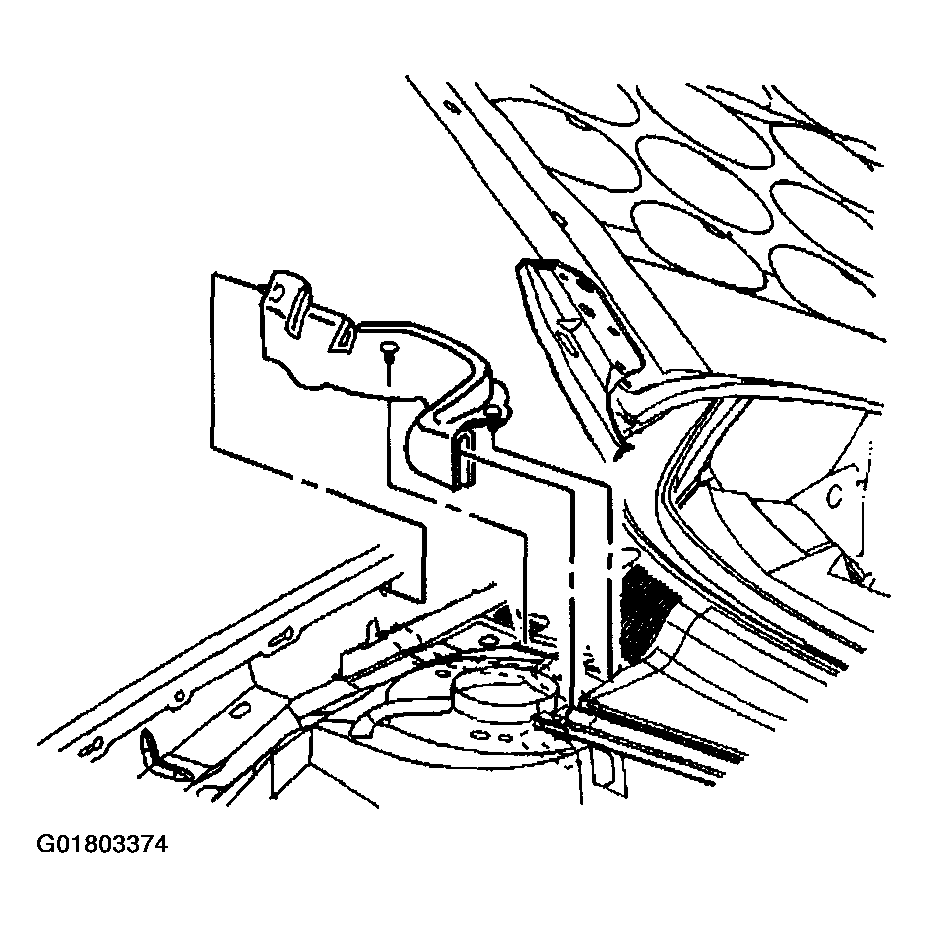

    Fig 1: Removing Outer Rear Hood Seal
    G01803374Courtesy of GENERAL MOTORS CORP.
  3. Starting on either side, work the center rear hood seal off by pulling it straight away from the flange.
  4. Remove the seal from the vehicle.

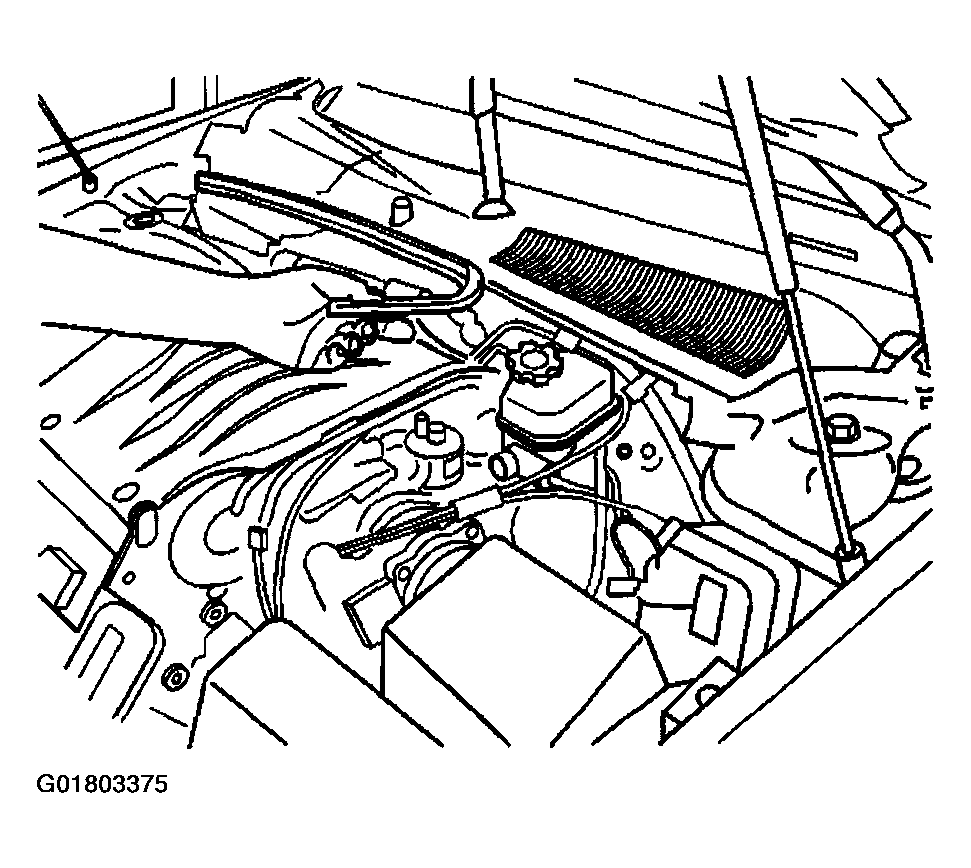

    Fig 2: Removing Center Rear Hood Seal
    G01803375Courtesy of GENERAL MOTORS CORP.
