Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a common trim pad clip removal tool, carefully work the seal (1) off the hood from side to side.
  2. Remove the front hood seal from the hood.

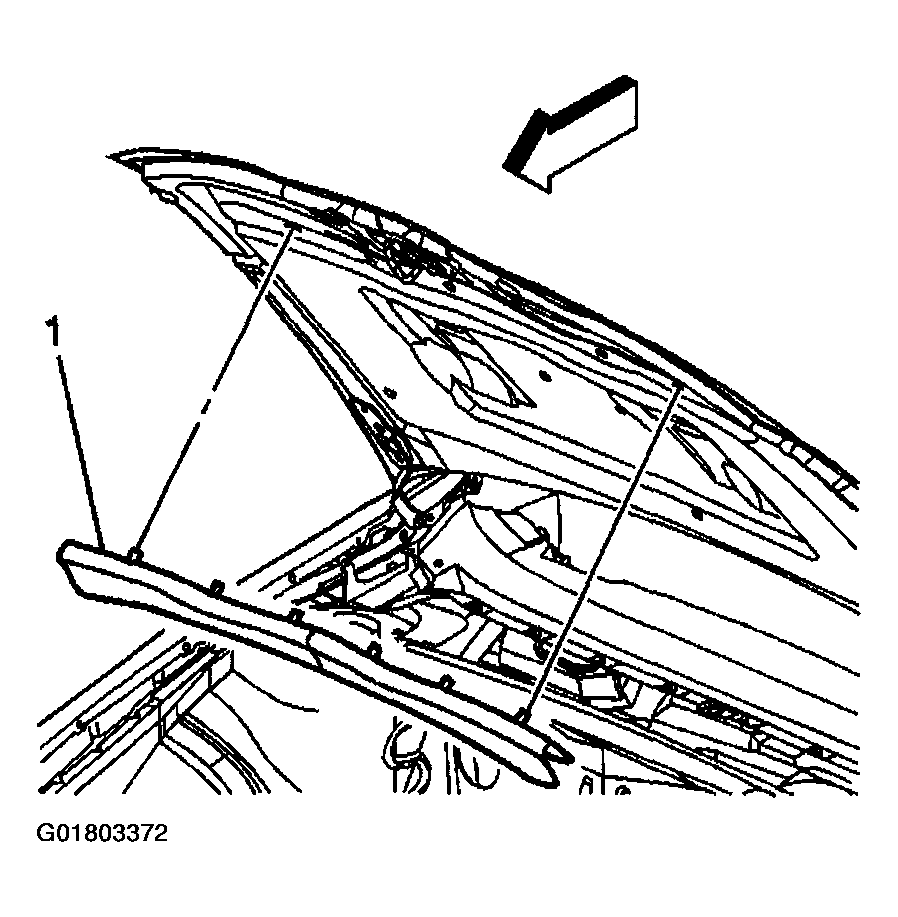

    Fig 1: Removing Hood Front Seal
    G01803372Courtesy of GENERAL MOTORS CORP.
