Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the front hood seal (1) and retainers to the hood.
  2. Install the seal by pushing the retainers into the hood. Once the seal is fastened to the hood be sure that all of the retainers are fully seated in their holes.

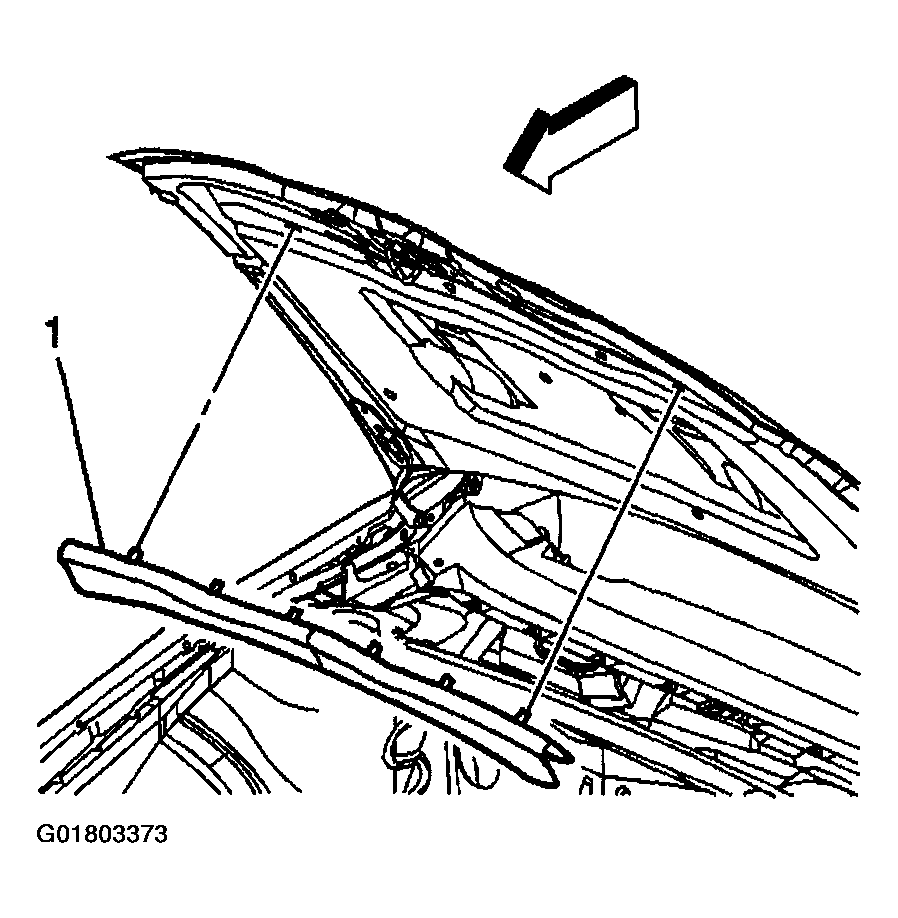

    Fig 1: Installing Hood Front Seal
    G01803373Courtesy of GENERAL MOTORS CORP.
