Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood striker to the marks on the underside of the hood.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fasteners to retain the hood striker to the hood.

    Tighten

    Tighten the fasteners to 9 N.m (80 in lbs).

  3. Close the hood.

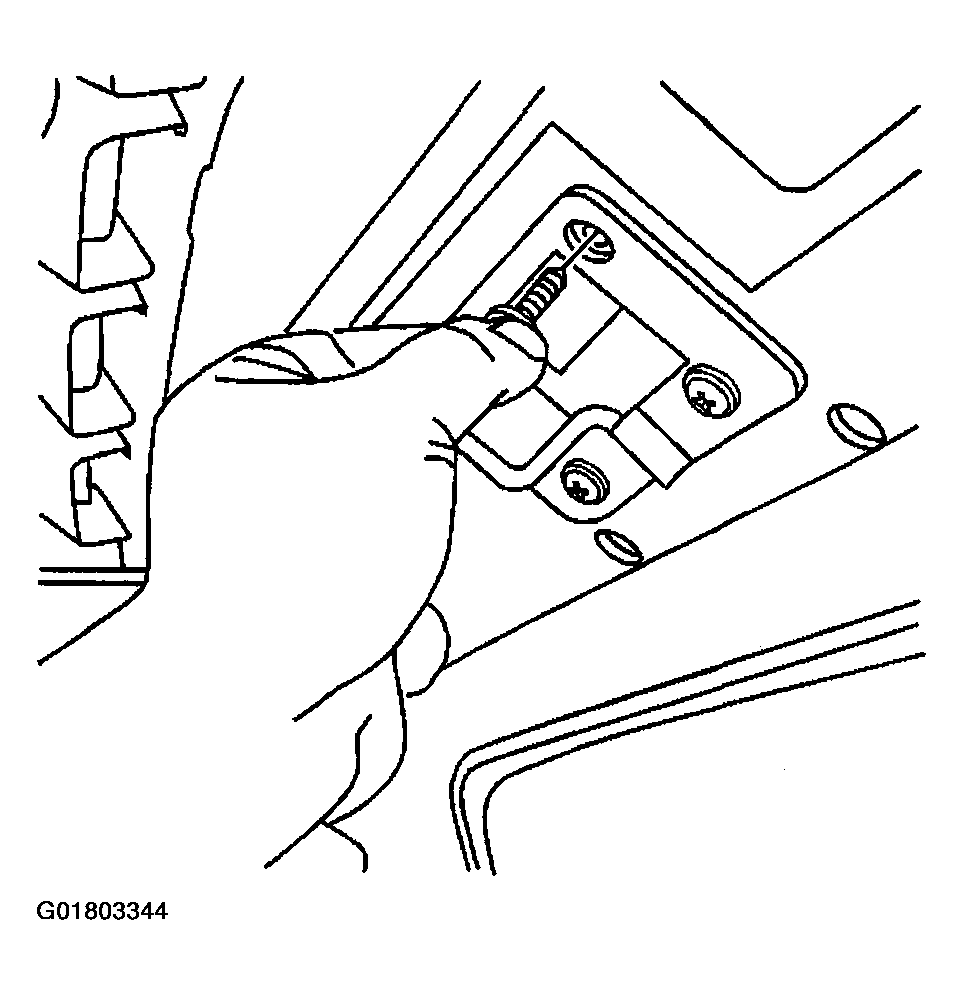

    Fig 1: Installing Hood Latch Striker
    G01803344Courtesy of GENERAL MOTORS CORP.
