Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood latch. Refer to Hood Latch Replacement  .
  3. Disconnect the hood release cable (1) from the hood latch (2).

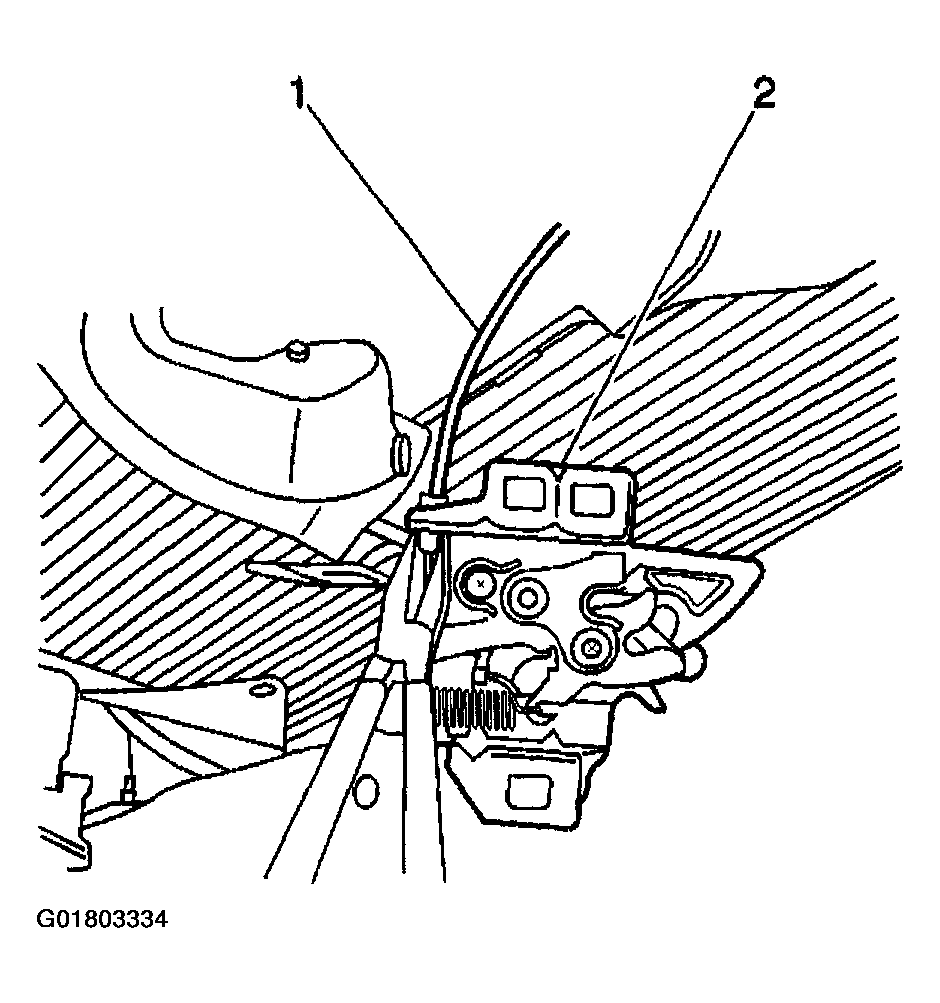

    4. Fig 1: Disconnecting Hood Release Cable
    G01803334Courtesy of GENERAL MOTORS CORP.
  4. Tie a piece of string around the hood release cable. This will ease the installation of the hood release cable through the engine compartment.
  5. Remove the front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT -- FRONT .
  6. Remove the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front  .
  7. Open the clips (1) retaining the hood release cable (2) to the vehicle.

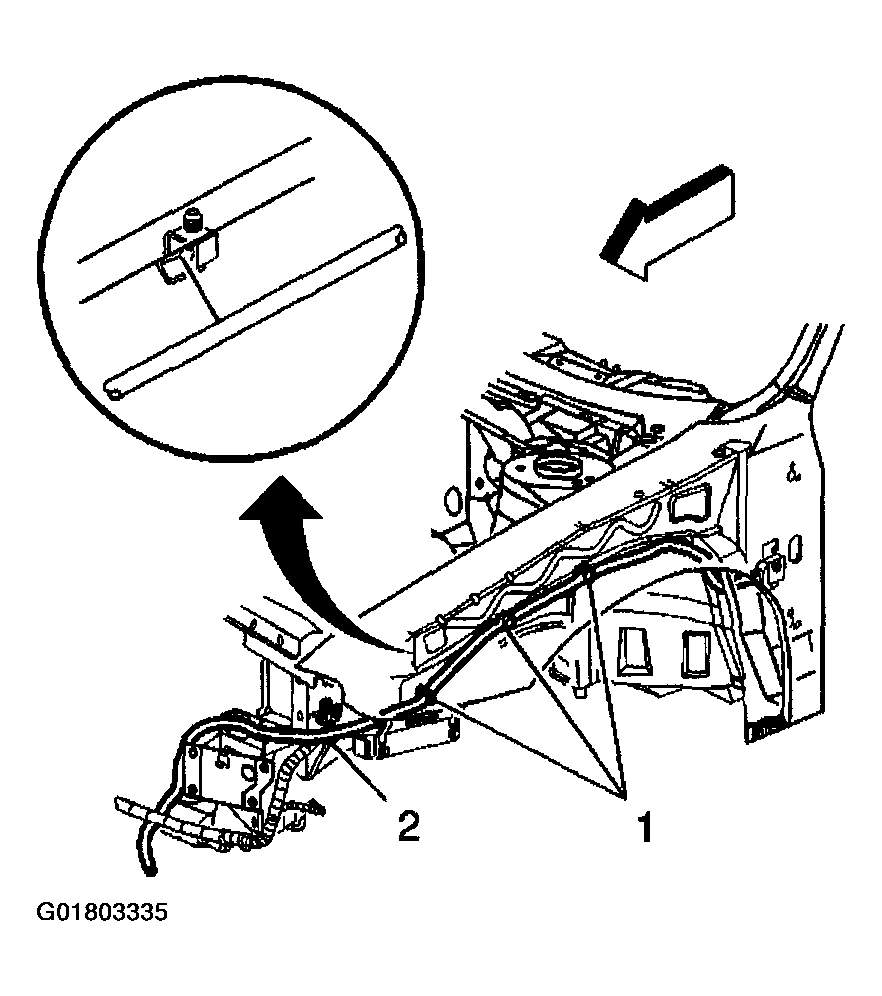

    Fig 2: Opening Hood Release Cable Clips
    G01803335Courtesy of GENERAL MOTORS CORP.
  8. Remove the screws (2) retaining the hood release handle (1) to the vehicle.
  9. Disconnect the hood release cable from the hood release handle (1).

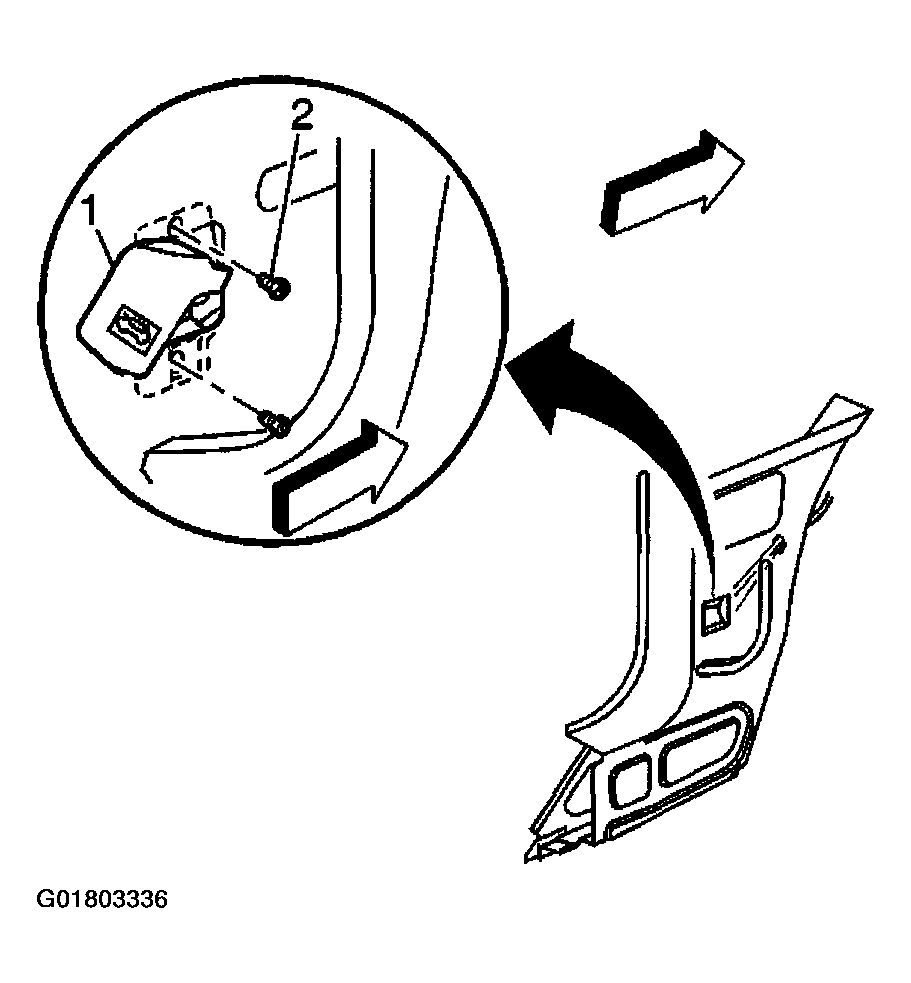

    10. Fig 3: Removing Hood Release Handle
    G01803336Courtesy of GENERAL MOTORS CORP.
  10. Tie a piece of string around the hood release cable. This will ease the installation of the hood release cable through the passenger compartment.
  11. Remove the hood release cable grommet (2) from the wheel opening.
  12. Remove the hood release cable from the vehicle.

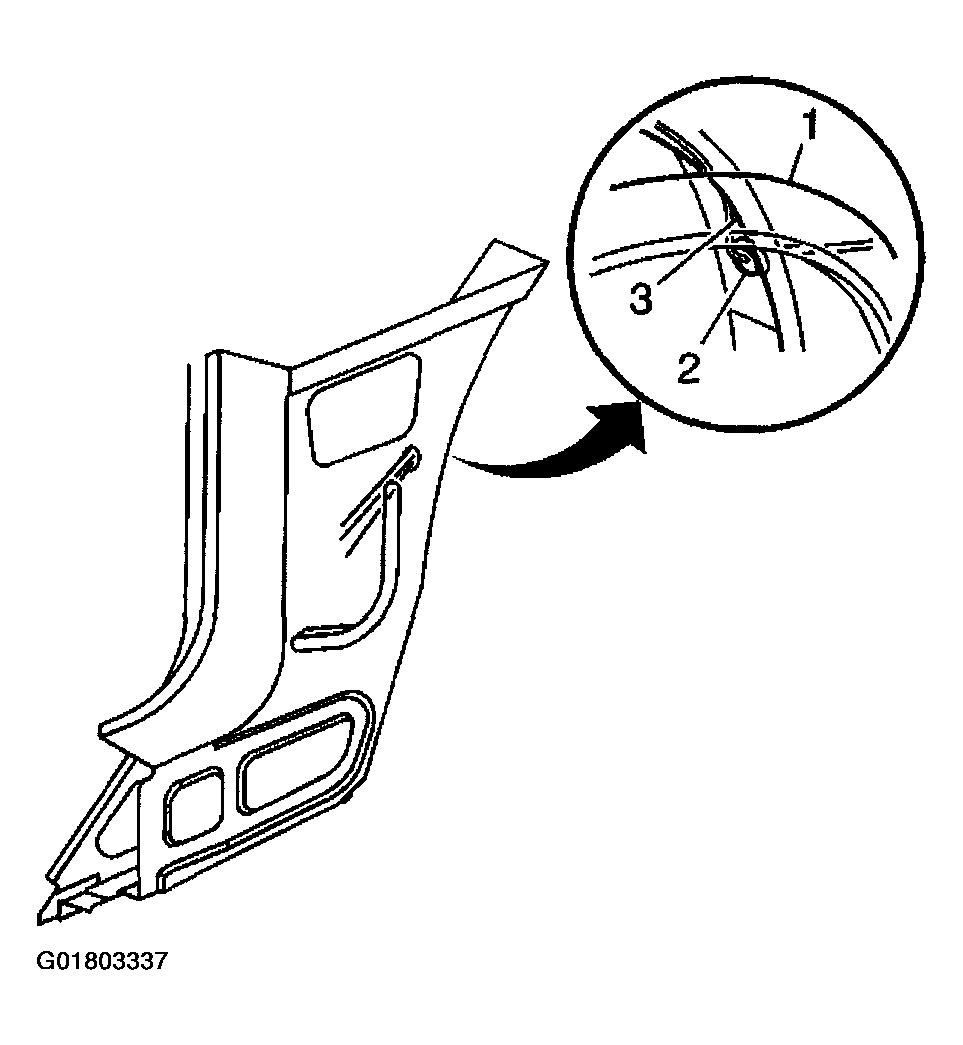

    Fig 4: Removing Hood Release Cable
    G01803337Courtesy of GENERAL MOTORS CORP.
