Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the Front Hood Seal. Refer to Seal Replacement - Hood Front  .
  3. Remove the push in retainers retaining the hood insulator to the hood.
  4. Remove the hood insulator from the hood.

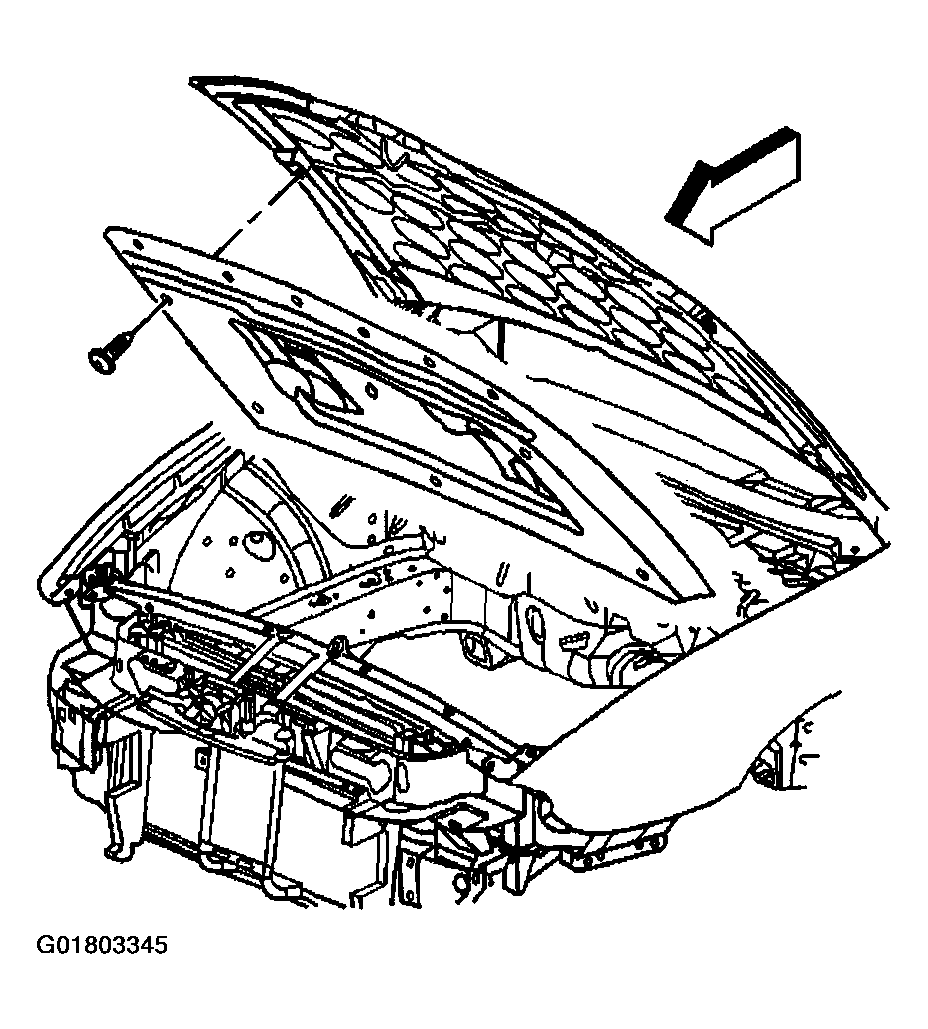

    Fig 1: Removing Hood Insulator
    G01803345Courtesy of GENERAL MOTORS CORP.
