Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia extension. Refer to TRACTION OFF INDICATOR INOPERATIVE (W/NW9) .
  2. Remove the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front  .
  3. Remove the push in retainers (2) from the front fender sound insulator (1).
  4. Remove the front fender sound insulator (1) from the vehicle.

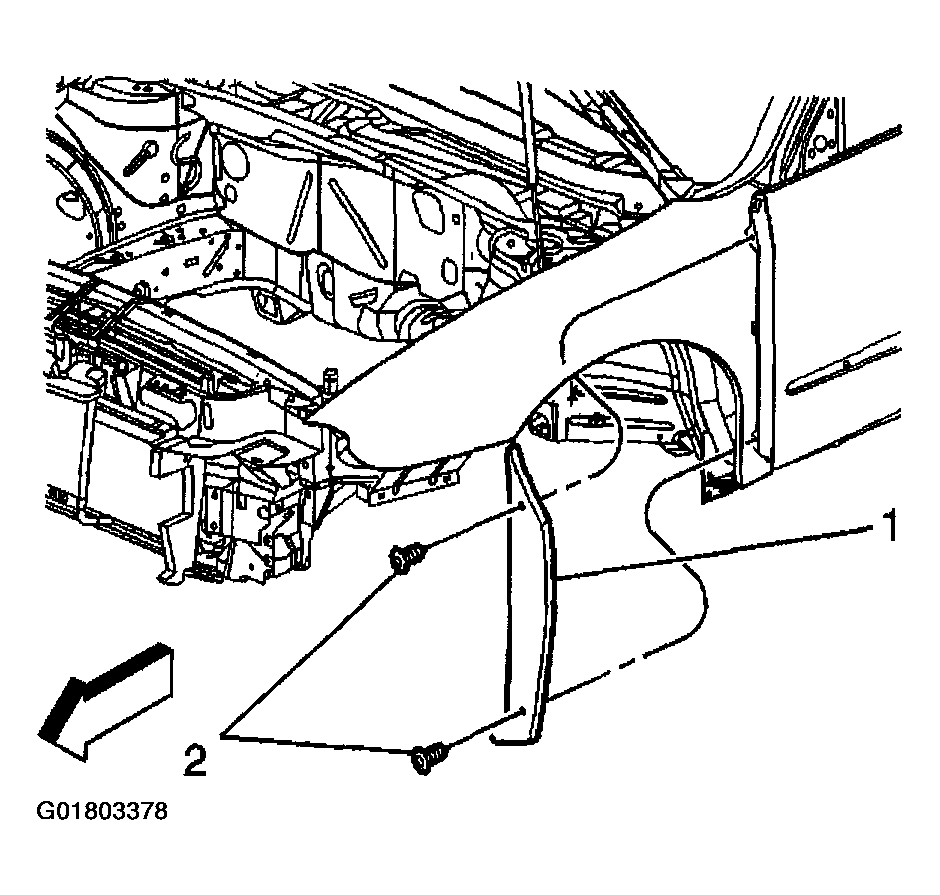

    Fig 1: Removing Front Fender Sound Insulator
    G01803378Courtesy of GENERAL MOTORS CORP.
