Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front  .
  2. Remove the push in retainer (2) from the cowl drain valve (3).
  3. Remove the cowl drain valve (3) from the vehicle.

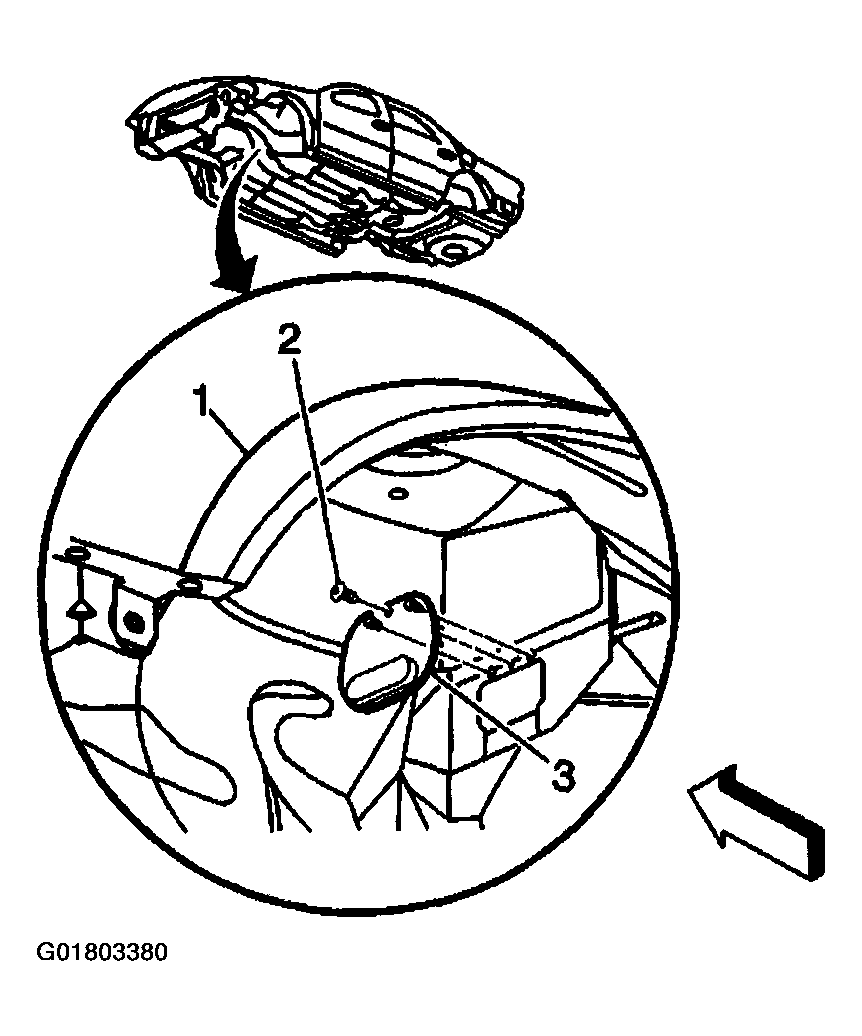

    Fig 1: Removing Cowl Drain Valve
    G01803380Courtesy of GENERAL MOTORS CORP.
