Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cowl drain valve (3) and push in retainers (2) to the vehicle.
  2. Install the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front  .

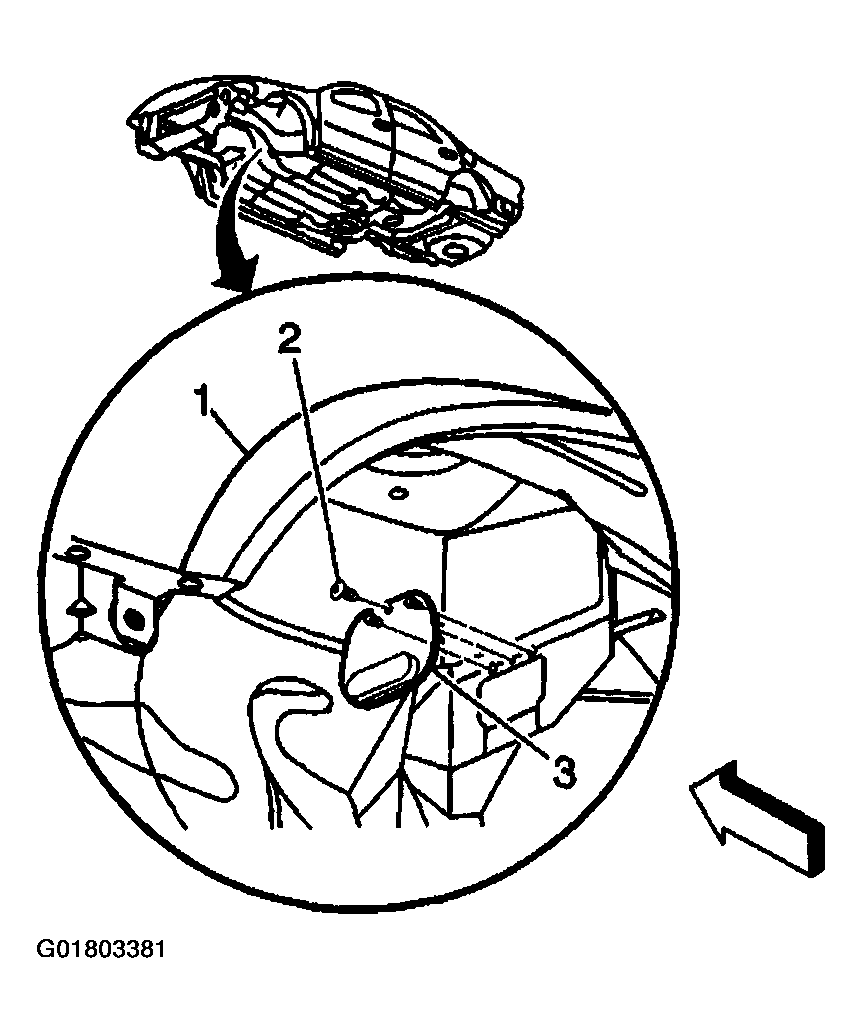

    Fig 1: Installing Cowl Drain Valve
    G01803381Courtesy of GENERAL MOTORS CORP.
