Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Using a small flat bladed tool, release the clip retaining the hood assist rod to the lower assist rod ball stud.
  3. Using a small flat bladed tool, release the clip retaining the hood assist rod to the upper assist rod ball stud.

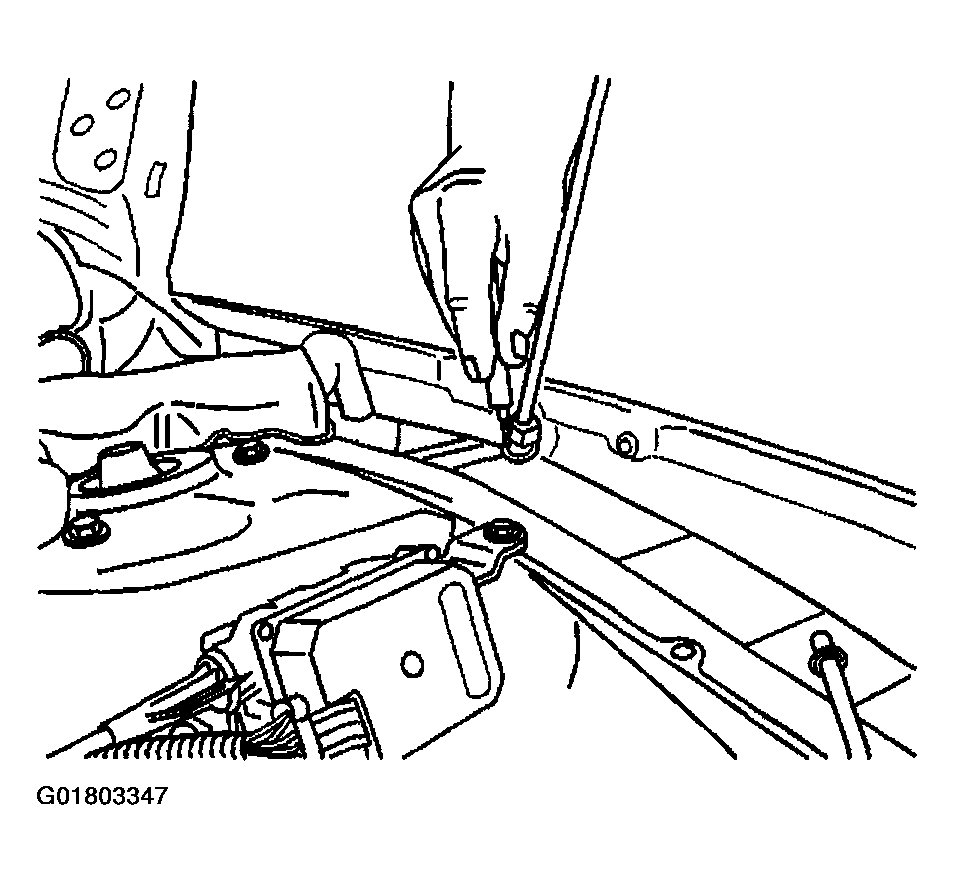

    Fig 1: Releasing Hood Assist Rod To Upper Assist Rod Ball Stud Clip
    G01803347Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to LIFTGATE ASSIST ROD NOTICE .
  4. Remove the hood assist rod (2) from the vehicle.

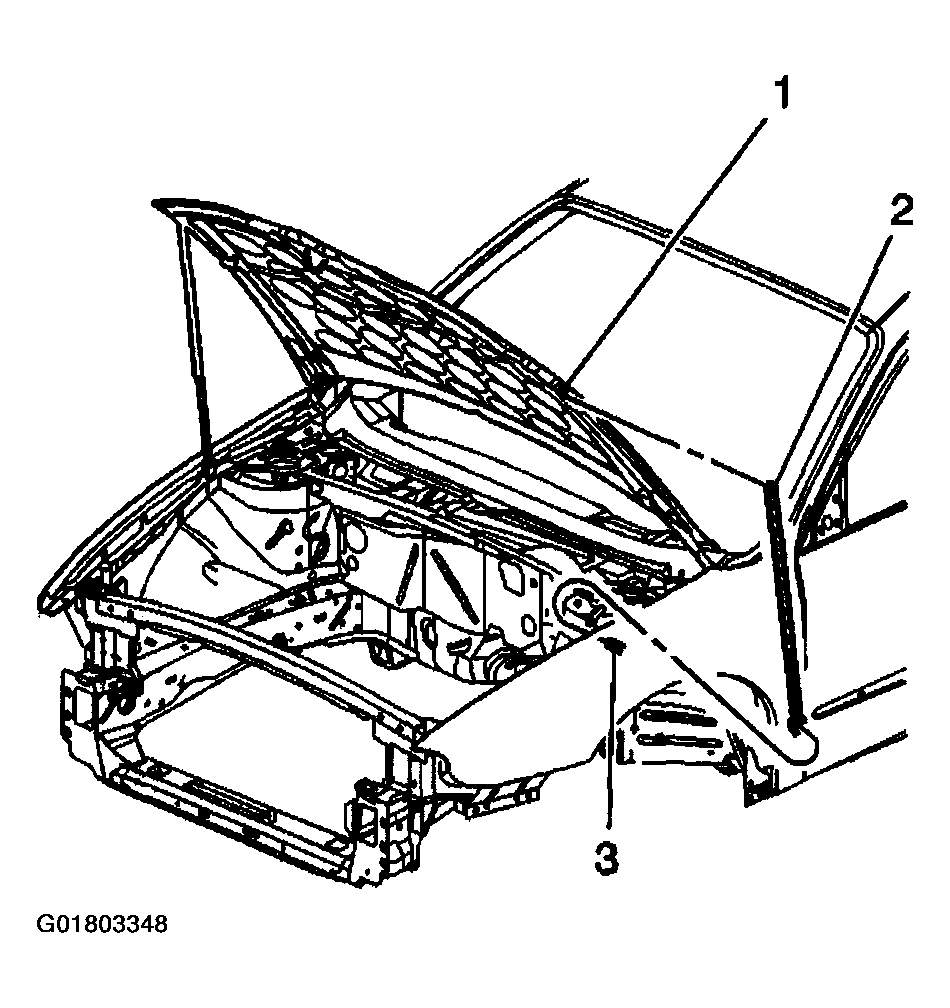

    Fig 2: Removing Hood Assist Rod
    G01803348Courtesy of GENERAL MOTORS CORP.
