Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the hood assist rod (2) onto the upper hood assist rod ball stud (1).
  2. Press the hood assist rod (2) onto the lower hood assist rod ball stud (3).
  3. Ensure that both clips are fully seated on the hood assist rod (2).
  4. Close the hood.

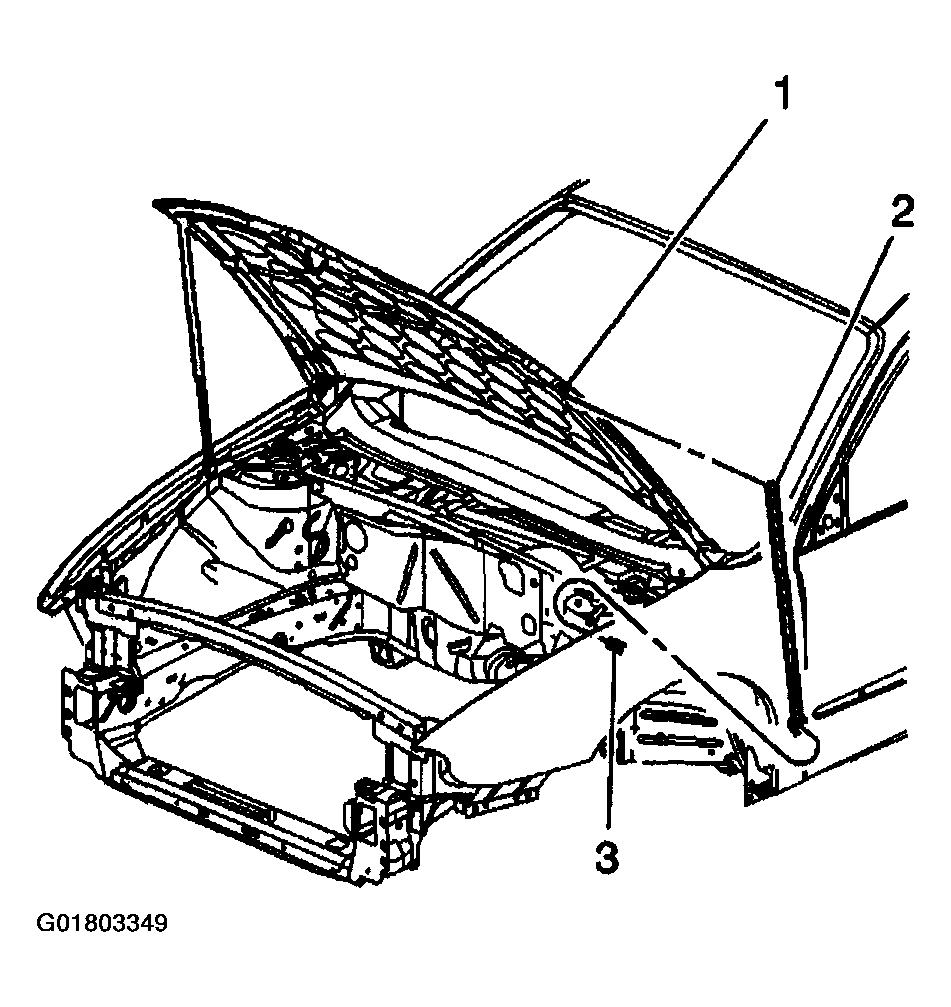

    Fig 1: Installing Hood Assist Rod
    G01803349Courtesy of GENERAL MOTORS CORP.
