Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to FASTENER NOTICE
.

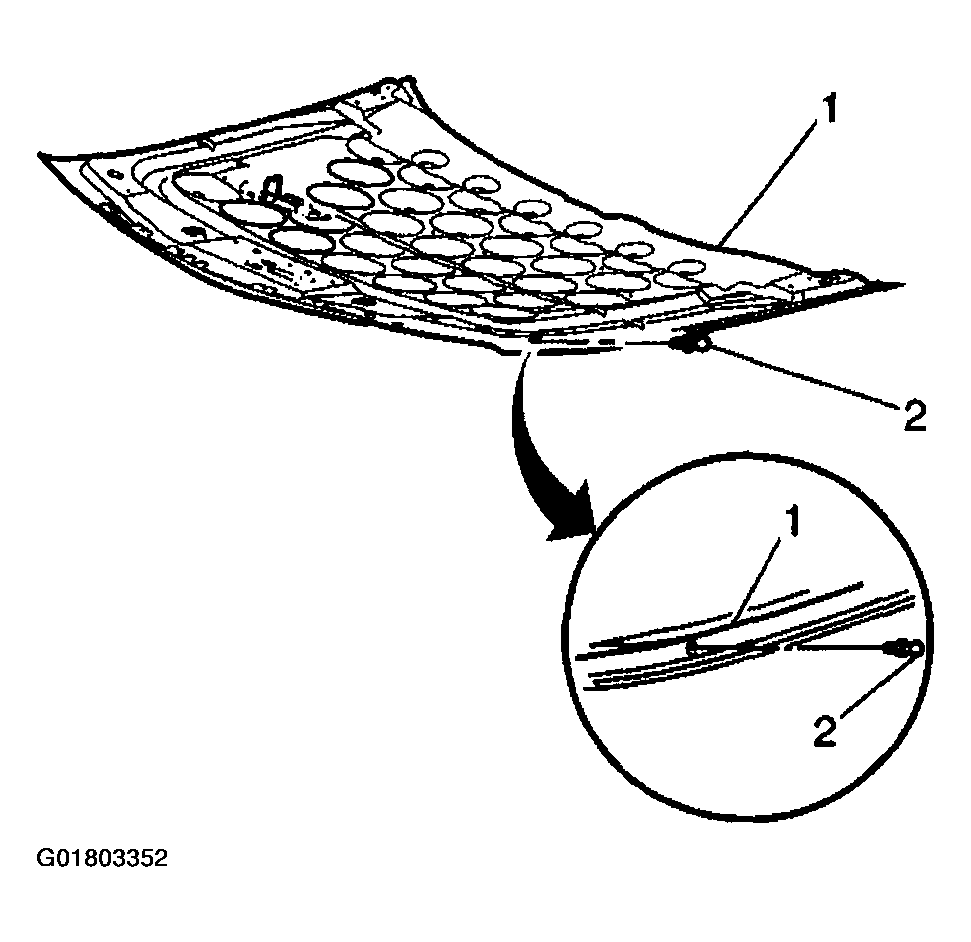

- Install the upper hood assist rod ball stud (2) to the hood (1).
Tighten
Tighten the upper hood assist rod ball stud (2) to 9 N.m (80 in lbs).
- Press the hood assist rod onto the upper hood assist rod ball stud (2).
- Ensure that the clip is fully seated on the hood assist rod.

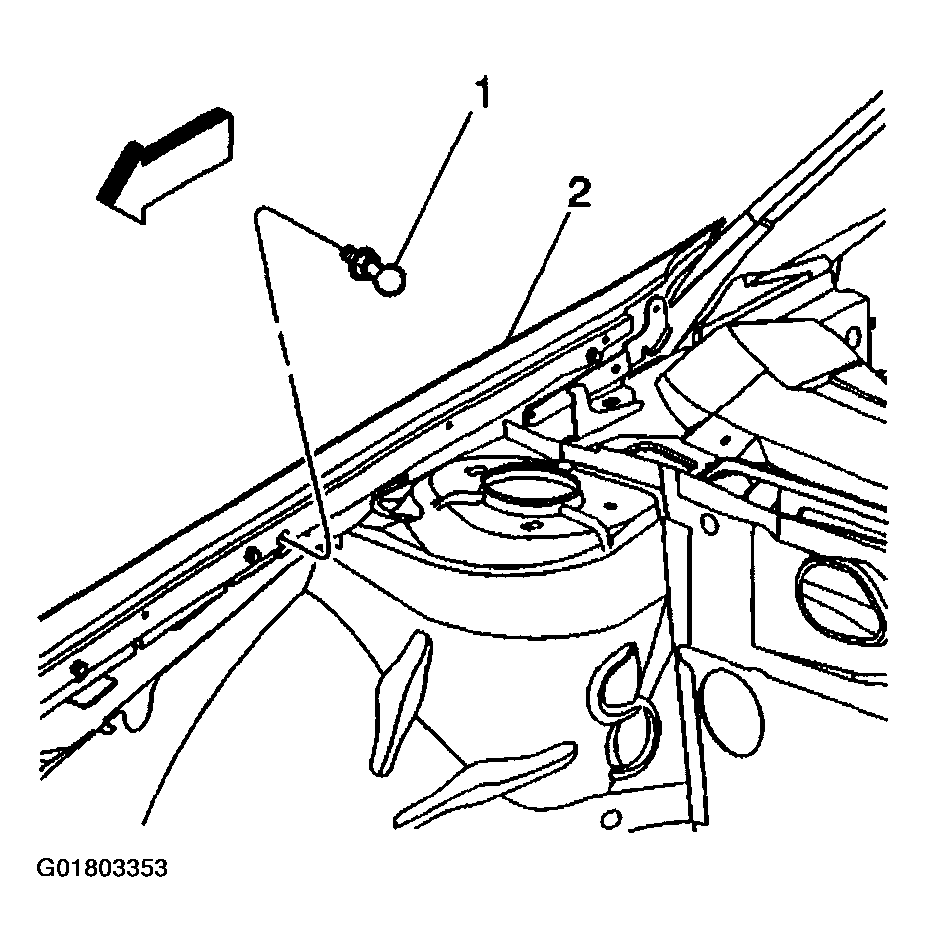

- Install the lower hood assist rod ball stud (1) to the fender (2).
Tighten
Tighten the lower hood assist rod ball stud (1) to 9 N.m (80 in lbs).
- Press the hood assist rod onto the lower hood assist rod ball stud (1).
- Ensure that the clip is fully seated on the hood assist rod.
- Close the hood.
